RCT-DSK817: Dual-rail, rack-mount LCD KVM console drawer
with an integrated 8-port PS/2 KVM switch

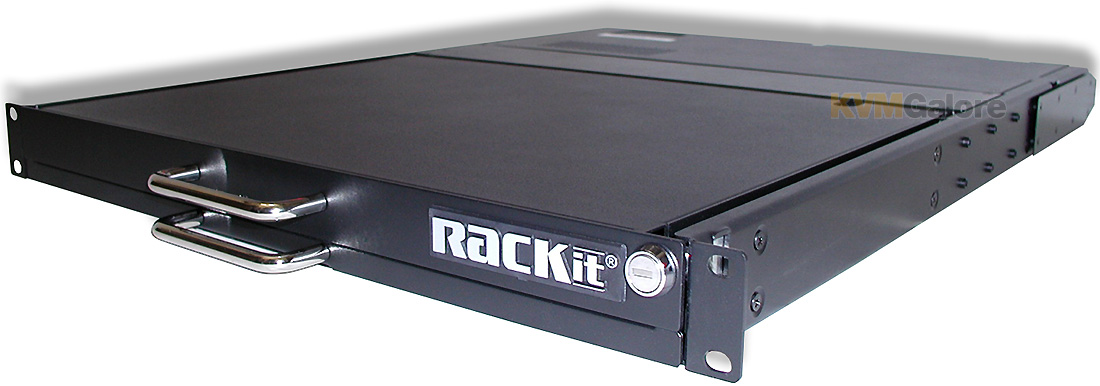

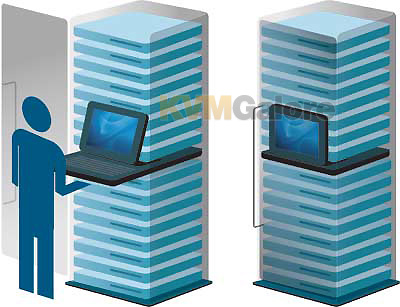

Using only 1U of EIA rack space (1.75" high), Sylphit-Duo-PS2 KVM console drawer is designed for space-saving 19-inch rack-mount applications that require little keyboard/mouse interaction, allowing flush-with-the-rack video monitoring, without protruding out of the rack.
Sylphit-Duo-PS2 KVM console drawer features a separate slide-out drawer for the keyboard and mouse, allowing to have the display folded up an visible while the keyboard/mouse is "tucked in", occupying virtually no aisle space in front of the rack.

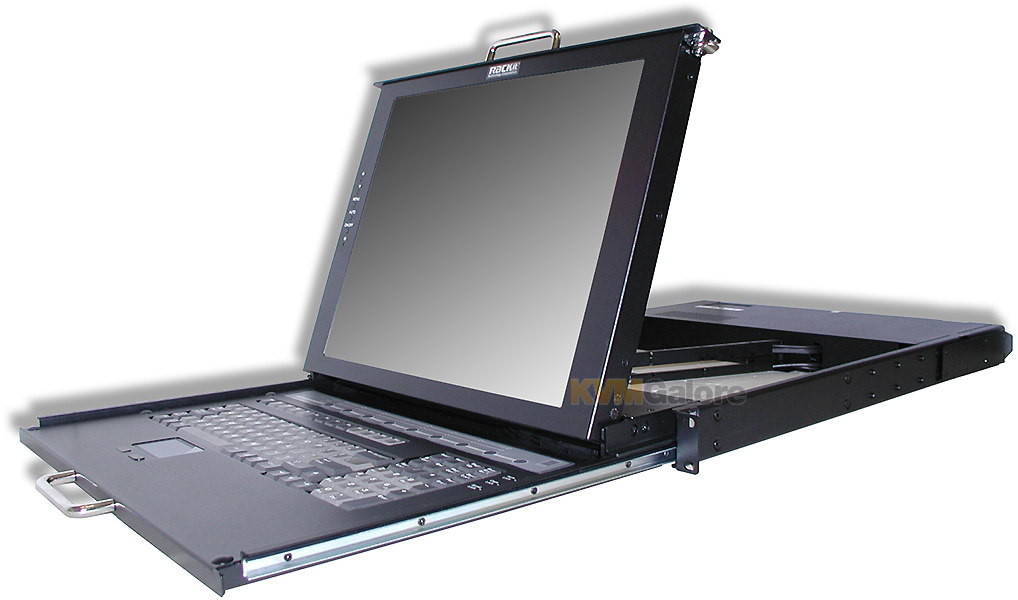

Each with their own dedicated pulling handle, both the display and the keyboard/mouse drawers can be pulled out separately. Pull out the (lower) keyboard/mouse drawer, and the display drawer slides out open with it. Pull out the display drawer, and the keyboard/mouse drawer remains in place.
Additionally, Sylphit-Duo-PS2 KVM console drawer's integrated KVM switch lets administrators instantly access and control up to 8 PS/2 servers connected to the console.
Sylphit-Duo-PS2 KVM console drawer features a fully functional membrane 105-keys Windows keyboard with a dedicated numeric keypad, an integrated touch-pad pointing device, and an active TFT LCD flat-panel display – protected by anti-glare tempered glass – that can be tilted to adjust to any comfortable viewing angle.
Equipped with two sets of industrial-grade, heavy-duty slide-out rails with depth-adjustable rear mounting support, Sylphit-Duo-PS2 KVM console drawer can be mounted in any standard 19-inch 4-post rack available in the market.
Features and Benefits
• Two separate slide-out rail sets – one for the flat-panel display, and one for the keyboard/mouse and KVM controls.

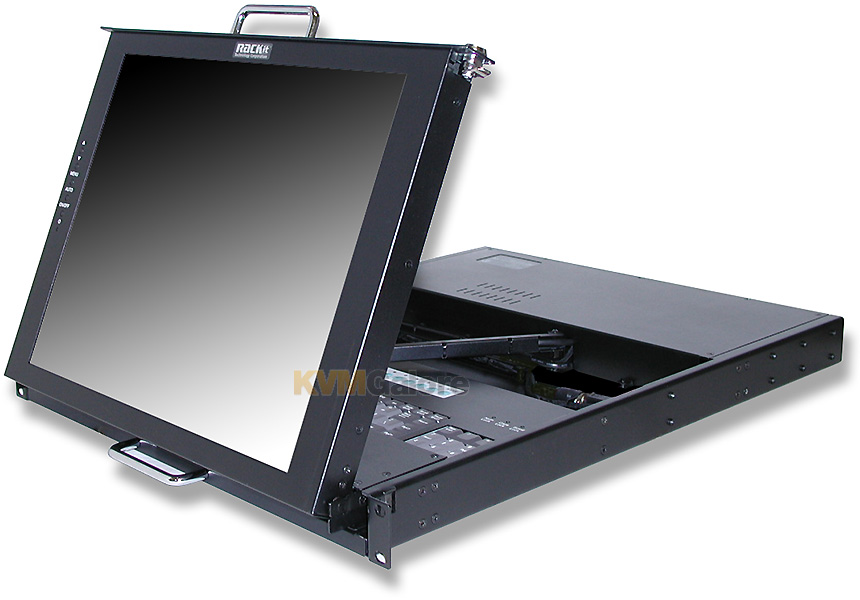

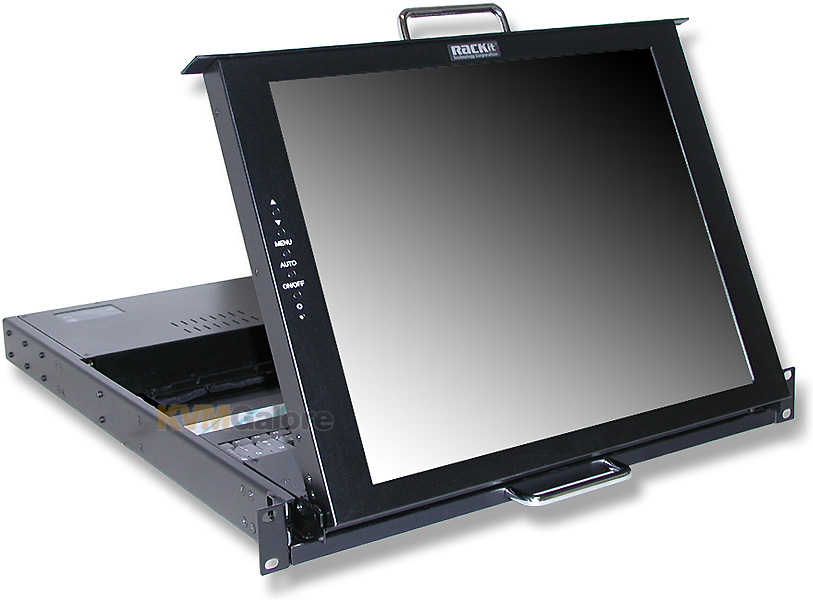

• Laptop-style tilting display can be pulled out separately, folded up for video visibility without occupying any space in front of the rack.
• Pulling out the keyboard/mouse drawer makes the display drawer slide out in conjunction.
• Only 1U (1.75" high) of 19-inch rack-mount space.
• High-brightness and high contrast-ratio active TFT LCD flat panel integrated folding display.
• 17" active TFT LCD display, 1280 x 1024 resolution.
• Anti-glare tempered glass protects the flat-panel display, adding enhanced visibility.
• Full 105-keys Windows membrane keyboard, a dedicated numeric keypad, and an integrated touch-pad pointing device.
• Adjustable rear depth mounting support, up to 40½ inches.
• Industrial-grade heavy-duty steel construction, with built-in keyed lock, securing both keyboard/mouse drawer and display drawer when folded and pushed all the way in.
1x Sylphit-Duo-PS2 KVM console drawer unit

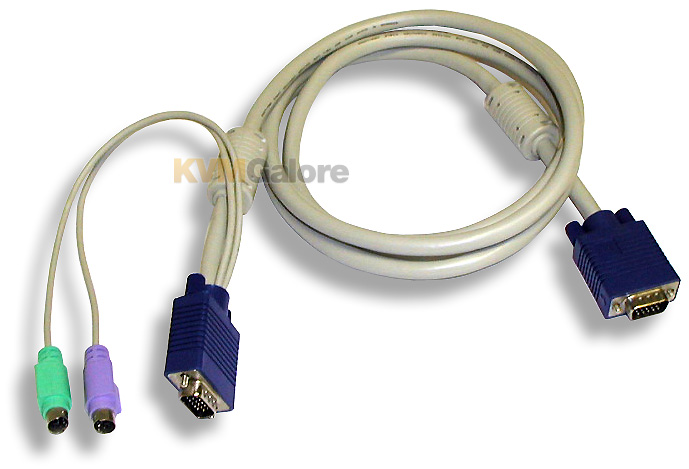

8x 3-in-one PS/2-VGA KVM cables, 6-feet
2x Rear extension mounting brackets
1x Power cord
• An [SD] product is a 100% functional product in an "As New" full working condition
• Typically an [SD] product is an unused open-box return with imperfect packaging (e.g. a torn bag; a squishes box, etc.)
• An [SD] product may bear slight scratches, packaging imperfections, and/or other minor cosmetic issues
• An [SD] product comes with a one-year manufacturer's warranty backed up by KVMGalore
• Quantities are limited and orders are filled on a first come, first served basis
• A sale of an [SD] product is final. An [SD] product is not eligible for being returned
