ST-IPHD-LC: Extend HDMI display up to 330 feet away from the source using Gigabit Ethernet
use with cascaded network switches to extend up to 1000 feet
• Extend 1080p video up to 330 ft via One CATx Cable
• Use with cascaded network switches to extend to 1000 feet
• Supports point-to-point and point-to-many connections

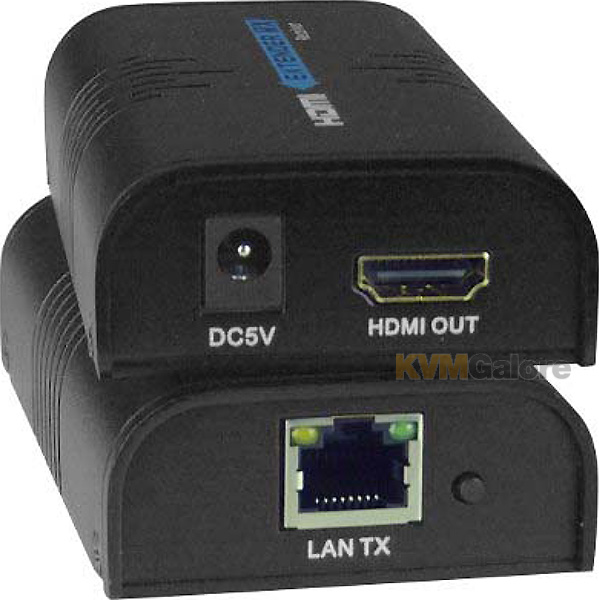

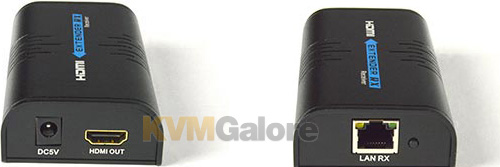

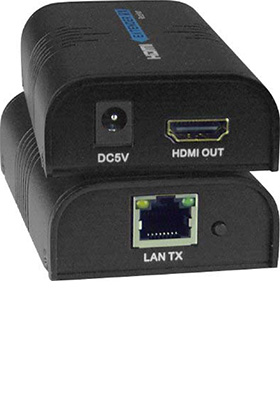

XTENDEX® Low-Cost HDMI over Gigabit IP extender multicasts digital video and audio signals to one or more receivers up to 330 feet away over a 1000BaseT Gigabit network connected with CAT-5e/6 cable. Each extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display. Use with cascaded network switches to extend up to 1000 feet. Cascade managed network switches up to 3 levels, allowing the farthest display to be located up to 1000 feet away from the source device. Each receiver can be located up to 330 feet away.

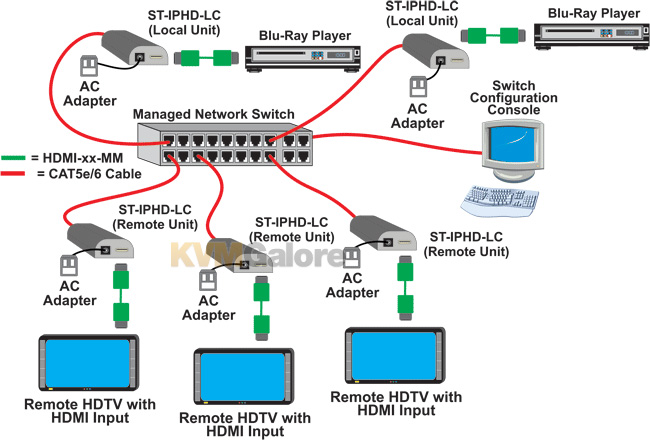

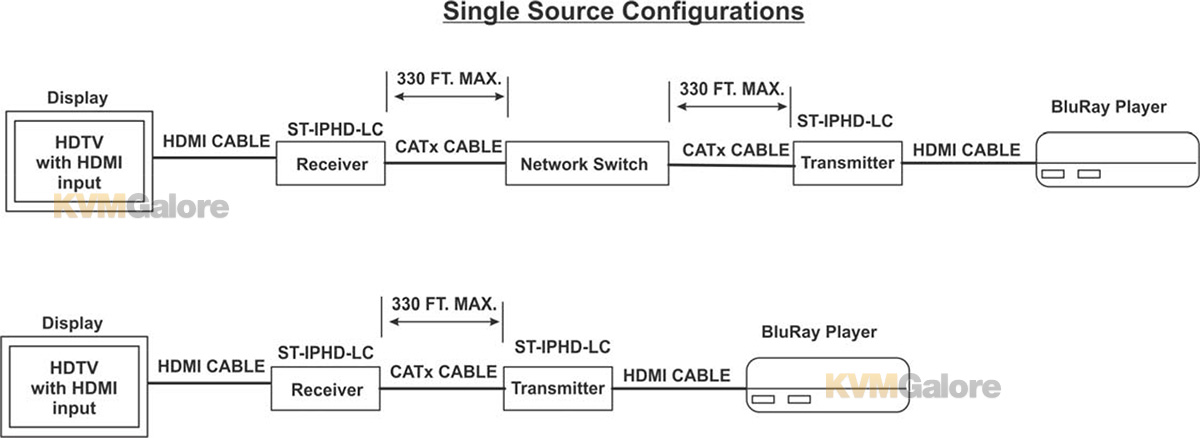

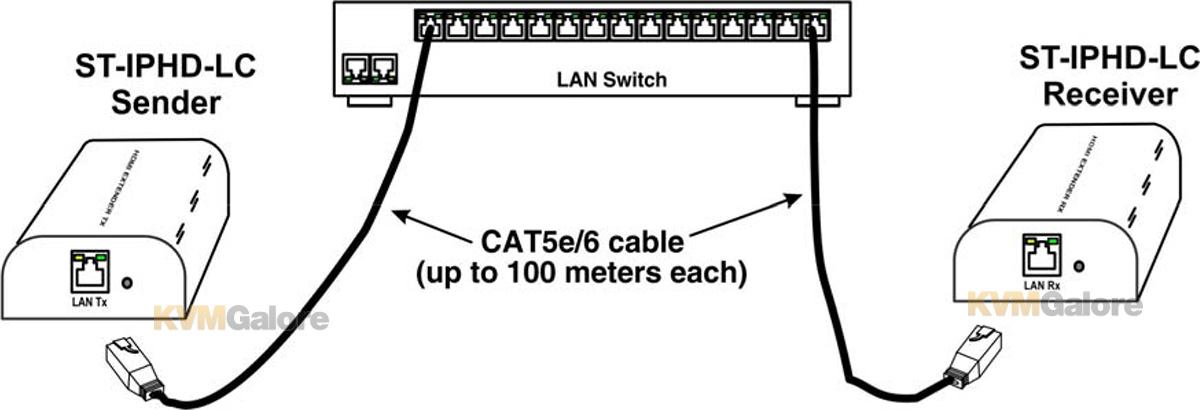

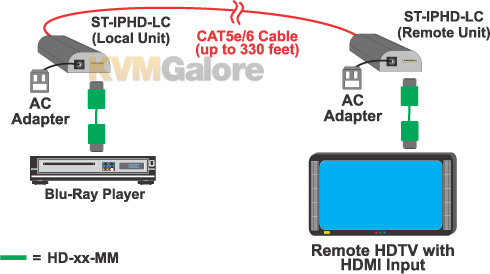

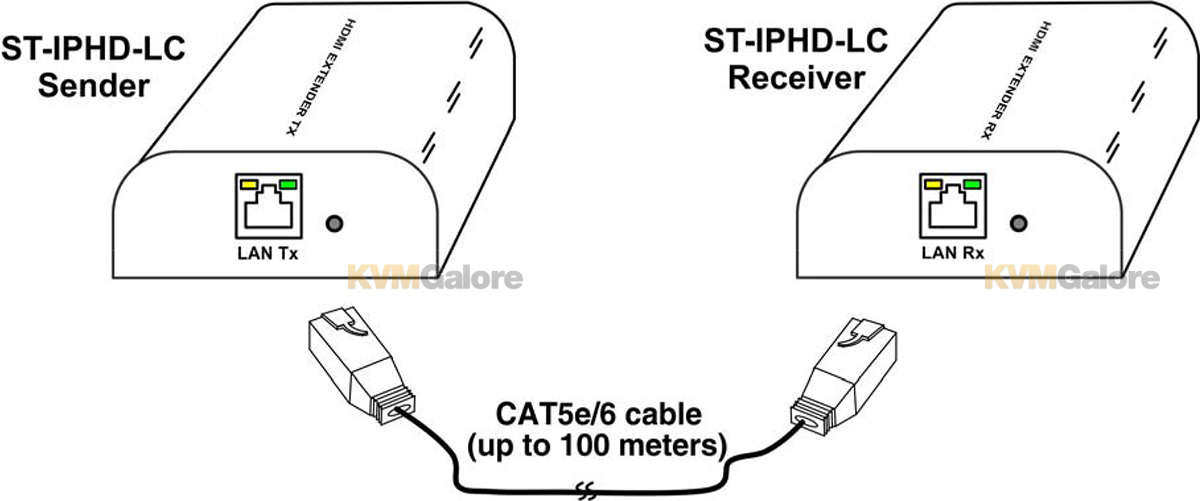

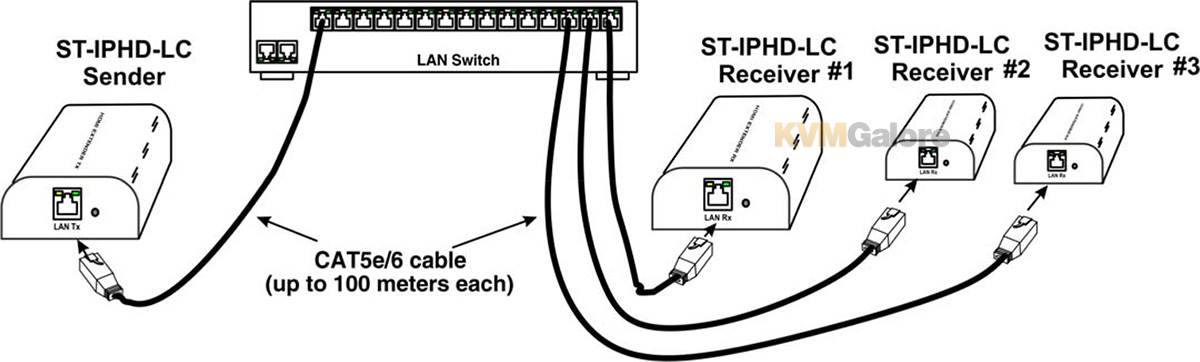

The local and remote units can be connected together for a point-to-point connection via CATx or a point-to-many connection via a network switch. Support for multiple transmitters requires a managed network switch with VLAN/IGMP support. Local and remote units must be in the same LAN. The units do not support WAN connections. Standard LAN switches can only support one transmitter.
The managed switch must support port based IEEE 802.1Q VLAN, IGMP, and permit duplicate IP addresses across the VLAN domains. Each VLAN acts as a separate HDMI Over IP Channel on the network. Number of local and remote units that can be used is dependent on the backplane bandwidth of the switch.

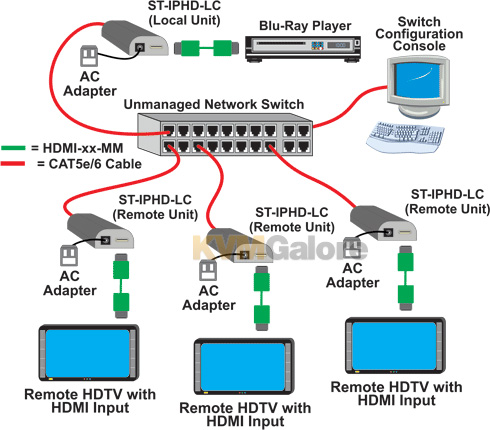

For a point-to-many connection, a standalone network with an unmanaged network switch, hub, or router can be used instead of a managed network switch.
It is not recommended to use any other network devices on this standalone network as it may cause a degradation in performance.
Uses M-JPEG technology to process image compression on a fixed bandwidth.
Features and Benefits
• Supports HDTV resolutions to 1080p
• Ideal solution for digital signage applications
• Broadcast real-time HDMI video and audio signals to multiple display locations with a managed or unmanaged (also known as non-managed) network switch
• Transmits an HDMI signal over one CAT-5e/6 cable
• Plug-and-Play installation allows receivers to find the transmitters automatically on the same subnet (network configuration may be required for managed network switch)
• Web interface for changing IP addresses, firmware updates and resetting units to factory default settings
• Easily expandable - add remote units as you add monitors
• Inexpensive CAT-5e/6 cable replaces bulky video cables
• Supports 10/100/1000 Ethernet connection
• Built in default EDID table
• HDCP compliant
• Warranty: Two years
Note: At high resolutions, characters on PCs get noticeably fuzzy due to image compression and decompression process
