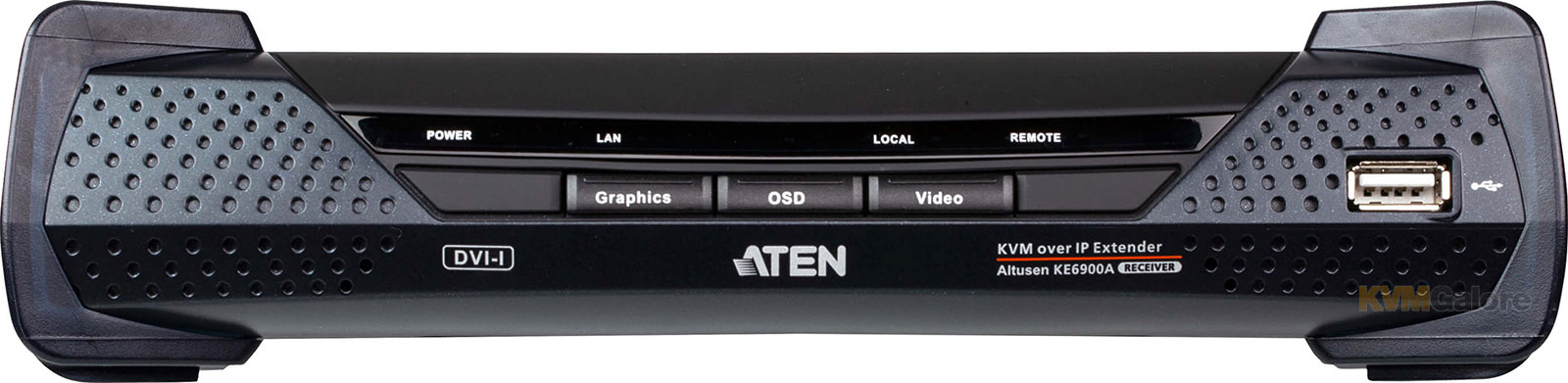

Image 1 of 5 - KE6900AR, front view. view

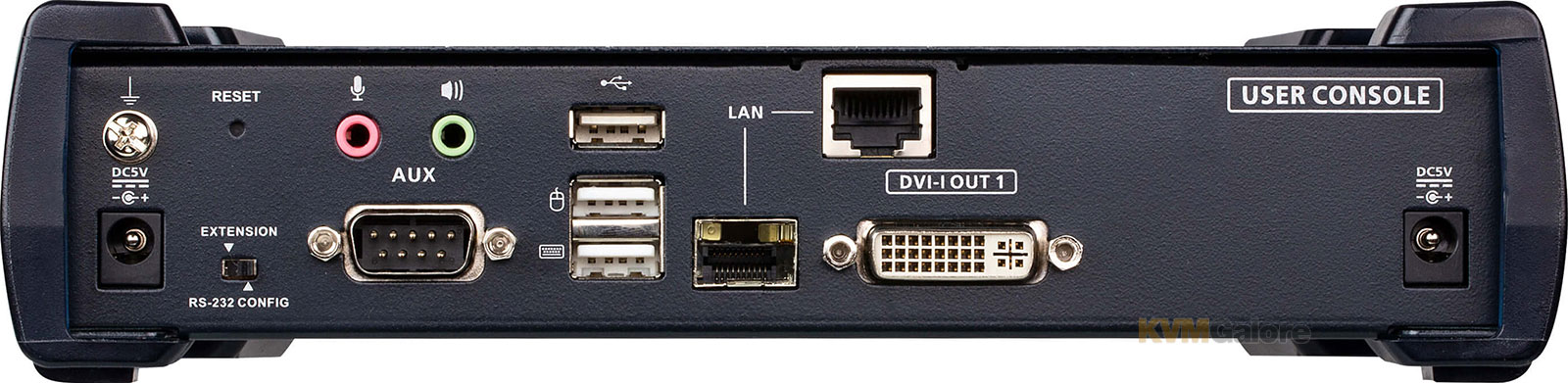

Image 2 of 5 - KE6900AR, back view. view

Image 3 of 5 view
Image 4 of 5 view

Image 5 of 5 view

KE6900AR

Model No. KE6900AR In stock

KE6900AR
Buy this item and earn 1,229 ClubPoints.

DVI (and VGA) KVM over IP receiver

Note: Transmitter units are purchased separately

• Supports 1Gbps SFP fiber module expansions up to 6.2 miles (10 km)
• Supports power/network failover
• Superior video quality – up to 1920x1200 @ 60 Hz; 24-bit color depth
• Supports digital (DVI) or analog (VGA) video output

Utilizing expertise in over IP KVM solutions, KE6900A series is an IP based DVI KVM Extender that allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DVI monitor) anywhere over an intranet.

KE6900A extender is consisted of a high performance IP-based transmitter (KE6900AT) that connects to the computer and a receiver (KE6900AR) that provides console access from a separate location. KE6900A allows extended access of computer systems remotely via USB consoles (USB keyboard, USB mouse, DVI monitor) over intranet, enabling users to place the computer system in secure and temperature controlled environments, which maybe isolated from users' workstation.

KE6900A DVI-I single display KVM over IP extender supports one DVI display at each end and provides lossless and low latency video transmissions up to 1920x1200 @ 60Hz.

ATEN 3-Year Warranty

KE6900A supports connections via an RJ-45 port or a SFP slot. The transmitter and receiver can be connected either directly to each other, or via a high-speed network over a copper-based or fiber-based LAN. Connecting via the SFP slot with 1Gbps SFP fiber module* expansions on fiber optic network, you can extend transmission distances up to 6.2 miles (10 km). KE6900A also features dual power supplies for redundancy to ensure dependable services.

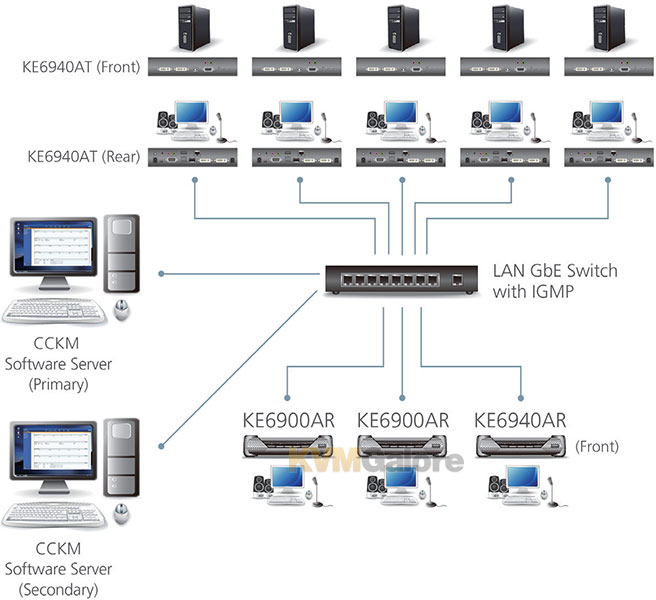

As an IP-based matrix extender, KE6900A can be used as a point-to-point / point-to-multipoint / multipoint-to-point extender, or integrated into a KVM over IP matrix system (multipoint-to-multipoint) when combined with the KE Matrix Management Software (CCKM), providing more flexible applications in different working environments.

As a matrix extender it can connect single/multiple (computers-to-consoles) in several ways:
• One-to-one (Extender mode)
• One-to-many (Splitter mode)
• Many-to-one (Switch mode), or
• Many-to-many (Matrix mode)

Implementing the KE Matrix Management software (CCKM) with KE6900A, IT administrators can benefit from advanced features such as auto detection of all KE6900A devices on the same subnet for the sake of fast installation or configuration, username/password authentication and authorization, and the ability to define different types of connections that can be switched and shared.

KE Matrix Manager® software provides advanced features for username/password authentication, autodetection of all KE6900A devices on the same subnet and define connections that can be switched and shared. New security features also provide extra protection, supporting AES-128bits encryption for secured data transmission, while RADIUS, LDAP, AD or remote user authentication provides added layer of connection security.

Download KE Matrix Manager® Lite (supporting up to 8 end-points) for FREE!

Security features also provide extra protection, supporting AES-128bits encryption for secured data transmissions, while RADIUS, LDAP, AD or remote user authentication provides an added layer of connection security.

Moreover, with an OSD, RS-232 support, and Auto MDIX, KE6900A is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.

KE6900AOver IP

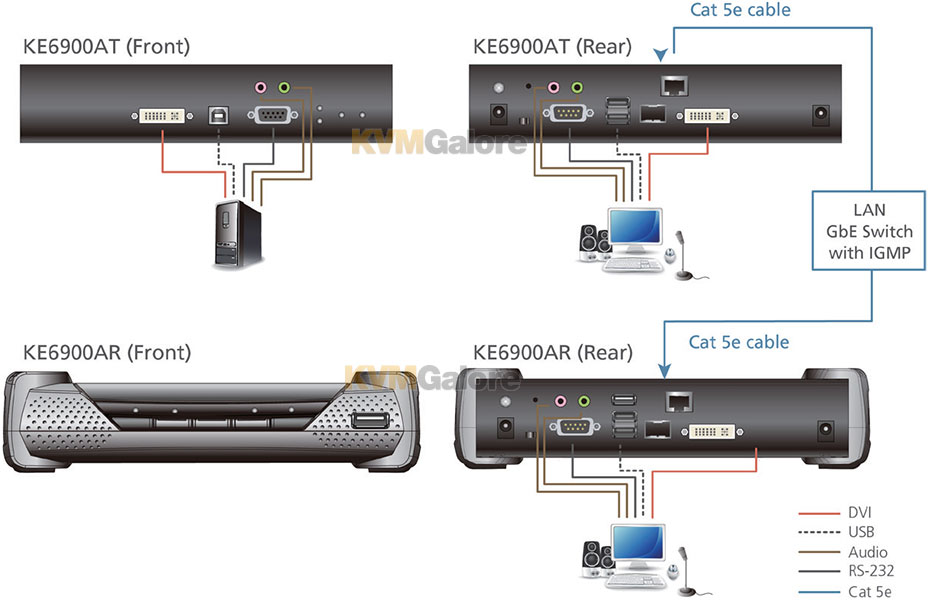

Extend a computer's KVM console any distance over a LAN by connecting the Tx and Rx units to your network. Extend a computer's KVM console up to 328 feet (100 m) by directly connecting the Tx and Rx units with a single CAT-5e/6 cable. Standard IP protocols ensure maximum compatibility with your existing IT infrastructure and staff skill set.

Redundancy
KE6900A supports connection via Gigabit Ethernet port (RJ-45) and SFP port for failover or for dual IP addresses access. Moreover, KE6900A supports dual power for redundant power supply.

SFP Module
KE6900A supports 1Gbps SFP* fiber module expansions, enabling connections with network switch allowing either an optical fiber channel SFP module or active copper SFP module. The single-mode SFP module provides 1GbE connectivity up to 6.2 miles (10 km) while the multi-mode SFP module provides 1GbE connectivity up to 1800 feet (550 m).

Unprecedented Video Quality
ATEN's advanced graphics processor delivers video that ensures you to experience the same vivid and sharp image quality on the remote monitor no matter how far away the console is located.

Advanced Management System
The KE Matrix Management software (CCKM) allows you to easily administer all KE devices over a network, using an intuitive user-friendly web based GUI.

Boundless Switching**
Simply move the mouse cursor across screen boundaries to switch between different receivers. The function expedites the process of switching between receivers for a smooth and hassle-free user experience and enables immediate monitoring and management of receivers.

Flexibility
The KE extender allows you to access, share, and switch full control of Tx connected computers - from any Rx (KVM console) on the network. Flexibly allows One-to-One, One-to-Many, Many-to-One, or Many-to-Many computer to KVM console connections.

Enhanced Security Features
Compliant with universal enterprise grade security standards (AES encryption to secure Video/Keyboard/Mouse/Data transmission and Transport Layer Security (TLS) protocol), the KE extender provides different levels of username / password authentication and authorization.

Hardware
• Supports power/network failover – dual DC jacks for power redundancy and 1 RJ45 & 1 SFP fiber ports for network failover to ensure constant availability for mission-critical applications
• Supports 1Gbps SFP fiber module expansions* up to 6.2 miles (10 km)
• Advance processor provides lossless and low latency video transmissions up to 1920x1200 @ 60Hz
• Supports digital (DVI) or analog (VGA) video output****
• Audio Enabled – supports stereo speakers and microphone
• High speed Virtual Media Support
• Auto-MDIX – automatically detects cable type
• Built-in 8KV/15KV ESD protection and 2KV surge protection
• Fanless design for silent operations that are energy efficient
• Includes an industrial-grade power adapter – supports operating temperature of 0C- 50C to ensure durability and adaptability under harsh environmental conditions

Mounting options
• 2X-021G Dual Rack Mount Kit
• 2X-031G Single Rack Mount Kit

Management
• Local console – flexible local or over IP console access
• EDID Expert™ – selects optimum EDID settings for smooth power-up and highest quality display
• Four selectable access modes for multiple simultaneous access (Exclusive/Occupy/Share/ View only mode) – administrators can select access modes of permissions on Tx devices to boost collaboration or to avoid interference among users
• On-screen Preview – allows users to view the video of up to 36 displays on one screen
• Fast Switching – switches between different remote video resolutions on a local display within 0.3 seconds
• Command Line Interface – administrators can control all KE devices via RS-232 or TCP/IP using a CLI or 3rd party application
• Supports Hotkey Commands
• Flashing LED and beeping feature help locate and identify devices

Security
• Dedicated LAN port for KE direct connections – can be isolated from the corporate network
• Secure data transmission – AES 128-bit encryption to secure all data before transmitted over a network and decrypts the data on the receiver
• Supports industry standard Transport Layer Security (TLS) protocol

Virtual Media
• Virtual media enables file transfers, OS patching, software installations and diagnostic testing
• Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
• Supports Smart Card/CAC Reader

Advanced Features**
• Boundless Switching - simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
• "Push" and "Pull" – shares content instantly to/from a single Rx or video wall by just one click
• Video Walls – create multiple video walls with up to 8 x 8 (64 displays max.) in each layout
• Advanced Scheduling – improves efficiency and saves costs by allowing connections to be set based on time and date
• Virtual Transmitter – independently streams video, audio, USB, and serial sources from different Tx
• Internal and external authentication support – supports LDAP, Active Directory, RADIUS and TACACS+ external authentications
• Configurable user and group permissions for access and control of KE devices
• Rx access control – users at the Tx local console can enable / disable Rx access by simply pressing a control button***

Features and Benefits
• Remotely access computers on your KVM installation via intranet
• Dual console operation – control your system from both the transmitter and receiver USB keyboard, monitor, and mouse consoles
• RS-232 serial ports – allows you to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners
• Superior video quality – up to 1920x1200 @ 60 Hz; 24-bit color depth
• Supports standard VGA resolutions from 640x480 to 1920x1200 at 60Hz
• OSD (On Screen Display) on the Receiver configures both units
• Supports AP GUI operation
• Remote login security
• DVI digital and analog monitor support
• Built-in 8KV/15KV ESD protection and 2KV surge protection
• Supports stereo speakers and stereo microphone
• Auto-MDIX - automatically detects cable type
• Supports widescreen formats
• Supports high-quality video streaming
• Virtual media support
• Hot pluggable
• Rack Mountable
• Upgradeable firmware

Package Contents
1x KE6900AR DVI-I Single Display KVM over IP Receiver
1x Power Adapter and Power Cord
1x User Instruction

* SFP modules (2A-136G / 2A-137G) are sold separately - see listing below
** These advanced functions are supported when the KE transmitters are paired with KE receivers and managed by KE Matrix Management software (CCKM)
*** The KVM over IP Access Control Box (2XRT-0015G) is sold separately - see listing below
**** To convert a DVI to VGA signal, a DVI-I to VGA converter is required
