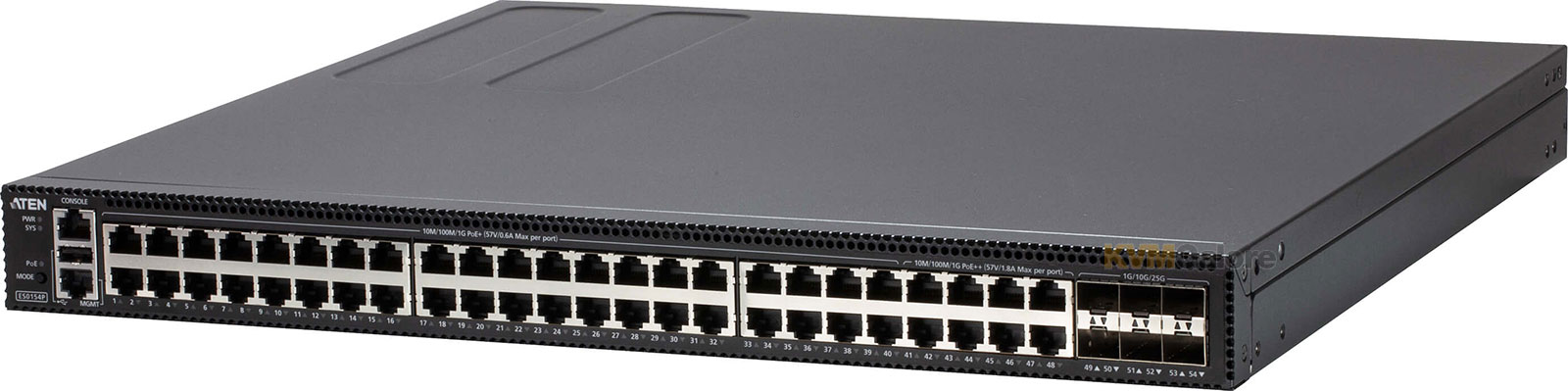

54-port layer 2+ gigabit Ethernet managed switch

with PoE, for KVM over IP products

• Supports plug-and-play with ATEN KE, and ATEN VE89 series devices
• Supports 48 Gigabit Ethernet ports and 6 SFP28 uplink ports (up to 25Gbps)
• High-performance Gigabit Ethernet L2+ access switch with 396 Gbps switching capacity – significantly improve the responsiveness of applications and file transfer times
• Supports IGMP v1/v2/v3 Snooping and IGMP v1/v2 Querier
• 802.3af PoE / 802.3at PoE+ / 802.3bt PoE++ (41-48 ports only) port configuration and scheduling

ES0154P 54-port Layer 2+ gigabit Ethernet managed switch is ideal for installation with ATEN KVM over IP products. It simplifies the process of building OT infrastructure with the ATEN KVM over IP series by eliminating the complexities of setup. It provides a high-performance 54-port configuration, a complete array of L2+ features, and advanced functionalities including Layer 3 static route, DHCP server, IPv6 support, and LLDP, making it a versatile solution for enhancing network performance. It offers a combination of SFP28 (fiber) and RJ-45 (copper) ports for servicing a range of network needs.

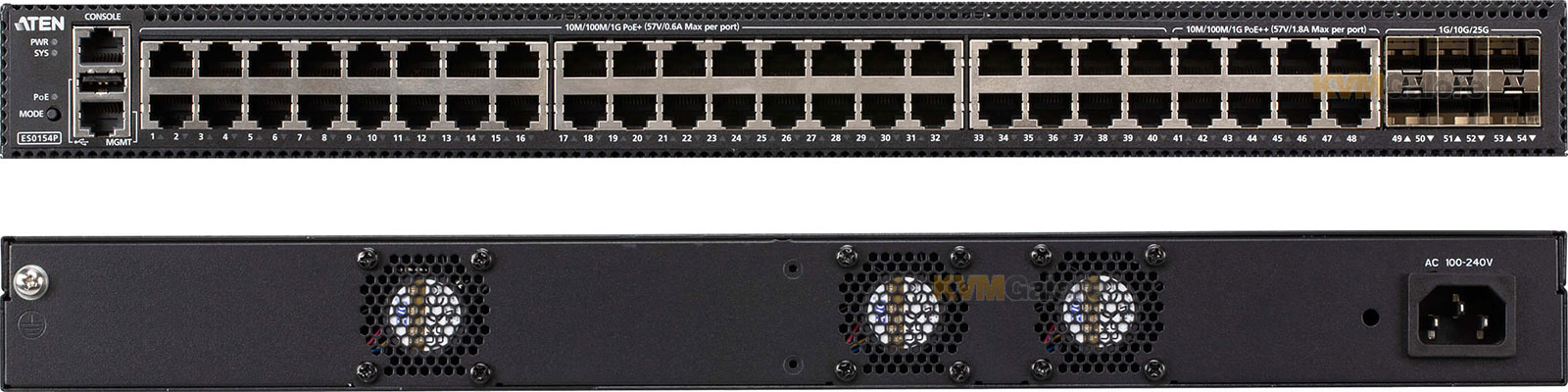

ES0154P supports 6 (1G/10G/25G) SFP28, 48 (10M/100M/1G) RJ-45 with PoE+ (support 802.3at/af) ports, and PoE++ (support 802.3bt) ports (41-48 ports only). ES0154P is equipped with power over Ethernet (PoE) functionality, featuring a substantial 740 Watts power budget distributed across its 48 RJ-45 ports. This eliminates the necessity for external power adapters and leads to a substantial reduction in power configuration expenses.

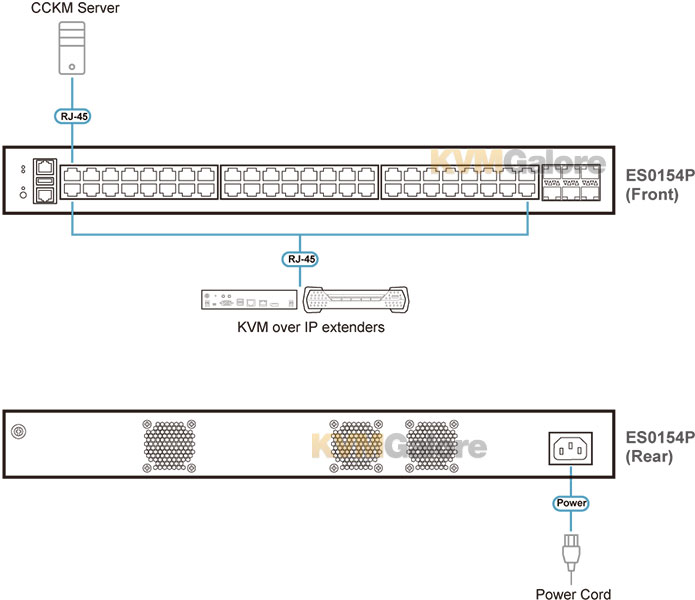

Deploying ES0154P is quick and hassle-free. Its plug-and-play design eliminates the need for software installation or device configuration. Just connect the transmitters and receivers to ES0154P using Cat 5e/6 cables. With a full range of functions to help with optimizing network efficiency, manageability and reliability for their network environment, ES0154P serves as an ideal network switch solution. It is particularly valuable in applications where connected devices play a critical role in network operation, including OT infrastructure for both SMBs and enterprises.

More Features and Benefits
• Supports IGMP Snooping Fast Leave
• Supports Flow Control
• Comprehensive QoS – allowing the marking, classification, and scheduling of up to four traffic types across the network
• Enhanced Security – Port Security limits the total number of devices using a switch port and protects against MAC flooding attacks
• Supports IEEE 802.1w Rapid Spanning Tree Protocol – ensuring a faster recovery from failed links and enhancing overall network stability and reliability
• Supports IPv4, IPv6

Package Contents
1x ES0154P
1x Power cord
1x RJ-45 to DB-9 serial console cable
1x Grounding wire
6x Port dust covers
1x Mounting kit
