SP2+P-LCD: Pro LCD environmental monitoring appliance

with PoE*, 4x sensor-ports for external sensors, 1x dry-contact I/O port and 1x UART modem port

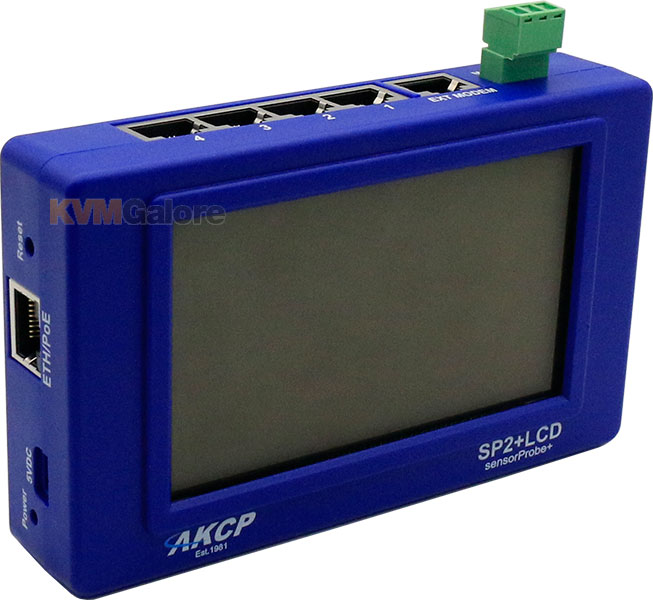

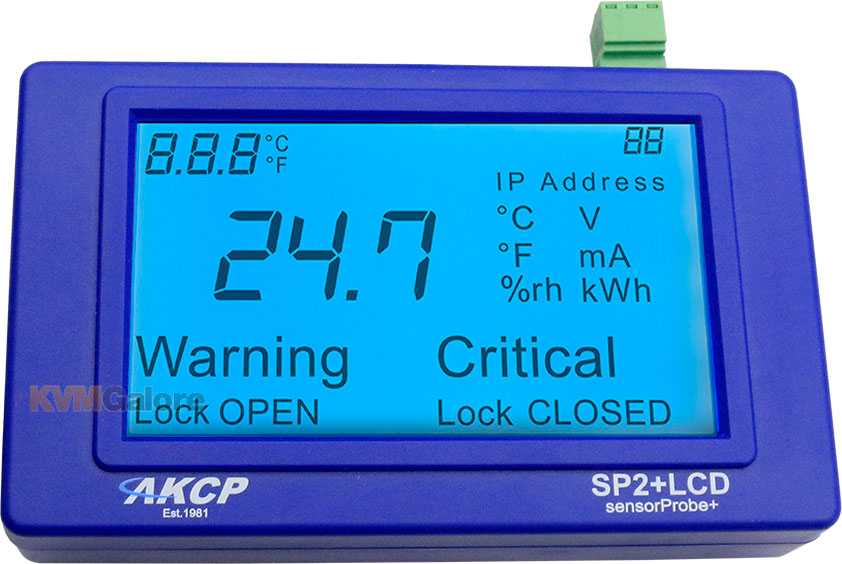

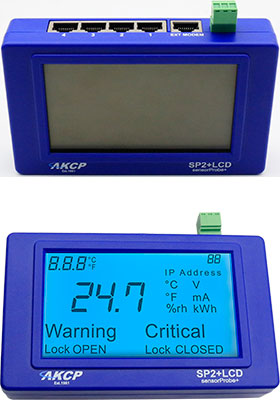

sensorProbe2+ LCD Pro is a compact environmental monitoring appliance that comes with a built-in LCD display to show data from connected sensors, and with PoE* included as standard.

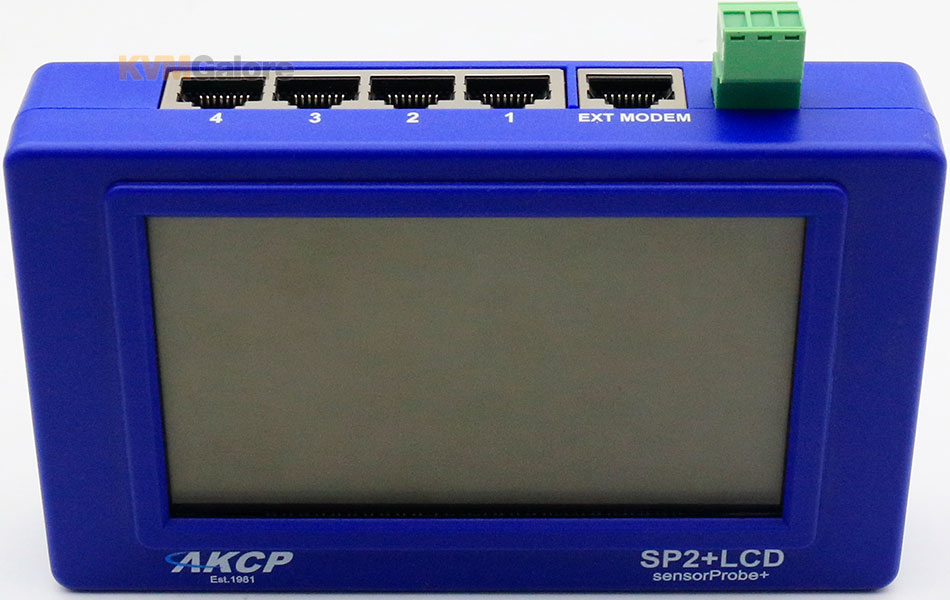

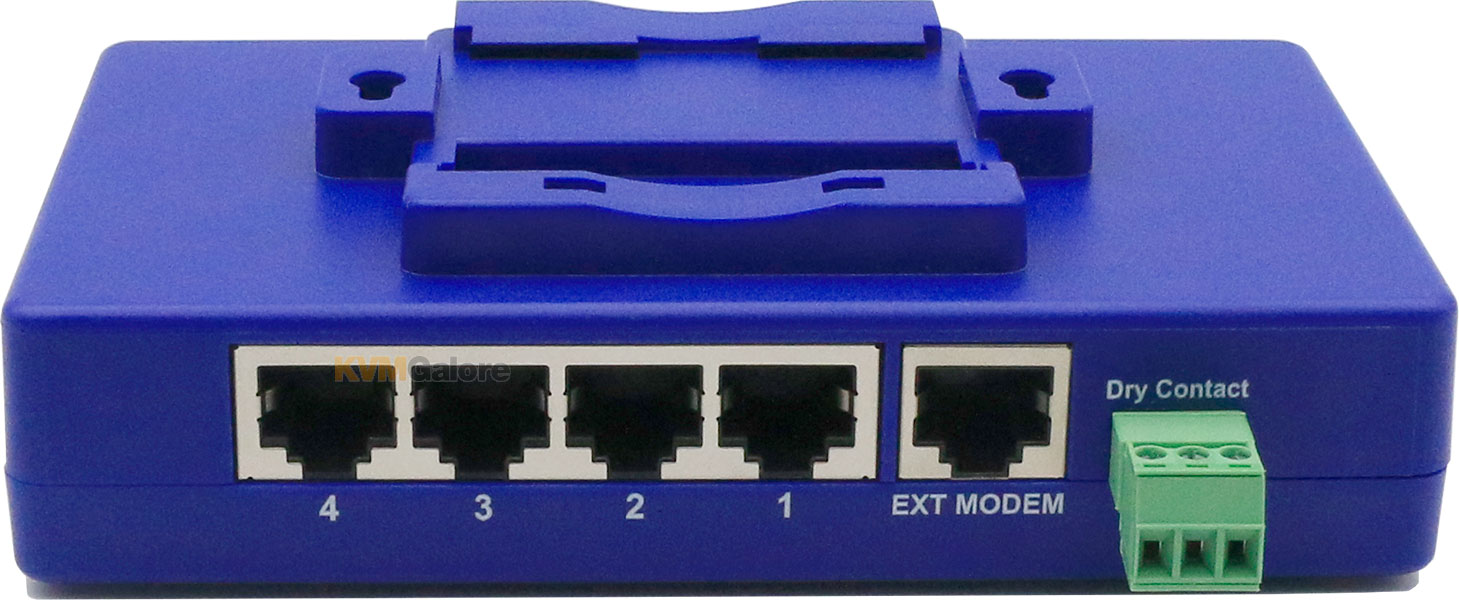

sensorProbe2+ LCD Pro comes equipped with 4x intelligent sensor ports to connect a wide range of AKCP sensors, along with 1x dry-contact I/O port.

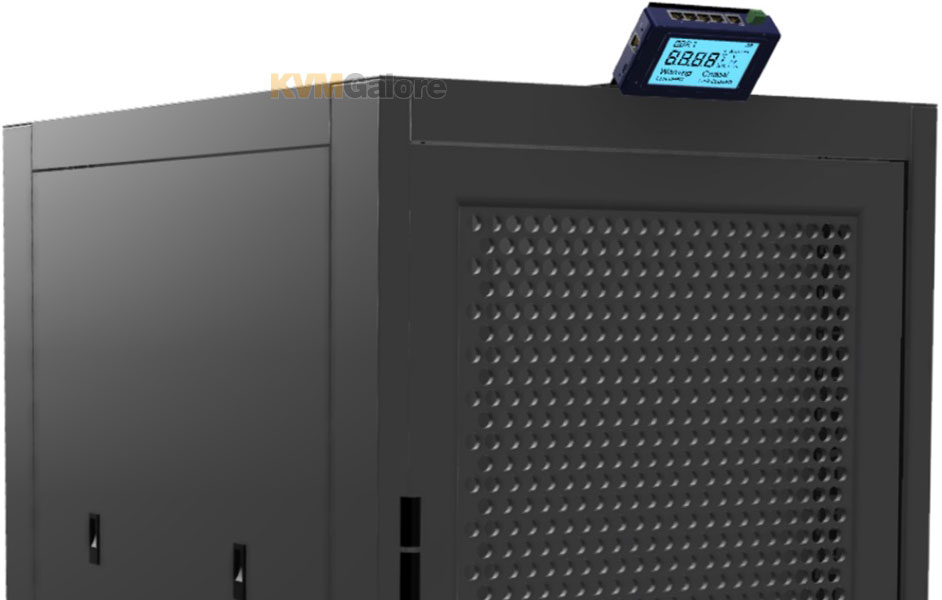

sensorProbe2+ LCD Pro allows you to connect external AKCP sensors such as temperature sensor, thermal map or water leak detection to its intelligent sensor ports. You may also connect the sensor splitter box with cabinet thermal maps and contactless current meter, and you have a complete monitoring solution for your rack.

sensorProbe2+ LCD Pro runs the same user interface as the rest of the sensorProbe+ product line, with all the same features such as IPv6, SNMP v3, Modbus TCP/IP, and up to 80 virtual sensors.

sensorProbe2+ LCD Pro can be powered via dual AC or DC inputs, providing redundancy for powering the device. The 12-24VDC or 48-60VDC external power supplies feature dual DC inputs with a single 5VDC output for powering the sensorProbe2+ LCD Pro. Ideal for telecoms applications where DC power comes straight into the cabinets, or in a data center with dual PDUs. Utilize 2x 12VDC power adapters, one on each AC power source, connect them to the DCW024-5 with the output to the DC jack on the sensorProbe2+ LCD Pro. This can function as a redundant power source. Should the mainline power fail the sensorProbe2+ LCD Pro will switch to using the PoE as an alternative power source to the DC jack input.

Options (purchased separately - see listing below) may include:
• 4G Modem - External cellular data modem plugs into dedicated UART modem port
• External Power Adapter - Power the unit with external AC power supply, or use as a redundant power source with PoE
• 5 Dry-Contact Ports via Sensor Port - Add 5 dry contacts to an RJ45 sensor port
• Dry-Contact Cables - Connect an I/O dry-contact to an RJ45 sensor port
• EXP - Port that is compatible with CCU, E-Opto16 and E-Sensor8 expansion units, as well as doubling as a Modbus RS485 port for monitoring a generator, or other industrial equipment

sensorProbe2+ Pro offers password-protected access to its web-enabled user interface, with distinguished access-privileges for a User to view data, and for an Administrator to view data, edit thresholds and setup network settings.

sensorProbe2+ LCD Pro is manufactured using highly integrated, low power surface mount technology to ensure long term reliability.

Package Includes
1x sensorProbe2+ LCD Pro with 4x activated intelligent sensor ports


Need help? Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.

* No power supply (PSU) is included - a power supply may optionally be purchased separately (see listing below)
