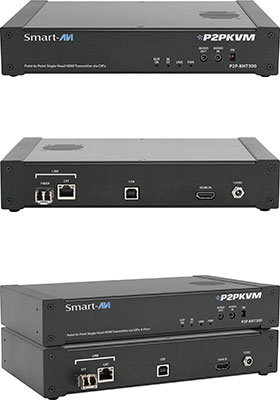

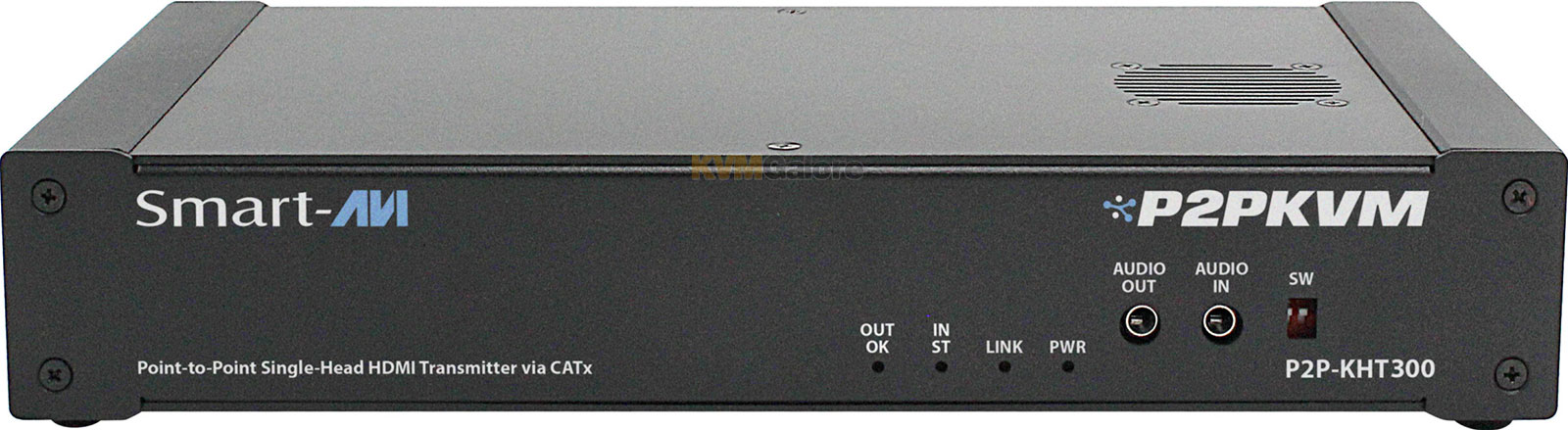

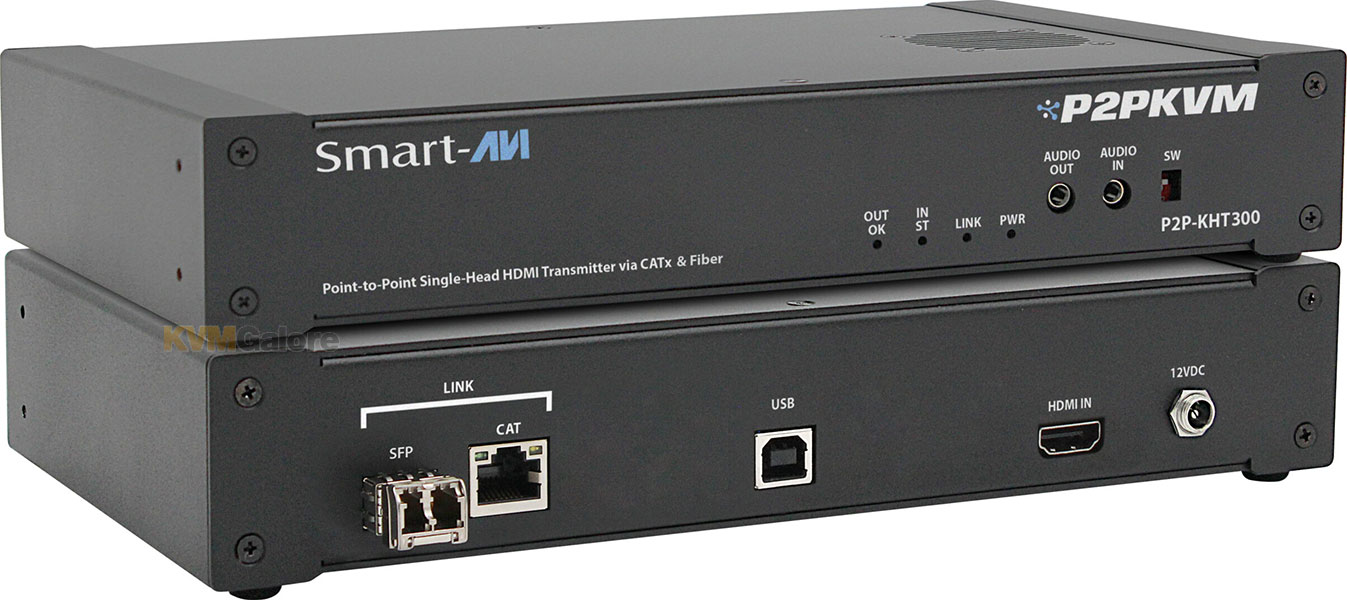

P2P-KHT300: Single-head, HDMI, fiber-optic or CATx over-IP transmitter

with USB 2.0 and audio support for point-to-point extension, KVM switching and stand-alone or managed matrix KVM switching over an Ethernet network

Note: Receiver units are purchased separately

P2P-KHT300 Transmitter, along with an accompanying Receiver unit, extends your HDMI-based workstation's console point-point or over an IP network (via a 1Gb Ethernet switch) up to 328 feet (100 m) per segment using CATx, up to 1640 feet (500 m) per segment using MultiMode fiber, or up to 6.2 miles (10 km) using SingleMode fiber.

Supporting flexible Direct, Matrix, and SaviGate modes, P2P-KHT300 adapts to your installation needs – from simple point-to-point extensions to full multi-user managed environments – over fiber-optic or CATx.

High-Performance KVM-over-IP Extennsion and Matrix-Switching Solution
Experience seamless, real-time remote access with the P2P-KVM series, a high-performance KVM-over-IP extender and matrix solution.

The P2P-KVM series is a plug-and-play IP KVM solution delivering 4K video, USB, and audio control over a standard 1Gb Ethernet network with flexible extension and switching modes.

Designed for mission-critical environments, it delivers ultra-low latency, high-resolution video, and secure connectivity over IP networks, ensuring efficient system control and flexibility.

SmartAVI's P2P-KVM series is a high-performance, IP-based KVM platform designed to scale effortlessly from simple point-to-point control to fully matrixed KVM environments.

Supporting up to 64 servers and 8 users out of the box, the system expands to an enterprise-class 256-server / 32-user matrix when integrated with the SaviGate P2PManager controller (purchased separately - see listing below), delivering exceptional flexibility for control rooms, data centers, and mission-critical operations.

Features and Benefits
• Supports HDMI video up to 4K @ 30Hz, or 1080p @ 60Hz
• Transparent USB 2.0 extension for peripherals
• Analog audio
• Selectable Direct, Matrix, and Savigate modes via web interface
• Up to 6.2 miles (10 km) extension distance over SingleMode fiber
• Up to 1640 feet (500 m) extension distance over MultiMode fiber
• Up to 328 feet (100 m) extension distance over CATx
• Ultra-low latency with JPEG2000 compression
• Plug-and-play
installation
• EDID learning and
management
• Savigate controller support for centralized management (sold separately - see listing below)

Package Includes
1x P2P-KHT300 Transmitter unit
1x Power supplies [PS5VD3A-UEU]
• SFP modules are not included - see listing below for available fiber-optic SFP modules
• Cables are not included

Required Cables
1x HDMI
1x USB Type-A to Type-B
