32-port enterprise CAT-5 KVM over IP switch

supporting two concurrent users: one remote over IP and one local at the rack

EKS is an enterprise-class KVM over IP switch that provides two users (one local and one remote over IP) with BIOS level management of 32 servers in a single switch.

EKS supports servers with a wide array of video interfaces, including HDMI, DisplayPort and VGA, along with stereo digital audio up to 150 feet.

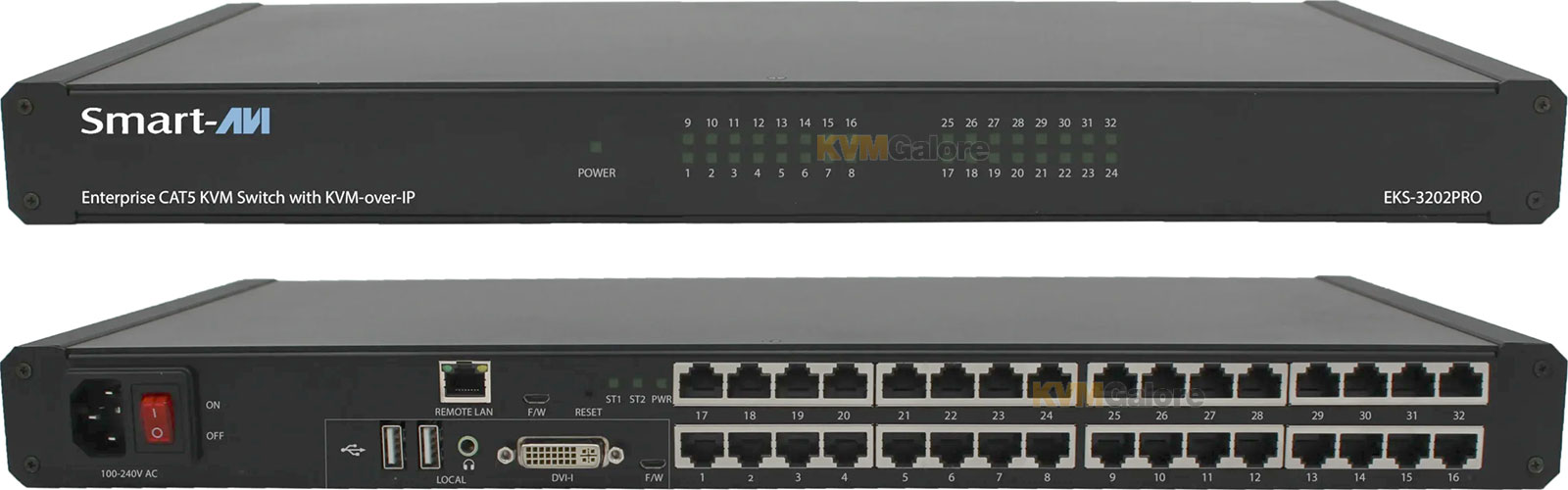

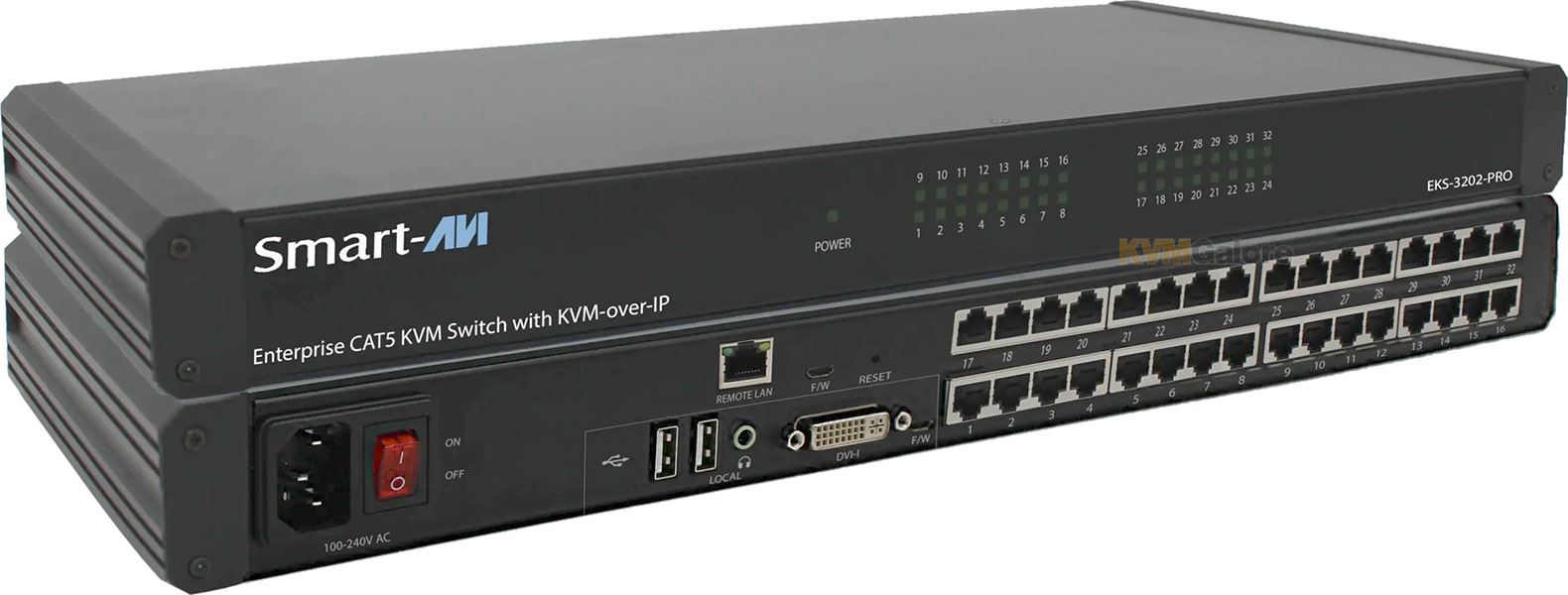

EKS-3202-Pro enables one local and one remote user to access and control of up to 32 servers. These rack-mountable,1U sized switches feature KVM over CAT-5 technology that directly connects the switch to each computer in the server room, eliminating cable clutter and providing up to 150 feet of distance between server and switch.

EKS-3202-Pro has a built-in web server enabling remote users seamless access to target servers via any browser.

Feature-Rich and User-Friendly
The EKS-series stands out for its comprehensive feature set and user-centric design, making IT management more intuitive and secure:
• Effortless Configuration and Control: Hotkey functions and an on-screen display (OSD) facilitate straightforward device management and switching
• Real-Time Monitoring: Front panel LEDs and the OSD interface enable fast and easy access to connected computers, with the option to label them for quick identification
• Secure Access: Robust password security mechanisms limit access to authorized users, protecting your IT infrastructure

SmartEKS - KVM-over-IP On Your Browser
EKS-3202-Pro redefines remote server management, offering BIOS-level access from any location via SmartAVI's proprietary SmartEKS remote KVM system. This feature ensures a seamless and responsive user experience, just like being directly in front of the server. All this, straight from your browser with no need to download any software or drivers.
• No Software or Drivers Needed: Remote access to any Server connected to the KVM directly from your browser with no need to download any extra software or drivers.
• BIOS-Level Remote Access: SmartEKS enables detailed system control from anywhere, providing the flexibility and immediacy needed for critical tasks.
• Low Latency Operation: Designed to minimize delays, SmartEKS ensures efficient and comfortable remote management.
• Customizable User Experience: Tailor your remote sessions with various configuration options, aligning with specific workflow requirements.
• High-Quality Visuals: Full HD resolution support maintains visual clarity during remote operations, ensuring every detail is precisely captured.

Designed for Scalability and Performance
With its adaptable architecture, the EKS-series is built to accommodate evolving IT demands, offering scalability and high performance:
• Versatile Server Connectivity: Supports HDMI, DisplayPort, VGA and stereo digital audio connections, accommodating a wide range of server types
• Extensive Server Management: Manage up to 32 servers directly
• Expansive Control Range: Directly connect and manage up to 32 servers within 150 feet
• Future-Proof Technology: The EKS-series is firmware upgradeable and rack mountable, ready to evolve with your IT environment

Key Features
• Browser-based KVM over IP (SmartEKS) supports directly managing servers over an IP network via any browser, with no need for driver or software installations, ensuring ease of access and simplicity
• Dual-user capability supports two simultaneous users (one local and one remote over IP) and controls up to 32 servers or devices
• Choice of 3 CATx server adapters (dongles) for servers with either HDMI, DisplayPort or VGA video connections, offering broad compatibility and flexible server management
• Simplify navigation and control with an intuitive on-screen display (OSD) interface and customizable keyboard hot-keys, allowing for quick switching and easy access to connected devices
• Full keyboard/mouse and video emulation ensure continuous keyboard and mouse connectivity and maintains video integrity during switching, providing users with a seamless experience across all connected servers
• Extended connectivity enables connection of servers/PCs up to 150 feet away using standard CAT-5 cables, facilitating remote setup flexibility and expansive network configurations
• Full HD video support delivers crisp 1080p digital video output, ensuring clear and detailed visuals for efficient remote management
• Universal compatibility that seamlessly works with all operating systems, including Windows and Unix-based platforms, accommodating diverse IT infrastructures
• Local DVI-I video port supports both digital (DVI; HDMI) and analog (VGA) local monitor**

Package Includes
1x EKS-3202-Pro
2x Rack-mount ears
1x Power cord
Server adapters (dongles) are not included: See listing below for compatible server adapters (dongles)

Need help? Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.

* Digital audio from HDMI and DisplayPort connected servers is de-embbeded by the corresponding dongle into analog audio available to the local user through the 3.5mm speaker port. Audio is not available to the remote user.

** DVI-I connector supports the following video connections:
• DVI-A – No adapter required
• VGA – Via adapter, or adapter-cable
• DVI-D – No adapter required
• DVI-I – No adapter required
• HDMI – Via adapter or adapter-cable
