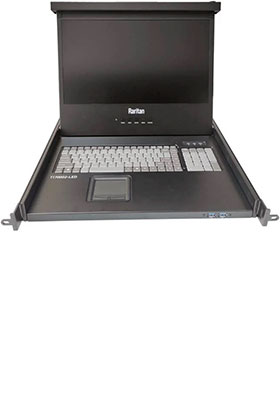

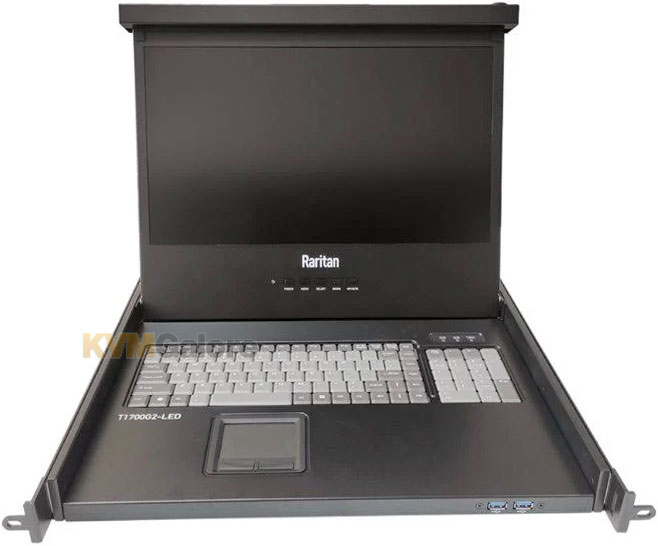

Industrial 17" LED backlit LCD KVM console drawer

DisplayPort, DVI-I and HDMI video @ 1920x1080 resolution, keyboard and touchpad, 2x USB 3.0 pass-through ports to connect external devices

• HDMI/DisplayPort/DVI and VGA video inputs for use with Dominion^® and MasterConsole^® series
• LED-backlighting provides up to 20-50% energy savings over CCFL-backlighting LCD technology
• Accurate image rendering and video performance for sharp, clear pictures
• Space saving 1U design for 85% less space
• Supports DDC, DDC2, DDC2B
• 2x USB 3.0 pass-through ports to connect external devices e.g. a smart card reader
• Auto power on/off when opening and closing the monitor below a 20-degree angle
• Support for Microsoft Windows^®, Linux^® and other operating systems

IT or lab administrators often need fast and dependable at-the-rack access to their servers for deployment, administration and maintenance activities. Raritan's T1700G2-LED console drawer, with a LED-backlit LCD display provides both energy savings and consolidated access to multiple servers from a single location.

Raritan's T1700G2-LED KVM console drawer, with LED-backlight LCD display, connects to your existing analog or digital KVM switches, and combines video, keyboard and touchpad functionality from a single workstation to manage a rack, or multiple racks of servers.

Raritan's T1700G2-LED KVM console drawer supports DisplayPort, DVI-I and HDMI video @ 1920x1080 @ 60Hz resolution, keyboard and touchpad, USB 3.0 pass-through port on front of unit for convenient, front-of-the-rack media connections, 1U rack-mount form factor for the setup, administration and maintenance of rack mount servers in data centers, server rooms and other space-critical industrial environments

With its 16:9 aspect ratio widescreen, DisplayPort, HDMI ,DVI/VGA support and energy savings, the 17 inch T1700G2-LED supports up to a 1080p, 1920x1080 @ 60Hz resolution, perfect for the administration of servers in data centers, server rooms and labs.

One Workstation for Server Access and Control
Connecting to your existing analog or digital KVM switches, Raritan's T1700G2-LED combines video, keyboard and touchpad functionality to enable the use of a single workstation to manage a rack, or multiple racks of servers. The 1U modular design includes built-in USB 3.0 port for convenient, front-of-the-rack media connections to keyboard, mouse or even smart card readers to manage Raritan KVM switches directly from the racks in which they are installed.

LED Technology for Reduced Energy Consumption
Raritan's T1700G2-LED is designed with a crisp energy efficient LED-backlit LCD display which reduces energy consumption up to 20-50%, over current LCD cold cathode fluorescent (CCFL) back-lit technology. The LED-backlit technology provides for better contrast and brightness, greater color range, and more rapid response to changes in scene and more accurate image rendering for a clean, crisp display Power Controls for Additional Power Savings Built-in power controls enable the adjustment of image brightness based on need and local regulations. Additionally, the LED-backlit LCD console drawer uses an integrated micro switch to provide auto power on/off when opening and closing the monitor below a 20 degree angle.

High Resolution Video Display
There's widescreen support for DisplayPort and HDMI video inputs for high definition video up to and including a resolution of 1080p, 1920x1080 @ 60Hz.

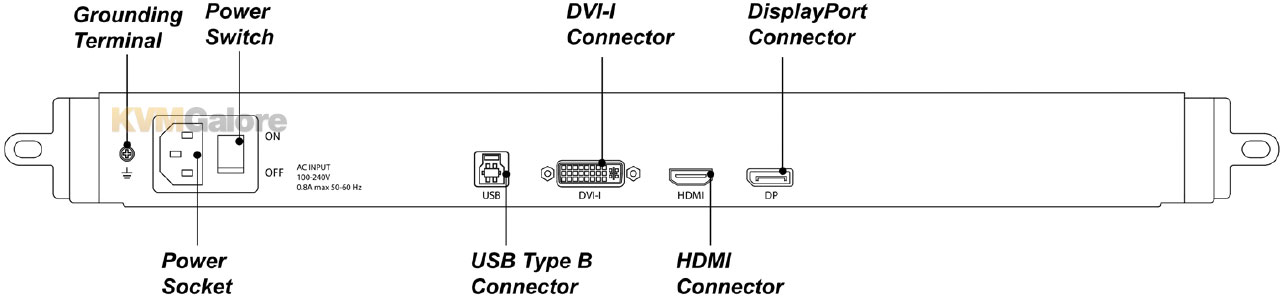

Supports Digital and Analog Video - DisplayPort, HDMI, DVI or VGA Video Inputs
The LED KVM consoles support digital video inputs (HDMI/DisplayPort/DVI-I) for high definition video as well as a traditional VGA input. Perfect to connect to the DVI-D local port of the Dominion KX III KVM-over-IP switch family and MasterConsole Digital CAT-5 KVM switches.

1U Rack-Mount Unit
Saves space at the rack. The 1U design takes up to 85% less space than a full-size keyboard, monitor, and mouse.

LED-Backlit LCD Display
The LED KVM consoles’ energy efficient LED-backlit LCD display reduces energy consumption 20-50% over current LCD cold cathode fluorescent (CCFL) backlit technology. The LED-backlit technology also provides for better contrast and brightness, greater color range, a more rapid response to changes in scene, and more accurate image rendering for a clean, crisp display.

Raritan Device Integration
T1700G2-LED is compatible with third party switches and Raritan KVM switches - including: Dominion^® and MasterConsole^®.

Multi-Platform Support
Easily integrates into virtually any server room or data center environment and supports Windows^®, Linux^® and other operating systems.

Multi-Language Support
Supports English, French, German, Swiss German, Italian, Japanese, Russian, Spanish, and Turkish.

Power Controls for Additional Power Savings
Adjustable image brightness and an integrated micro switch to provide auto power on/off when opening and closing the monitor below a 20 degree angle.

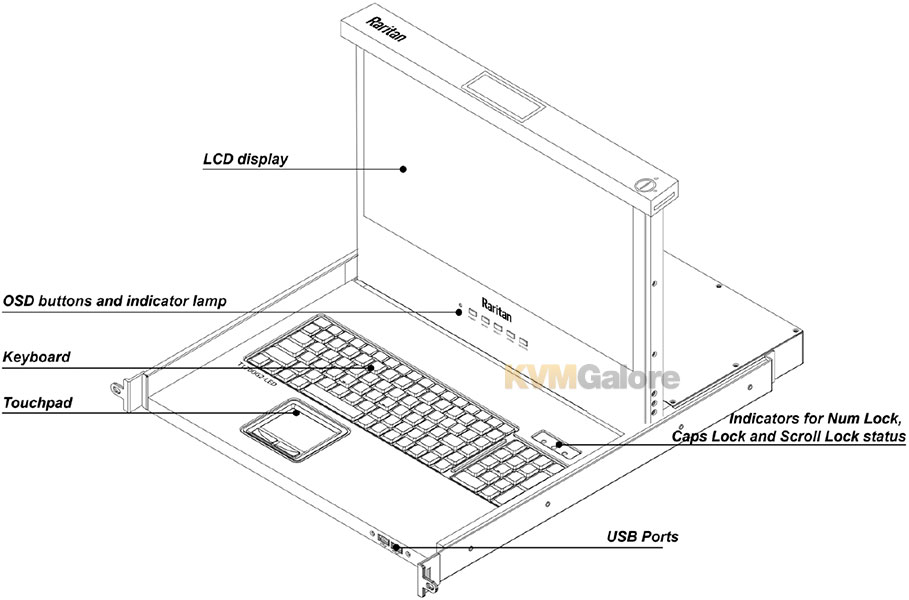

Built-in USB 3.0 Pass-Through Ports
Two front-of-the-rack media connections to keyboard, mouse or smart card readers for management of switches directly from the racks in which they are installed.

OSD and Front-of-Rack Media Connections
Easy installation using plug-and-play, auto-configuration and easy-to-use on-screen displays, plus built-in USB 3.0 enable keyboard, mouse or even smart card reader connections.

Integrated Micro Switch for Auto Power On/Off
Features an integrated micro switch for auto power on/off when opening and closing the monitor below a 20 degree angle to ensure the maximum useful life of the LCD panel.

Features and Benefits
• At-the-rack server access and control for easy on-site deployment, administration and maintenance
• LED-backlighting provides up to 20-50% energy savings over current LCD cold cathode fluorescent (CCFL) technology
• Accurate image rendering and video performance for sharp, clear pictures
• Space saving 1U design for 85% less space
• Energy efficient LED-backlit LCD display
• Widescreen support up to 1920x1080
• Supports DDC, DDC2, DDC2B
• DisplayPort, DVI-I and HDMI video inputs
• Two USB 3.0 pass-thru ports
• Warranty: 2 years; 1-year and 2-year extended warranties are available

Package Content
1x LCD KVM Console Drawer
1x USB 3.0 Type-B to USB Type-A Cable
1x 1.8m Male to Male DVI Cable
1x Power Cord
2x Rack-mount Brackets
1x Screw Pack

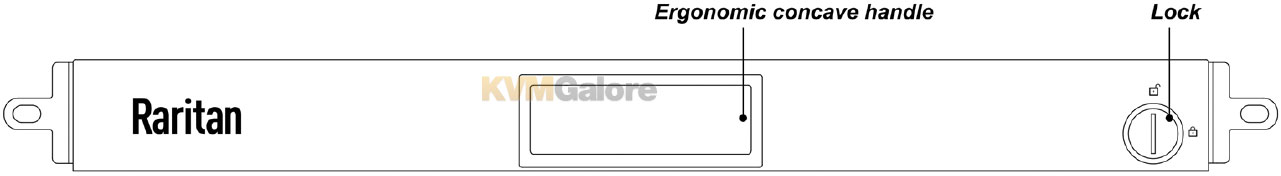

1x Drawer Key (to unlock the console)
