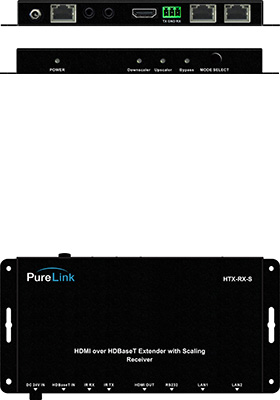

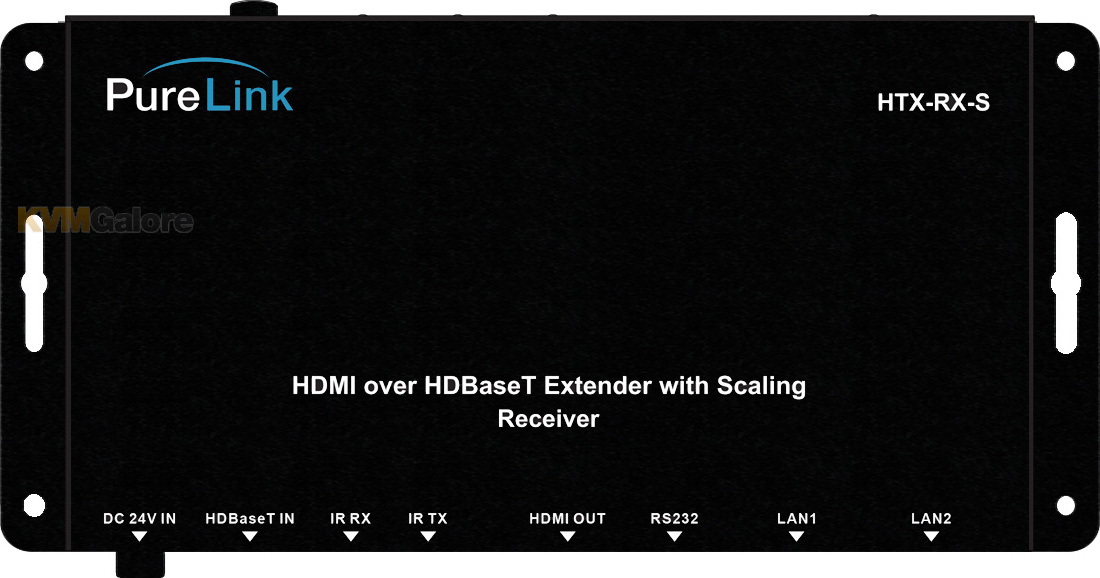

HDBaseT scaling receiver for HTX series matrix switchers
with PoE
Designed as a simplified extension solution for the HTX-8800-U/4400-U matrix switchers , HTX-Rx-S 4K HDMI over HDBaseT scaling receiver provides an accessible, easy-to-install solution for extending Ultra-HD/4K HDMI video and embedded audio over long distances using a single CATx cable.
HTX-Rx-S also provides high-performance up/downscaling capabilities at Ultra-HD/4K resolutions, while extending uncompressed HDMI video, audio, full 3D content, as well as bi-directional control to distances up to 330 feet (100 m).
HTX-Rx-S supports full 3D content and extends uncompressed HDMI video and embedded lossless audio formats with bi-directional control signals (IR) up to 330 feet at Ultra-HD/4K resolutions.
Using PoE technology, HTX-Rx-S can draw power from the HTX matrix chassis, eliminating the need for additional power supplies.
Features and Benefits
• Ideal solution for applications that require HD/Full-HD/Ultra-HD device interoperation
• Built-in up/downscaling capabilities with support for resolutions from 480i to up to 4K @ 30Hz (4:2:0)
• 330 feet (100m) @ Ultra-HD/4K
• HDMI 1.4b uncompressed video/audio up to 10.2 Gbps
• Receives PoE from HTX matrix switchers
• Bi-directional IR and RS232
• Supports HD multichannel audio including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM (up to 192kHz)
• Compact size for convenient installation behind displays

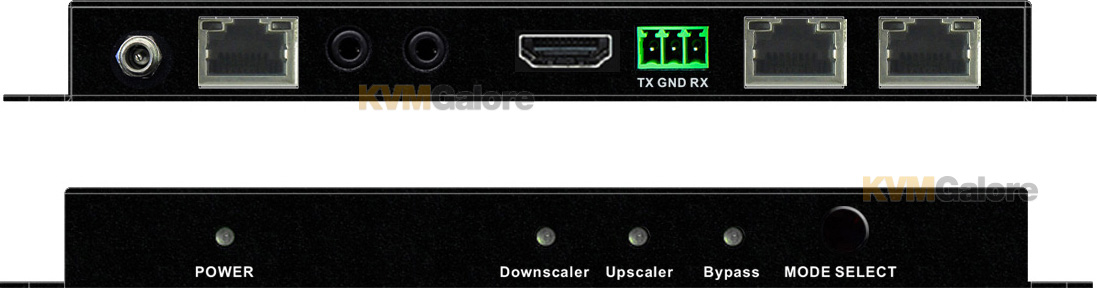

• LED indicators for HDMI and HDBaseT signal status
• Ethernet port for easy third party device networking
