ST-C64K18GB-230C: Extend a 4K 60Hz 4:4:4 HDMI display

over one CAT-6/7 cable up to 230 feet (70 m) away; cascade up to 10 receivers to show video on up to 10 remote monitors, up to 2300 feet away

Note: Additional Receiver units must be purchased separately

• 4K video resolution Ultra-HD 60Hz 4:4:4
• 18Gbps bandwidth
• HDMI 2.0
• Zero latency
• Supports point-to-point and point-to-many connections

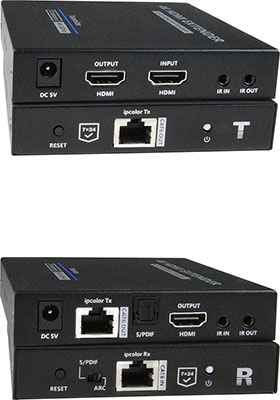

XTENDEX^® 4K 18Gbps HDMI extender transmits digital 4K Ultra-HD 60Hz 4:4:4 HDMI video and audio signals up to 230 feet (70 meters) using one CAT-6/6a/7 cable. Each video extender consists of a local unit that connects to an HDMI source and a local display via the HDMI loop output, and a remote unit that connects to an HDMI display.

Up to 10 receivers can be cascaded for a point-to-many connection via CATx.

HDMI Features Supported
• HDMI 2.0 compliant
• Up to 36-bit Deep Color
• LPCM, Dolby Digital, and DTS
• RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0
• Bandwidth up to 18 Gbps
• 3D
• HDR10

Features and Benefits
• Transmits an HDMI signal over a single CAT-6/6a/7 cable up to 230 feet (70 meters)
• Cascade receivers to extend up to 2300 feet and up to 10 remote monitors
• Supports Ultra-HD 4Kx2K resolution up to 3840x2160 @ 60Hz and 4096x2160 @ 24/25Hz YUV 4:4:4, HDTV resolution to 1080p @ 60Hz, and up to 1920x1200 (WUXGA)
• HDCP 2.2 and 1.4 compliant
• Supports local and remote HDMI displays
• Built-in default EDID table
• Supports HDMI embedded digital audio and SPDIF digital audio output
• Bi-directional IR control from input and output locations
• Built-in surge and ESD protection
• Mounting brackets included for easy surface/wall mounting

Package Includes
1x Transmitter (local unit)
1x Receiver (remote unit)
1x IR emitter
1x IR receiver
2x Power supplies
2x Sets of mounting hardware (4 brackets and 10 screws)
Cables are not included

Required Cable for Source Connection
1x HDMI cable
