ST-C64K18GB-R-230C: Cascade an additional 4K 60Hz 4:4:4 HDMI display

over one CAT-6/7 cable up to 230 feet (70 m) away; up to 10 cascade receivers is a chain, each supporting one remote monitor

Initial ST-C64K18GB-230C (Transmitter/Receiver pair) must be purchased separately

• 4K video resolution Ultra-HD 60Hz 4:4:4
• 18Gbps bandwidth
• HDMI 2.0
• Zero latency
• Supports point-to-point and point-to-many connections

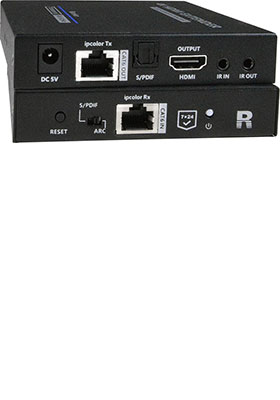

XTENDEX^® 4K 18Gbps HDMI extender transmits digital 4K Ultra-HD 60Hz 4:4:4 HDMI video and audio signals up to 230 feet (70 meters) using one CAT-6/6a/7 cable. Each video extender consists of a local unit that connects to an HDMI source and a local display via the HDMI loop output, and a remote unit that connects to an HDMI display.

Up to 10 receivers can be cascaded for a point-to-many connection via CATx.

HDMI Features Supported
• HDMI 2.0 compliant
• Up to 36-bit Deep Color
• LPCM, Dolby Digital, and DTS
• RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0
• Bandwidth up to 18 Gbps
• 3D
• HDR10

Features and Benefits
• Transmits an HDMI signal over a single CAT-6/6a/7 cable up to 230 feet (70 meters)
• Cascade receivers to extend up to 2300 feet and up to 10 remote monitors
• Supports Ultra-HD 4Kx2K resolution up to 3840x2160 @ 60Hz and 4096x2160 @ 24/25Hz YUV 4:4:4, HDTV resolution to 1080p @ 60Hz, and up to 1920x1200 (WUXGA)
• HDCP 2.2 and 1.4 compliant
• Supports local and remote HDMI displays
• Built-in default EDID table
• Supports HDMI embedded digital audio and SPDIF digital audio output
• Bi-directional IR control from input and output locations
• Built-in surge and ESD protection
• Mounting brackets included for easy surface/wall mounting

Package Includes
1x Receiver (remote unit)
1x IR emitter
1x IR receiver
1x Power supply
1x Set of mounting hardware (2 brackets and 5 screws)
Cables are not included
