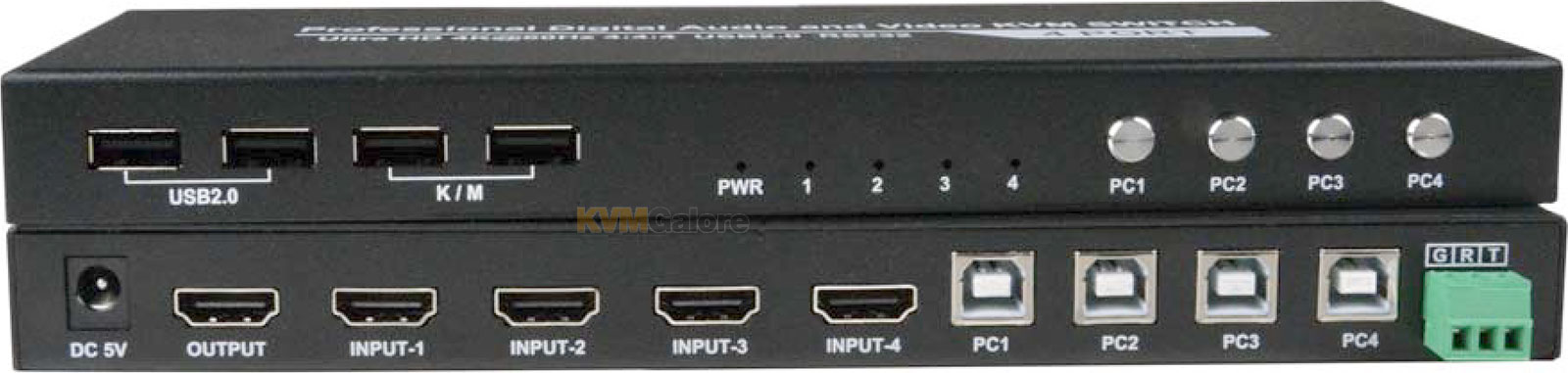

UNIMUX Low-Cost 4K 18Gbps HDMI-USB KVM Switch, 4-Ports

Model No. UNIMUX-HD4K18GB-4LC In stock

UNIMUX Low-Cost 4K 18Gbps HDMI-USB KVM Switch, 4-Ports
Buy this item and earn 215 ClubPoints.

UNIMUX-HD4K18GB-4LC: Control 4 Ultra-HD 4K HDMI-USB computers from one keyboard/mouse and 4K HDMI monitor

with USB 2.0 peripheral sharing


• Ultra-HD 4K 60Hz 4:4:4 video resolution
• 18 Gbps
• HDMI 2.0
• USB 2.0
• No power supply required

UNIMUX™ 4K 18Gbps HDMI USB KVM switch allows a user to control up to four HDMI 2.0 Ultra-HD 4K 60Hz 4:4:4 USB computers with one USB keyboard, USB mouse, and 4K HDMI monitor.

Supported HDMI Features
• HDMI 2.0
• 8-bit, 10-bit, and 12-bit Deep Color
• Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, Dolby Digital+, Dolby Atmos, LPCM 2/5.1/7.1CH, DTS 5.1, and DTS:X
• YUV 4:4:4, 4:2:2, 4:2:0, and RGB
• Bandwidth up to 600 MHz (18Gbps)
• 3D (1080p @ 60Hz)
• HDR

Front Panel Control
• Press the buttons on the front panel interface to switch between ports
• LEDs indicate currently selected port

Keyboard Control
• Scan or Auto Switching Modes are available from the keyboard
• Use the keyboard to command the switch box to select ports or configure the SCAN delay

RS232 Control
• Configuration and control can be done via RS232
• 3-pin screw terminal
• Baud rate: 115200 bps

Features and Benefits
• Supports Ultra-HD 4K resolution up to 3840x2160 and 4096x2160 @30/50/60Hz YUV 4:4:4, HDTV resolutions to 1080p @144Hz, and up to 1920x1200 (WUXGA)
• HDCP 2.2 compliant
• Compatible with USB computers (PC and MAC) with HDMI outputs
• Control the switch through the front panel buttons, keyboard commands, or RS232
• Two transparent USB 2.0 ports (low/full/high speed), in addition to keyboard and mouse ports, for connecting USB devices such as printers, game controllers, USB flash drives, touch screen monitors, whiteboards, etc.
• Supports high-speed (480 Mbps), full speed (12 Mbps), or low speed (1.5 Mbps) USB devices
• Supports Plug-n-Play specification
• No power supply required – powered from attached computers
• Mounting brackets included for easy surface/wall mounting

Package Includes
1x UNIMUX-HD4K18GB-4LC 4 port HDMI USB KVM switch
1x USB Type-A to 5.5x2.1mm DC jack cable- 41.73 in.
4x USB 2.0 Type-A to Type-B male-to-male cables, 50 in.
2x Mounting ears and screws
1x 3-pin screw terminal for RS232
Video cables are not included

Required Cables (per port)
1x HDMI, male-male
1x USB, Type-A to Type-B
