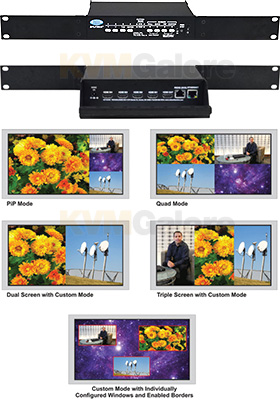

SPLITMUX HDMI Quad Screen Splitter/Multiviewer, Rack-Mount

Model No. SPLITMUX-HD-4RT-R In stock

SPLITMUX HDMI Quad Screen Splitter/Multiviewer, Rack-Mount
Buy this item and earn 1,617 ClubPoints.

SPLITMUX-HD-4RT-R: Display real-time 1080p video from four HDMI/DVI sources simultaneously on a single display

SPLITMUX® HDMI Quad Screen Multiviewer allows you to simultaneously display real-time HDMI/DVI video from two, three, or four different sources on a single monitor.

It is capable of displaying the video sources in quad, PiP, full, or custom mode. In custom display mode, each of the quadrants can be adjusted to any size and positioned to any location on the display.

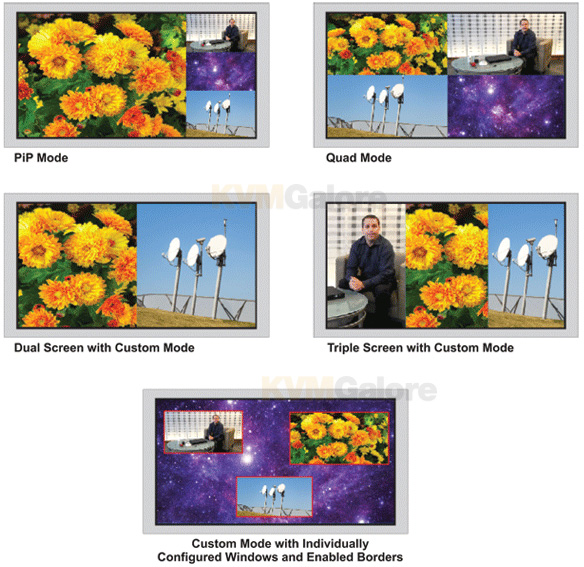

Display Modes

Dual Mode
• In quad mode, the screen is split into four fields of equal size each displaying the entire contents of four different video sources.
• Fluid, real-time video performance with 60 frames per second (fps) in all four quadrants.
• Borders can be set for each image input.
• Aspect ratio can be maintained for all outputs.

Full Screen Mode
• In full screen mode, one of the four video sources is displayed in full screen size and maximum resolution.
• Scan feature: cycle through four different sources at set intervals.

Picture in Picture (PIP) Mode
• In PIP mode, the full screen display of one of the four video sources is accompanied by one, two, or three small images (thumbnails) of the three other video sources on the right hand margin of the screen allowing simultaneous monitoring.
• Size, position and selection of the thumbnails are customizable.
• Scan feature: cycle through four different sources at set intervals for the larger image.
• Borders can be set for each image input.
• Aspect ratio can be maintained for all outputs.

Custome Mode
• In Custom mode, each video source is displayed in its own separate, detached window.
• Size, position and selection of the windows are customizable.
• 2- and 3-source viewing is possible with this method.
• Presets of the window positioning can be saved.
• Borders can be set for each image input.

Built-in Control

Ethernet Control
• Configuration can be done over the Internet/LAN via Web page or Telnet.
• Supports Internet Explorer 6.0 or higher, Firefox 2.0 or higher, Opera 9.0, Google Chrome, Safari 4.0 or higher for MAC and PC.
• Configure and control the settings for the system, network, input, output, and modes.
• Female RJ45 connector.
• 10/100 BaseT Ethernet interface.

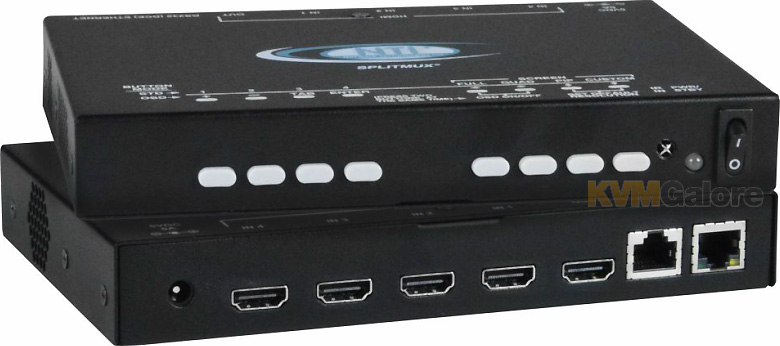

Front Panel Interface
• Use front panel buttons to locally change ports or to select a display mode.

RS232
• Configuration and control can be done through the serial port.
• Female RJ45 connector.
• Control the multiviewer using the Text Menu via RS232.
• Selectable baud rate: 1200 to 115,200 bps.
• Baud rate is set via the front panel interface, serial command, OSD, or web interface.

Infrared Remote Control
• Routes video and audio signals together or independently.
• A single IR remote can control up to 15 units (individual or cascaded).
• Use the "sys" button on the remote followed by the user-configured address of the unit to switch between the units controlled.
• Transmitter can be up to 30 feet (9.1 meters) away.
• Power: two AAA batteries (included).

On Screen Display (OSD)
• Select display modes and computers with On Screen Display (OSD).
• Use the front panel buttons to operate the OSD.
• OSD controls for configuration and control of the system, network, input, output, and display modes.
• Access to OSD Mode can be limited by an administrator-assigned PIN number.

Features and Benefits
• Quad, Picture in Picture, Full Screen, and Custom display modes.
• Custom Display Mode: the size, position and selection of any or all windows are customizable.
• 2- and 3-source viewing is possible with this method.
• Independent video in to video out resolution.
• Supports HDTV resolutions up to 1080p and computer resolutions to 1920x1200.
• HDCP compliant.
• Fluid, real-time video performance with 60 frames per second (fps) in all four quadrants.
• Switch audio independently of video from connected HDMI sources.
• Any DVI source or display can be connected by using the DVI-HD-xx-MM cable (not included).
• Use DVIA-HD-CNVTR-LC or DVI-HD-CNVTR DVI + Audio to HDMI Converters to pass and independently switch audio signals to the multiviewer.
• Control the multiviewer through Ethernet, RS232 serial port, on screen display (OSD), front panel buttons, or IR remote.

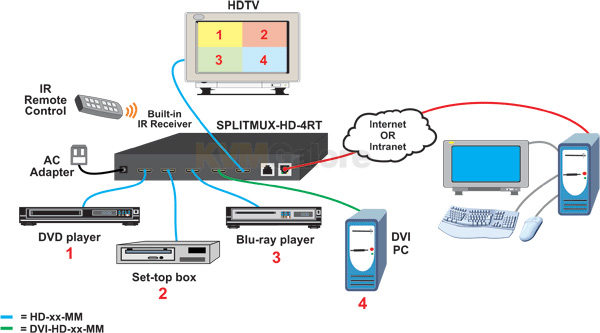

• Cascade multiviewers to display video from up to 16 video sources on one screen.
• Each unit in the cascade must be configured and controlled individually.
• Backup and restore multiviewer configurations.
• Select default EDID or copy EDID from output monitor.
• Supported output resolutions can be selected or set to auto detect.

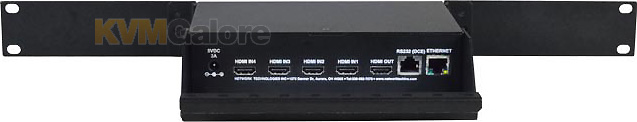

• Rack-mount units can be mounted so that the front panel buttons are facing the front or back of the rack.
• Rack-mount units include cable management shelf.
• 2-year warranty

HDMI Supported Features
• Inputs: 24-, 30-, and 36-bit xvYCC, sRGB, and YCbCr.
• Outputs: 24- and 30-bit sRGB.
• Four-channel non-mixing or one-channel mixing stereo with 16-, 20-, or 24-bit uncompressed PCM audio.
• Bandwidth up to 165 MHz (2.0625 Gbps).
