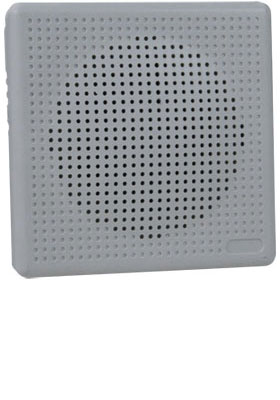

E-TMAPS-10W: ENVIROMUX triggerable audio player
with built-in 10W amplified speaker
Trigger the audio player with built-in 10W amplified speaker using switches, relays or PIR motion detector sensors.
Interfaces with the ENVIROMUX 2D/5D/16D via the Output Relay connections. Audio play back is triggered when the relay contacts are closed.
Four different trigger modes available:
One-on-One Playback (interruptible)
Example application: A motion detector senses when a person enters a room, which triggers the audio player to play the MP3 sound file. Playback can be interrupted by manually opening the closed circuit connection to the E-2D/5D/16D, or re-triggering the motion sensor.
One-on-One Playback (Non-Interruptible)
Example application: A motion detector senses when a person enters a room, which triggers the audio player to play the MP3 sound file. Once the audio file is triggered, the playback will only end once the file has played its entirety.
Level Hold Loop Playback
Example application: A motion detector senses continued motion within a room, which triggers the audio player to play the MP3 sound file. Once the continued motion stops, the playback will be cancelled.
Standard MP3 Key Mode Playback

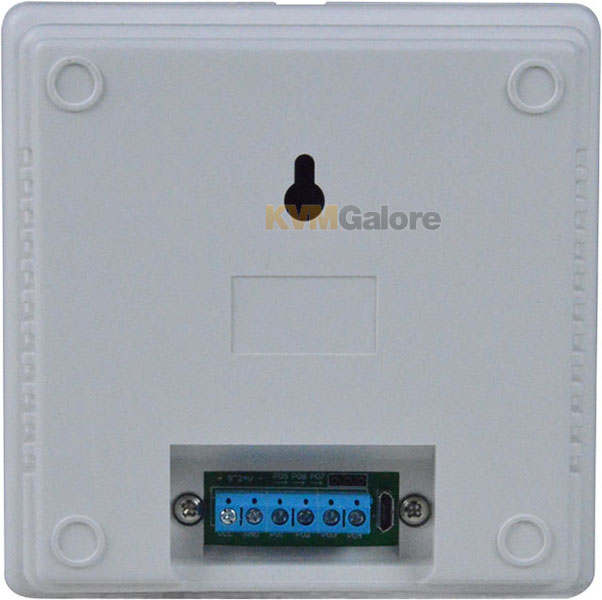

The four wiring inputs on the E-TMAPS-10W device will function as Previous, Next, Play/Pause, and Stop triggers, allowing more than four audio files to be placed on the device.
• Load four unique audio files to the device, allowing for specific messages to be triggered
• Adjustable sound volume
• Built-in 4MB flash memory
• Stores MP3 files totaling 4 minutes long (at 128Kbps)
• Female micro USB port for connecting to a PC to load MP3/WAV files
• Compatible with and powered by ENVIROMUX 2D/5D/16D
