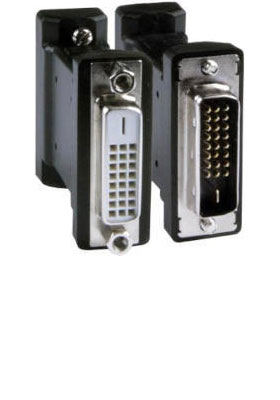

DVI-EDID-EMLTR-LC: Emulates a DVI display by providing Hot Plug Detect and EDID to the DVI source

• Headless operation
• Video pass-through
• Resolution up to 1080p/WUXGA/WQXGA

The Low-Cost DVI EDID Emulator simulates the presence of an attached DVI display to a DVI video source. The built-in EDID table stores and reproduces resolutions up to 1920x1200 (WUXGA) and 1080p at 60Hz.

When used with EDID Recorder for DVI-EDID-EMLTR-LC (sold separately), the EDID of a desired DVI display will be copied and stored to the emulator.

Features and Benefits
• Emulates a DVI display (sink device) by providing Hot Plug Detect and EDID to the DVI source device
• Supports HDTV resolution up to 1080p, and up to 1920x1200 (WUXGA)
• Dual link resolutions up to 2560x1600 (WQXGA) supported - requires EDID-REC-VDH EDID Recorder (sold separately) to program dual link resolutions to the emulator
• Emulation mode: provides EDID to the DVI source device from the emulator's internal memory
• Supports headless operation - no monitor attached to source
• The selectable resolutions are dependent on the computer's graphic card (only DVI-EDID-EMLTR-LC is necessary for this function)
• Learning mode requires EDID-REC-VDH EDID Recorder (sold separately): store a display's EDID for later use
• Pre-programmed with many standard resolutions with native set to 1920x1080 @ 60Hz
• Requires EDID-REC-VDH EDID Recorder (sold separately) to program other resolutions to the emulator
• LED indicators provide signal status information
• Ideal for resolving signal handshaking problems between a source and a display
• Ensures that the EDID is not lost in connections between devices such as switches, splitters, and extenders
