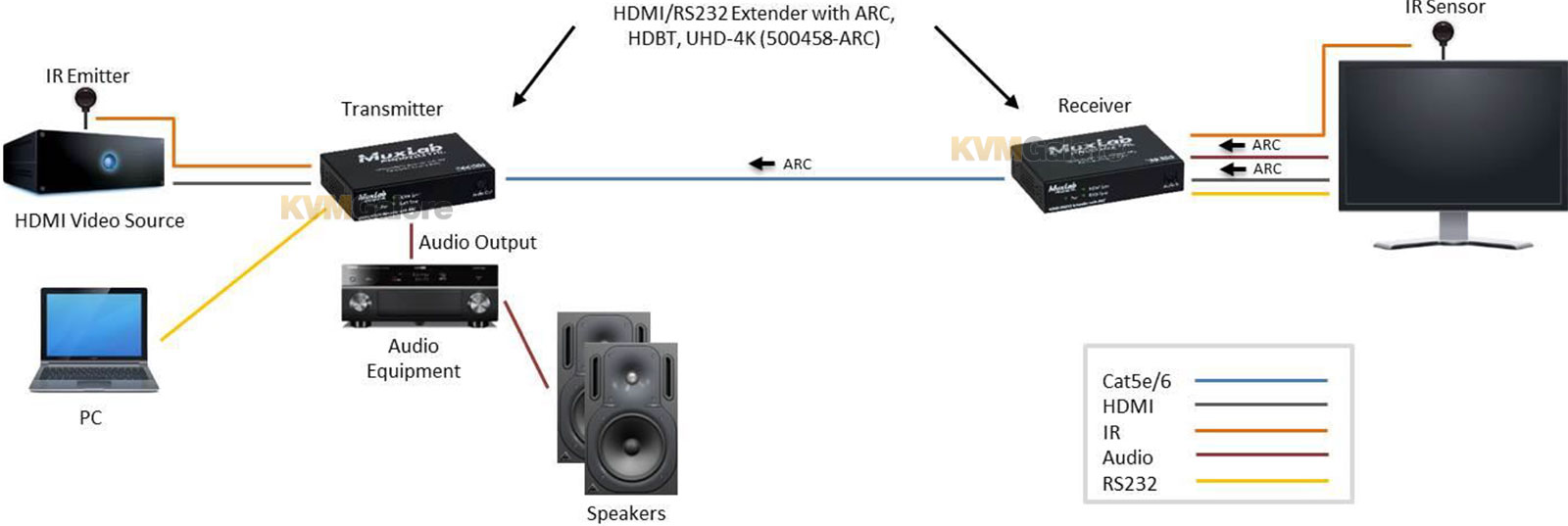

500458-ARC: Connect an HDMI source to a remote display (point-to-point)

up to 131 feet apart at 4K; up to 230 feet apart at 1080p, supporting ARC

The UHD-4K/60 HDMI/RS232 HDBaseT Extender Kit w/ ARC (500458-ARC) allows HDMI equipment to be connected up to 131 feet (40 m) at 4K/30 (4:4:4) and 4K/60 (4:2:0) resolution, or 230 feet (70 m) at resolutions up to 1080p via one CAT-5e/6 unshielded twisted pair cable in a point-to-point configuration.

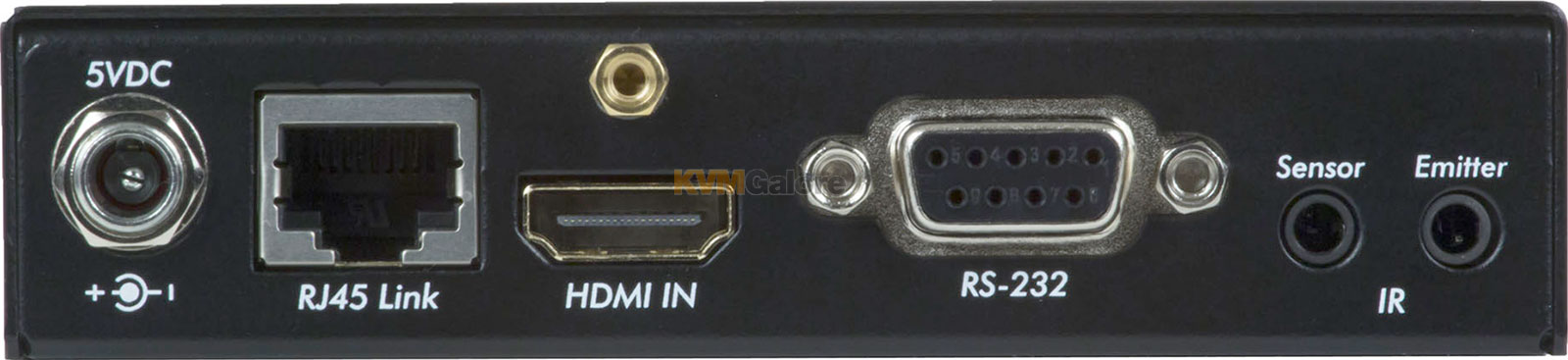

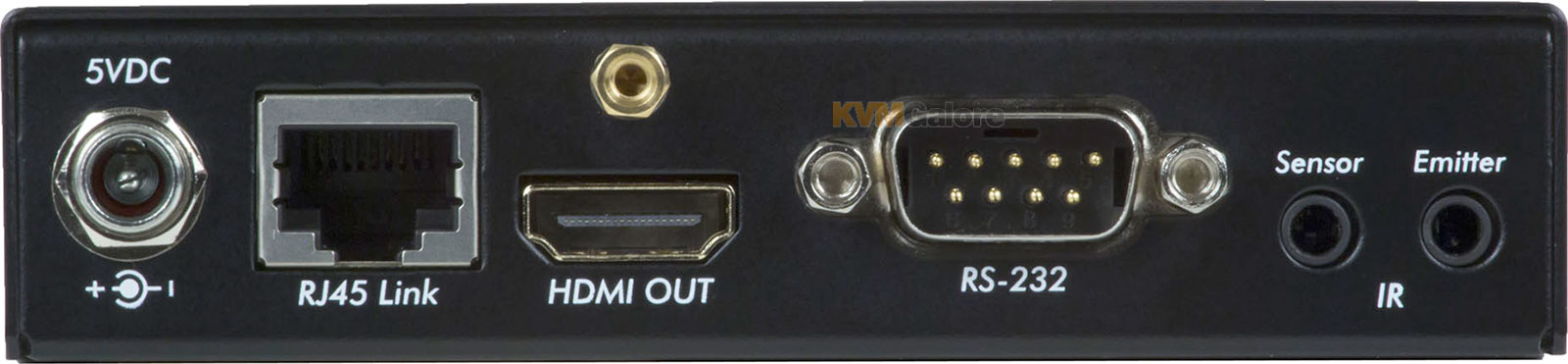

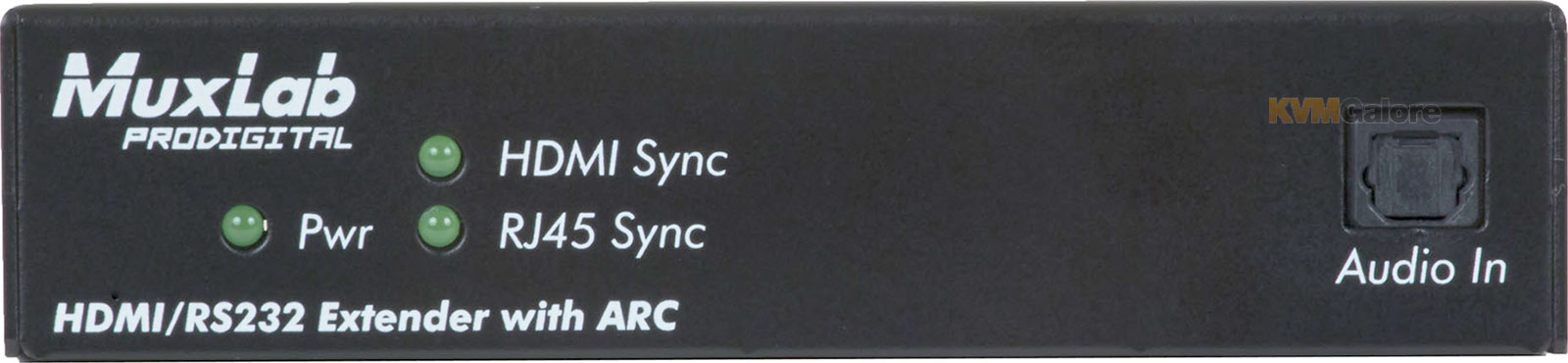

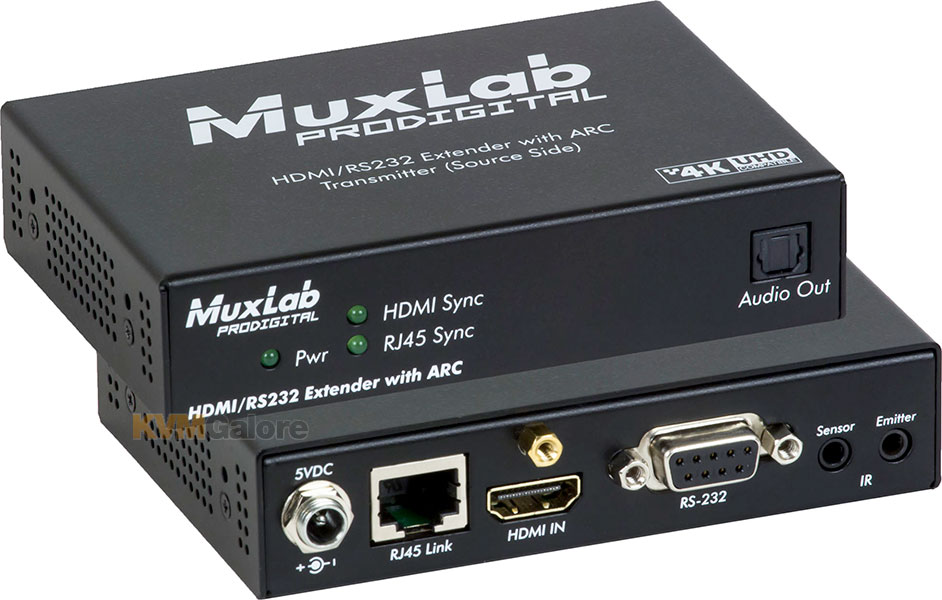

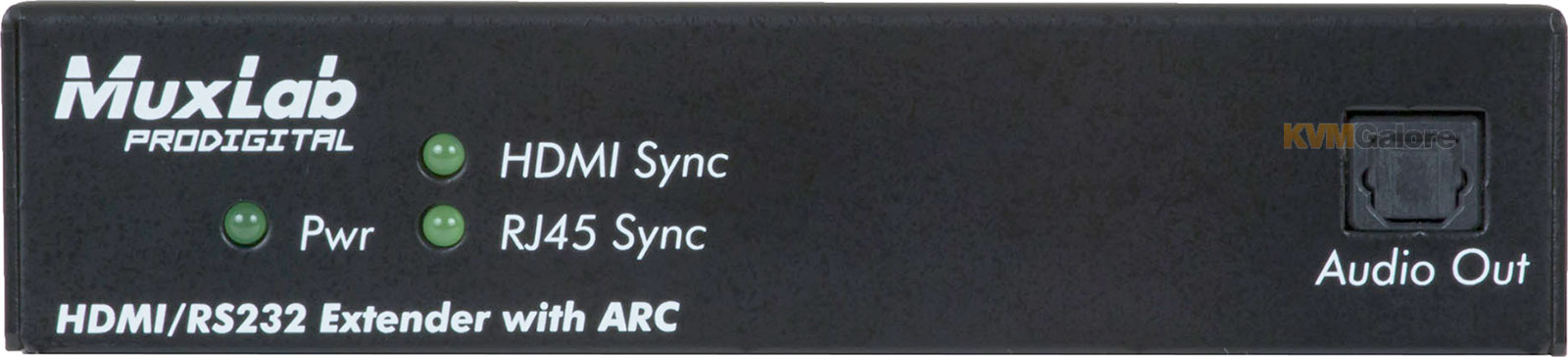

The kit supports audio return channel (ARC), allowing the Receiver to return audio from a sink device such as a smart TV back to the Transmitter and on to an audio system. The originating ARC signal may be received via the HDMI or TosLink-in port of the Receiver (500458-ARC-RX) and transmitted via the TosLink-out port of the Transmitter (500458-ARC-TX).

The unit is HDCP 2.2 compliant and supports RS232 and bidirectional IR pass through transmission for end device remote control.

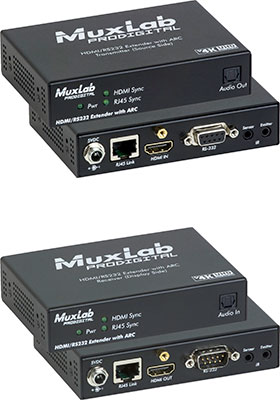

The kit includes one Transmitter, one Receiver, one IR Emitter, one IR sensor, and two power supplies.

Typical Applications
• Digital signage
• Commercial AV systems
• Classroom projector systems
• Boardroom systems
• Collaborative PC systems
• Medical information systems

Features and Benefits
• Supports 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0) to distances of up to 131 feet (40 m) over single CAT-5e/6
• Supports 1080p and full 3D to distances of up to 230 feet (70 m) over single CAT-5e/6
• HDCP 2.2 compliant
• Support audio return channel (ARC)
• Supports all digital audio modes
• Supports RS232 and bi-directional IR pass through
• Includes IR emitter and IR sensor (carrier-wave)
