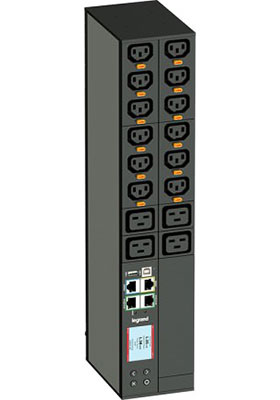

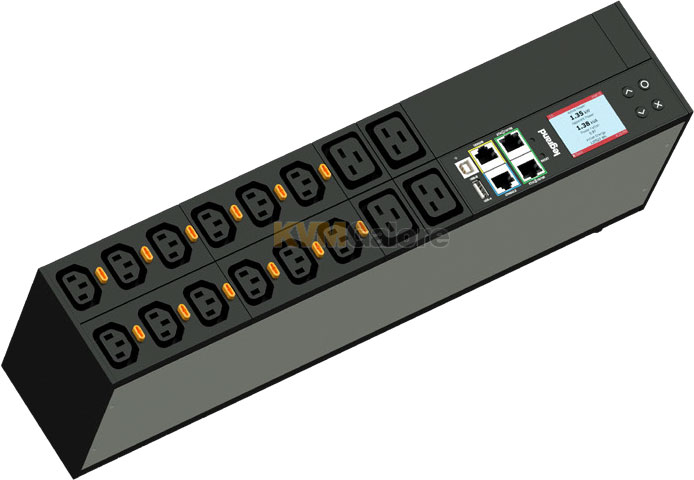

Network-Metered PDU, 2U, 30A, 208V, (12) C13 & (4) C19, L6-30P Cord

Model No. LP-42320 Usually ships within 3-4 business days or less

Network-Metered PDU, 2U, 30A, 208V, (12) C13 & (4) C19, L6-30P Cord
Buy this item and earn 869 ClubPoints.

LP-42320: Legrand network metered PDU with load monitoring and notification thresholds

provides remote access to monitor power consumption - 12 locking IEC C13 & 4 IEC C19 outlets; NEMA twist-lock L6-30P plug

• Networked Controller: Enables remote and local monitoring of the PDU and peripherals
• Load Monitoring: View the power being drawn for the entire PDU, receive notifications of potential issues or when near max amperage draw
• User Defined Notifications: User defined thresholds for power draw or environmental factors with notifications if thresholds have been met
• High-Resolution Color LCD: Displays energy reading, current, and voltage; important configuration settings, alarm settings, and control outlets which simplifies commissioning
• Hydraulic-Magnetic Breakers: Provide less heat dependent local protection and quick recovery from circuit overload, by utilizing a two-step response curve—these breakers provide a delay on normal overcurrents, while tripping quickly on short circuits
• Integrated Locking Outlets on IEC C13 Receptacles: Eliminates the need for special locking cords
• Optional Environmental Sensors: Can alert of any threats of downtime or potential physical security breaches
• Software Interoperability: Seamlessly integrate into any monitoring software with open JSON-RPC interface
• Software Compatibility: SNMP, LUA, Java, JavaScript, and Perl
• Warranty: 2 years


Legrand networked PDUReceptacles
Locking IEC C13 (quantity: 12) and IEC C19 (quantity: 4)

This network-metered PDU enables line level power metering in real time, allowing remote monitoring of the load level, custom notifications, and user specified conditions.

The PDU provides visibility and reporting of power usage on the PDU's color LCD screen and to tablets, smart phones, or computers from nearly anywhere.

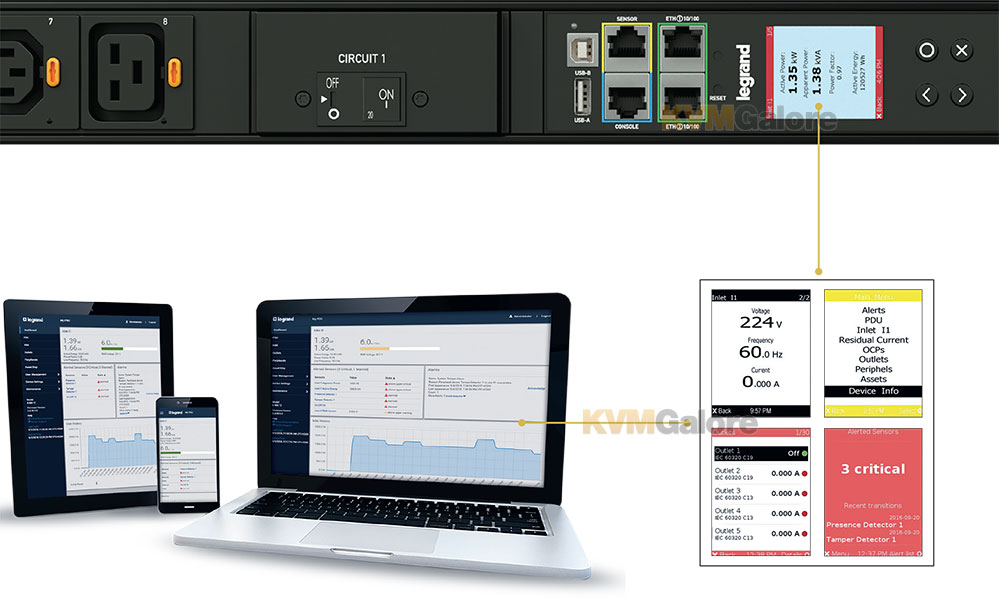

Networked PDU Controller - The Heart of the Networked PDU
The Legrand® PDU controller allows local and remote access to all critical measurement data. The bright color LCD display will change color according to the alert level detected by the iPDUs; your field technicians can quickly identify iPDUs on which the thresholds have been exceeded, obtain correct power supply data immediately, and take appropriate action.

Directly Accessible Data
Directly accessible data makes it easier to view the data center power supply data and information about the environment. The responsive web user-interface can be accessed from any device or tablet, or directly from a desktop computer.

The overview screen provides the most important information at a glance, so you can easily monitor your PDU health and critical data, and also view the cabinet energy consumption in real time.

Circuit breaker

A Wide Bright LCD Display with Adaptive Color Screen
The LCD display on the unit changes color according to the alert level, making it easier for the technical teams to see the critical information.

Magnetic-Hydraulic Circuit Breaker
This Legrand PDU features a rugged circuit breaker with delayed tripping curve, which provides the maximum flexibility and safety of people and equipment. The circuit breaker is  monitored by the embedded firmware and issues configurable alerts in the event of an overload or unwanted tripping.

Legrand cord locking systemCord Locking System
The security of cable connections is a critical element which must be considered to ensure longevity of the installation. C13 IEC receptacles have a cord locking system which prevents accidental disconnection due to human error or vibration.

Legrand cord locking system

Features and Benefits
• Energy Metering: Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
• Metering Accuracy: ISO/IEC 62053-21 1%
• Metering per Input Line: Yes
• Metering per Branch Circuit Breaker: Yes
• Metering per Output Receptacle: No
• Remote Outlet Switching: No
• Environmental Sensor Ready: Yes
• Replaceable Controller: No
• Compatible Sensors: Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure
• Networking: Two (10/100 BaseT) Ethernet ports. Optional WiFi (802.11a/b/g/n)
• Remote Management: HTTP(s); SSH; Telnet; RS-232 (Serial); Power IQ; SNMP version v2/v3; SMTP; JSON-RPC
• Cascading: Yes, Max 16 PDUs can be daisy chained using a single Ethernet or USB connection
• Onboard Display: Color, matrix LCD display : Voltage, current, or active power (per line or per breaker); Alarms; Configuration information (name, ratings, IP / Networking information)
• Embedded Processor: ARM Cortex A5 500MHZ (Atmel A5D21B), 16MB SPI Flash, 64MB DDR2 RAM
