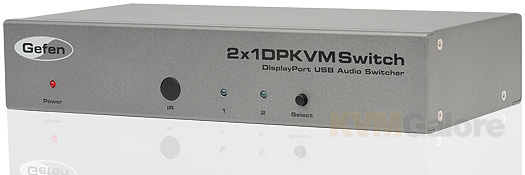

EXT-DPKVM-241: 2-input KVM switcher for DisplayPort video, USB, and audio
The 2x1 DisplayPort KVM Switcher allows effortless switching of DisplayPort between two computers using just one display and one USB 2.0 port for a keyboard and mouse.
Audio, video and control signals are switched for each computer upon selection, providing an easy and effective method of accessing two computers from one workstation without the hassle of network.

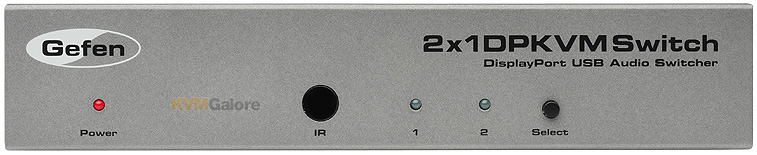

Switching can also be performed through the front panel Select button, IR remote control or via RS232.
How It Works

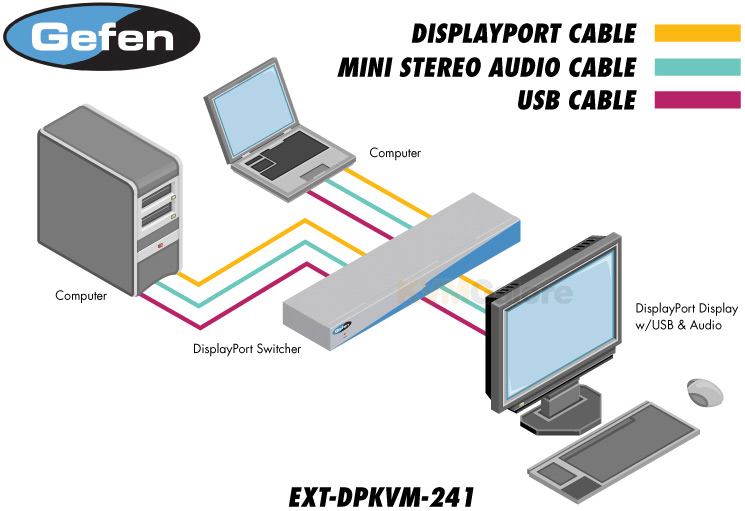

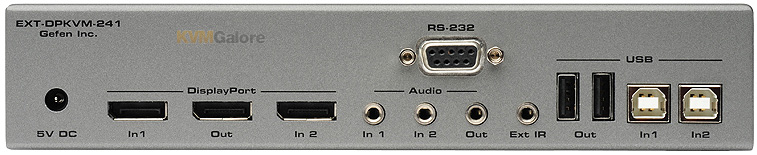

DisplayPort's plug-and-play construction and compact connector enables faster, easier installations with less chance of errors. Connect a DisplayPort display and USB 2.0 keyboard/mouse to the Switcher's outputs. Connect both computers' DisplayPort, USB and audio ports to the Switcher's inputs using the supplied cables. The Switcher is compatible with both Macintosh and PC keyboards, mice and displays.
Note: If the source and/or display is not DisplayPort compliant, a protocol-specific protocol adapter will be required in order to connect the source to the Switcher and/or the Switcher to the high-resolution display.
Features and Benefits
• Switches one High-Resolution Display between two DisplayPort-equipped computers with audio/video and USB keyboards
• Compact connector for easier installations
• Switches up to 2560 x 1600 maximum resolution
• Supports RGB and YCbCr color spaces
(1) DisplayPort KVM Switcher
(2) 6-foot DisplayPort cables
(2) 6-foot USB 2.0 cables
(2) 6-foot 3.5mm mini-stereo audio cables
(1) Universal Power Supply
(1) IR Remote Control
(1) User's Manual
