EXT-DIGAUD-141: Extends S/PDIF and TOSLink digital audio devices
up to 330 feet (100m) over one CAT-5e cable
Place your digital audio components anywhere you want with Gefen's digital audio extender.
It supports either S/PDIF or TOSLink digital audio signals, which are commonly used to transmit stereo and multichannel (5.1, DTS, Dolby Digital, etc.) digital audio among various components.

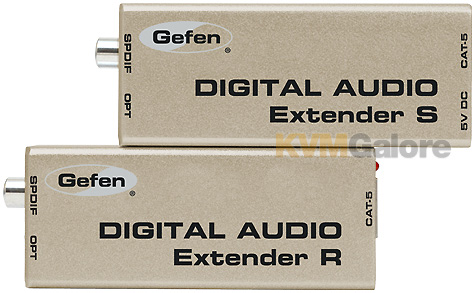

The Digital Audio Extender uses a sender and receiver system connected by a CAT-5e cable to extend the digital audio.
How it Works

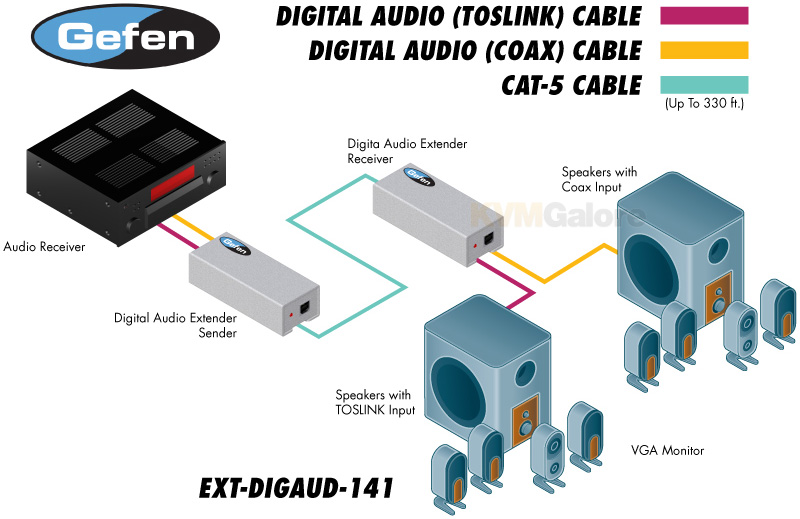

The Digital Audio Extender's sender unit connects to the audio source component. The digital audio extender's receiver unit connects to the extended audio component (up to 330 feet away). One CAT-5E cable connects the sender to the receiver.
Features and Benefits
• Extends any S/PDIF and TOSLink digital audio device up to 330 feet (100 meters) from the source
• Supports Digital 5.1 (DTS, Dolby Digital, etc.)
• Supplies clear digital audio over long distances as if connected locally
• Streamlines audio installations by allowing source devices to be located in off-site or unseen rack
• One CAT-5e cable used for extension
• Audio is transmitted digitally for zero signal loss
(1) Digital Audio Extender-S
(1) Digital Audio Extender-R
(1) One TOSLink fiber optic cable
(1) 5V external power supply
