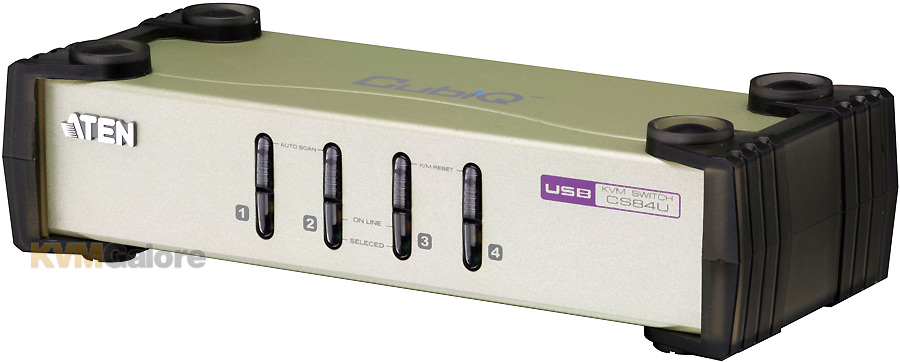

Image 1 of 4 view

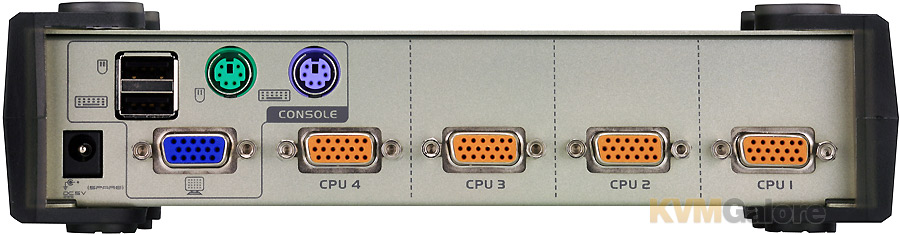

Image 2 of 4 view

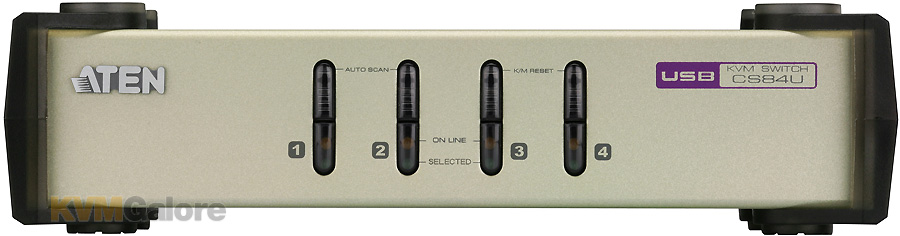

Image 3 of 4 view
Image 4 of 4 view


Model No. CS84U In stock

Buy this item and earn 116 ClubPoints.

4-port USB-PS/2 KVM switch, with 4 cables

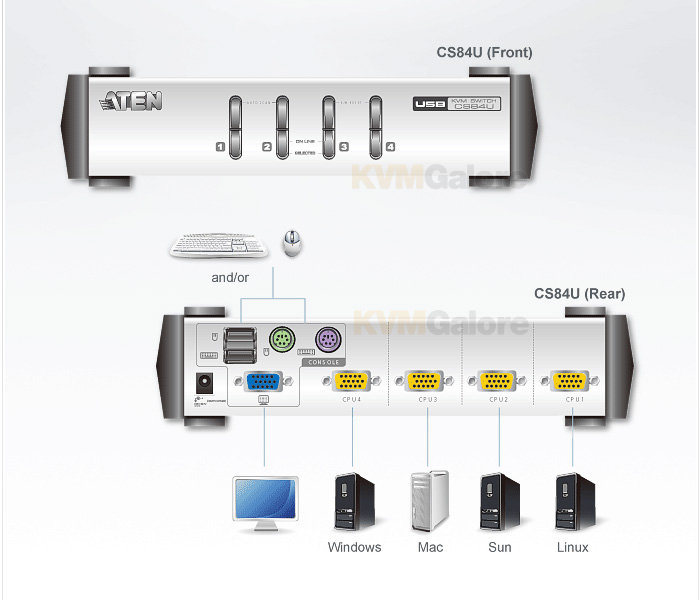

CS84U PS/2-USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS84U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.

Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems.

Since the CS84U intercepts keyboard input directly, it will work on multiple computing platforms.

Features and Benefits
• One PS/2-USB VGA console controls four VGA interface computers.
• Dual Interface - supports computers with PS/2 or USB keyboards and mice
• Computer selection via front panel pushbuttons, hotkeys, and mouse
• Multiplatform support - Windows, Linux, Mac, and Sun
• Superior video quality - 2048 x 1536; DDC2B
• Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
• Complete keyboard emulation for error-free booting
• Mac/Sun keyboard support and emulation*
• Multilingual keyboard mapping - supports English, Japanese, and French keyboards
• Gaming keyboard support
• Auto Scan Mode for monitoring all computers
• Firmware upgradable
• Non-powered

Package Contents
1x CS84U PS/2-USB KVM Switch
4x PS/2-USB 3-foot KVM cable sets [2L5301UP]
1x User Guide

* PC keyboard combinations emulate Mac/Sun keyboards. 2) Mac/Sun keyboard work only with their own computers.
