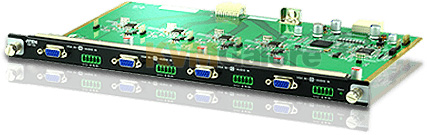

4-port VGA+audio input board for ATEN modular matrix digital A/V switches

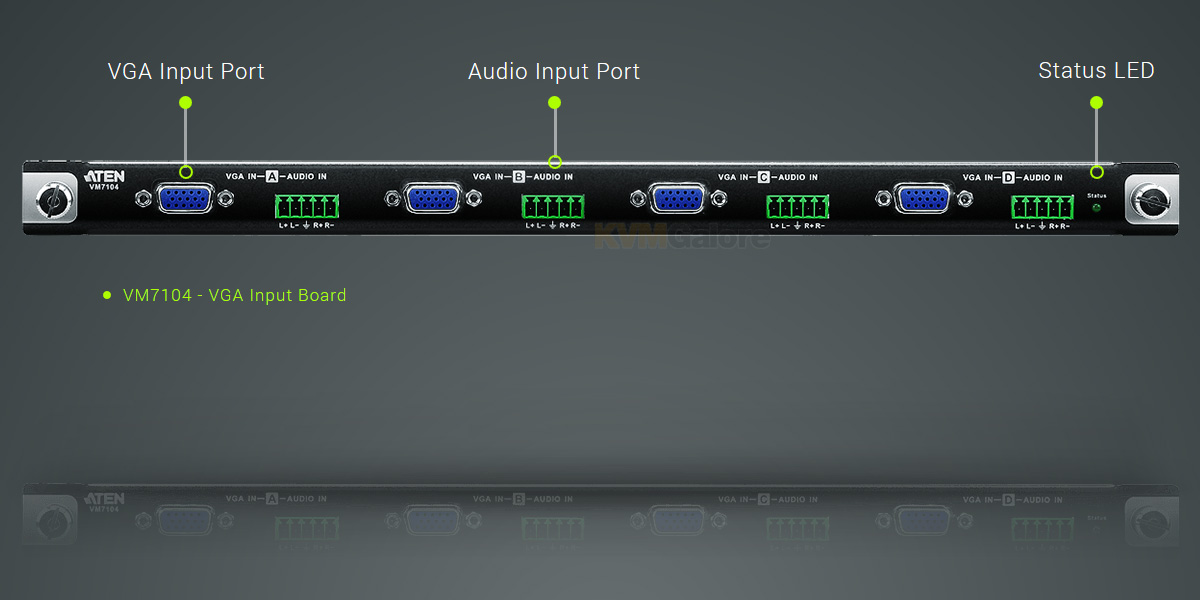

VM7104 4-port VGA input board offers an easy way to route 4 VGA video and audio sources to multiple displays when used in combination with the ATEN modular matrix switch.

VM7104 supports RGBHV / RGBS/ Y CbCr/ YPbPr input signals; stereo audio that can be embedded into HDMI audio output.

The board is built with a hot-swappable design that is compatible with VM1600/VM3200, so that the unit doesn’t need to be powered off when the board is changed.

Features and Benefits
• Connects up to 4 VGA or Component inputs
• Supports RGBHV / RGBS/ YCbCr/ YPbPr input signals
• Hot-swappable design for easy integration of I/O boards
• Compatible with VM1600/VM3200 and can be mixed with any modular output boards for optimum flexibility

Package Contents
1x VM7104 4-Port VGA Input Board
4x Terminal Block Connectors
1x User Instructions
