VS481B

Model No. VS481B Usually ships in 7-10 business days or less

VS481B
Buy this item and earn 73 ClubPoints.

4-Port, 4K Ultra-HD HDMI audio/video switch

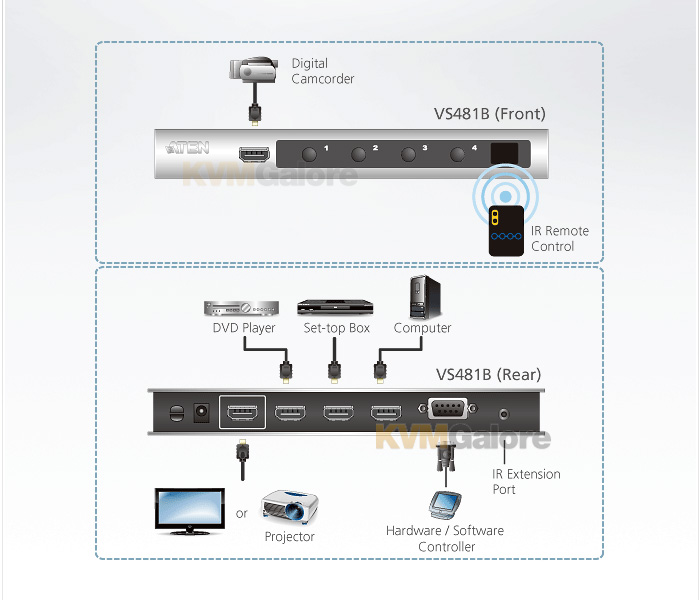

VS481B 4-Port HDMI switch allows you to quickly connect 4 HDMI sources to your HDMI display and easily switch between them via front panel pushbuttons, RS-232 or IR remote control.

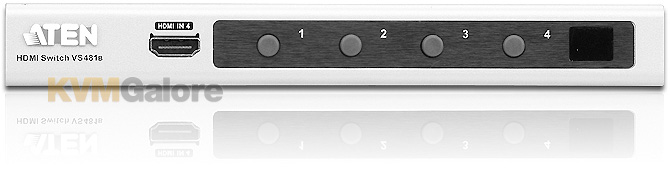

The front panel's LEDs indicate the source device selected for the display at a glance.

VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.

Features and Benefits
• Allows up to four HDMI A/V sources to be connected to one HDMI display
• Quick and easy switching between HDMI sources via front panel pushbuttons, RS-232 or IR remote control
• Supports 340MHz bandwidth for ultrahigh 4kx2k video
• HDMI (3D, Deep Color, 4kx2k); HDCP compatible
• Auto switching modes for auto port selection
• Long distance transmission – up to 50 feet (15m) (24 AWG)
• Consumer Electronics Control (CEC) support
• Supports Dolby True HD and DTS HD Master Audio
• Built-in bi-directional RS-232 serial remote port for high-end system control
• Instant switching between HDMI input sources
• Supports IR extension using a IR extension cable*
• LED indication of video source devices

Package Content
1x VS481B
1x HDMI cable
1x IR remote control
1x power adapter
1x user instructions
Video cables are not included

Required Cables (per port)
1x HDMI, male-male

* The IR extension cable (Part No. 2XRT-0003G) is not included inthis package.
