4-port, True 4K HDMI switch with dual-output

with two outputs and audio de-embedding technology

With more and more HDMI devices entering the home-theater market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS482B 4-port dual-view True 4K video switch offers an easy and affordable way to add HDMI capabilities to your home theater system by allowing you to switch easily between up to four HDMI A/V sources that are connected to up to two HDMI displays.

ATEN VS482B switch is an ideal solution for application requiring superior video resolution of True 4K when connecting 4 HDMI A/V sources to 2 HDMI displays. Complying with HDMI 2.0 standards, the switch's Audio Return Channel (ARC) function allows users to send audio without having to attach a separate audio cable.

VS482B supports four (4) HDMI video input sources and two (2) HDMI output displays. It is designed for two HDTV or audio/video receiver (AVR) applications.

Furthermore, VS482B offers switching methods between HDMI sources by front panel pushbuttons, IR remote control and RS-232 commands, enabling users to effortlessly select desired input.

Equipped with EDID Expert™, VS482B benefits users with optimum EDID settings for smooth power-up and highest-quality display across different screens. Featuring above functionalities provides you a practical solution for auditorium, home theater, meeting rooms, trade shows, shopping centers, and more.

Features and Benefits

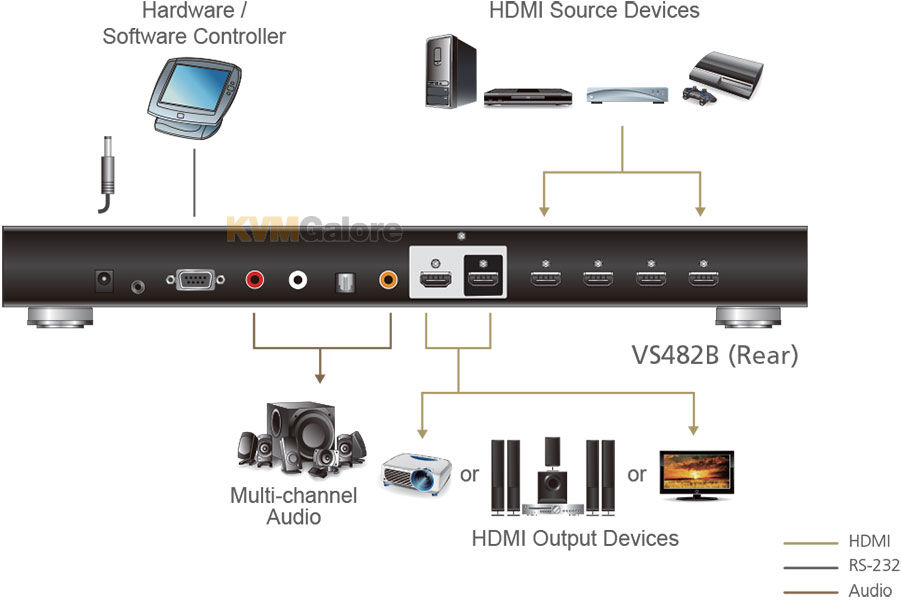

• Allows up to 4 HDMI A/V sources to be connected to 2 HDMI displays
• Superior video quality – up to 4096x2160 / 3840x2160 @ 60Hz (4:4:4); HDR supported
• HDMI 2.0 (3D, Audio Return Channel, Deep Color); HDCP 2.2 compliant
• Supports auto switch – the VS482B automatically switches to a newly plugged-in source
• Audio Return Channel (ARC) function – connects an HDMI cable to the ARC port to send audio from your source device to your audio/video receiver
• OSD for system configuration settings and information display

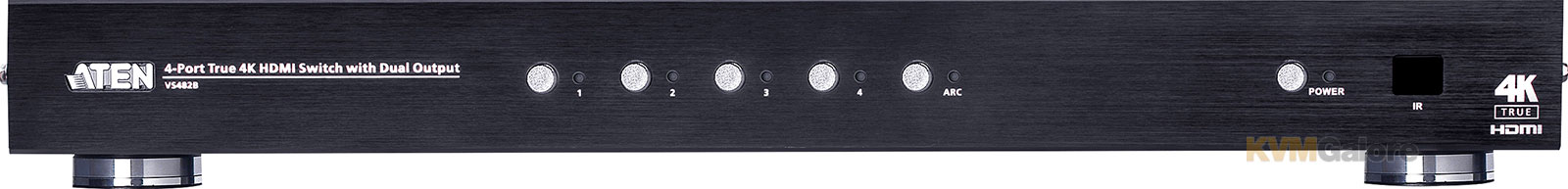

• Switching between HDMI input sources via front panel pushbuttons, IR remote control and RS-232 commands
• EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
• Built-in bi-directional RS-232 serial control port for high-end system control
• HDMI audio can be extracted to stereo audio and digital audio (optical/coaxial) outputs
• Supports 5.1 channel audio output
• Supports Consumer Electronic Control (CEC)
• Rack mountable

Package Content
1x VS482B
1x Power Adapter
1x IR Remote Control Unit
1x Mounting Kit
1x User Instructions
Video cables are not included

Required Cables (per port)
1x HDMI, male-male
