VS482

Model No. VS482 Usually ships in 7-10 business days or less

VS482
Buy this item and earn 258 ClubPoints.

4-port, dual-output HDMI digital AV switch

with two outputs and audio de-embedding technology


With more and more HDMI devices entering the Home Theater market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS482 4-Port Dual View HD Video Switch offers an easy and affordable way to add HDMI capabilities to your home theater system by allowing you to switch easily between up to four HDMI A/V sources that are connected to up to two HDMI displays.

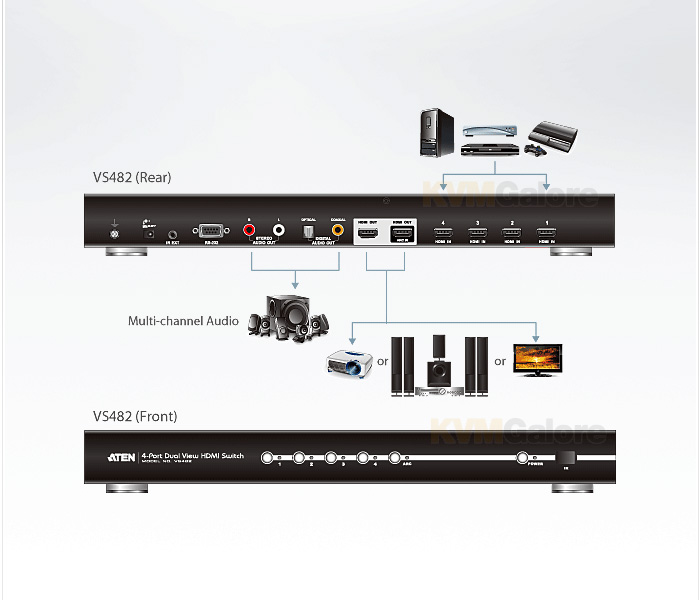

VS482 supports four (4) HDMI video input sources and two (2) HDMI output displays. It is designed for two HDTV or audio/video receiver (AVR) applications.

VS482 complies with HDMI standards, and is designed to support 3D content, as well as Audio Return Channel (ARC) function.

VS482 also offers instant switching and has OSD display controls for video, audio, system configuration and information.

Features and Benefits
• Allows up to four HDMI A/V sources to be connected to two HDMI displays
• HDCP compatible
• HDMI (3D, Audio Return Channel and Deep Color)
• Audio Return Channel (ARC) function – connect an HDMI cable to the ARC port to send audio from your source device to your audio/video receiver
• OSD for system configuration setting and information display
• Instant switching between HDMI input sources via front panel pushbuttons or through the RS-232 serial control port
• Feature EDID Expert technology to set up different configurations via different EDID mode
• Allows users to view the HDMI input source port / device for easy selection
• Supports superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); up to WUXGA (1920 x 1200)
• Built-in bi-directional RS-232 serial control port for high-end system control
• Extra audio from HDMI input signal that supports both optical and coaxial digital audio and one stereo audio output
• IR control signal extension – extend the reach of the IR controller by adding an IR receiver unit
• Rack mountable

Package Content
1x VS482
1x IR Remote Control Unit
1x Power Adapter
1x User Instructions
1x Mounting Kit
Video cables are not included

Required Cables (per port)
1x HDMI, male-male
