SN0148CO - Model No. SN0148CO - KVMGalore® | Tech Solutions Made Easy™
ATEN
  • MSRP $4,295.00
  • Savings$216.00
  • Our Price $4,079.00

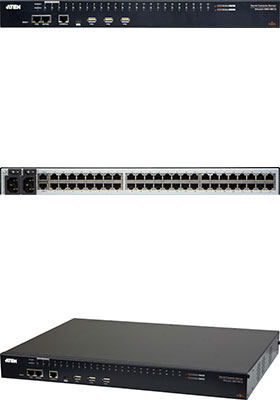

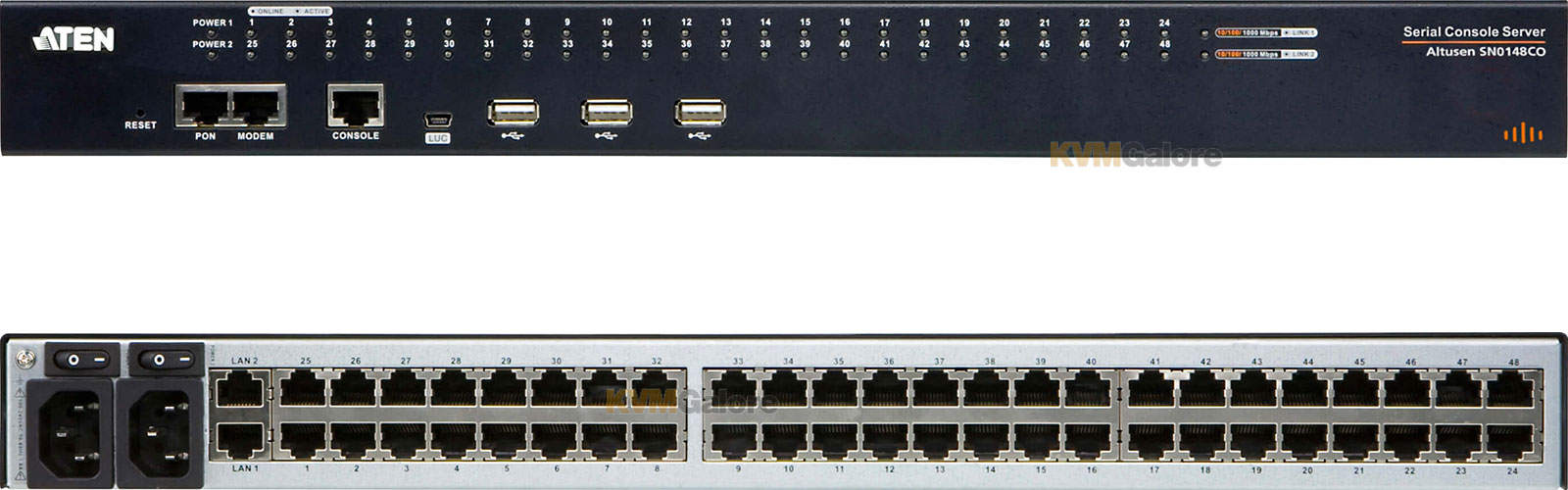

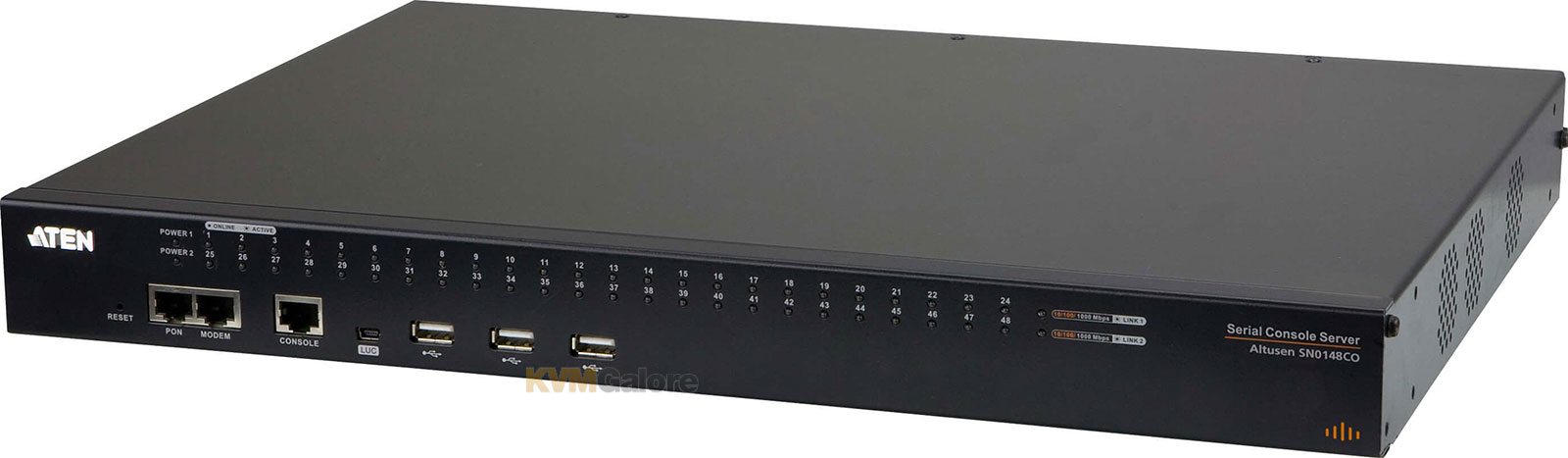

For additional views click on an image below
Image 1 of 3 view
Image 2 of 3 view

Image 3 of 3 view

SN0148CO

Model No. SN0148CO Usually ships in 7-10 business days or less

SN0148CO
Buy this item and earn 4,079 ClubPoints.

48-port serial console server/switch

with dual power/LAN; laptop console port; auto DTE/DCE; online/offline detection, TAA compliant


• Secure in-band and out-of-band remote serial console access
• Versatile serial operating modes – Console Management, Console Management Direct, Real COM Port, TCP Server/Client, UDP Server/Client, and Virtual Modem
• Auto-sensing DTE/DCE feature supports a direct connection to Cisco network switches (and other compatible devices) without rollover cables for more convenient IT infrastructure deployment
• Online/offline detection of connected serial devices (including terminal blocks) – automatically send event notifications when the devices are offline for device status monitoring

With dual power / LAN, SN0148CO integrates cutting edge technologies to provide convenient installation, secure serial device access, easy management and comprehensive control for data centers.

SN0148CO features Cisco pin-outs and auto-sensing DTE/DCE function, providing a direct connection to Cisco network switches (and other compatible devices) without rollover cables for even more time-saving IT infrastructure deployment. In addition, SN0148CO supports online detection of connected serial devices (including terminal blocks) for device status monitoring. A notification email alert will be sent to the administrator when connected devices are offline.

With dual Ethernet ports and power supplies, SN0148CO supports power redundancy as well as failover, or dual IP addresses access, ensuring 24/7 availability of access to serial devices. SN0148CO also offers dual DC options for more flexible implementation.

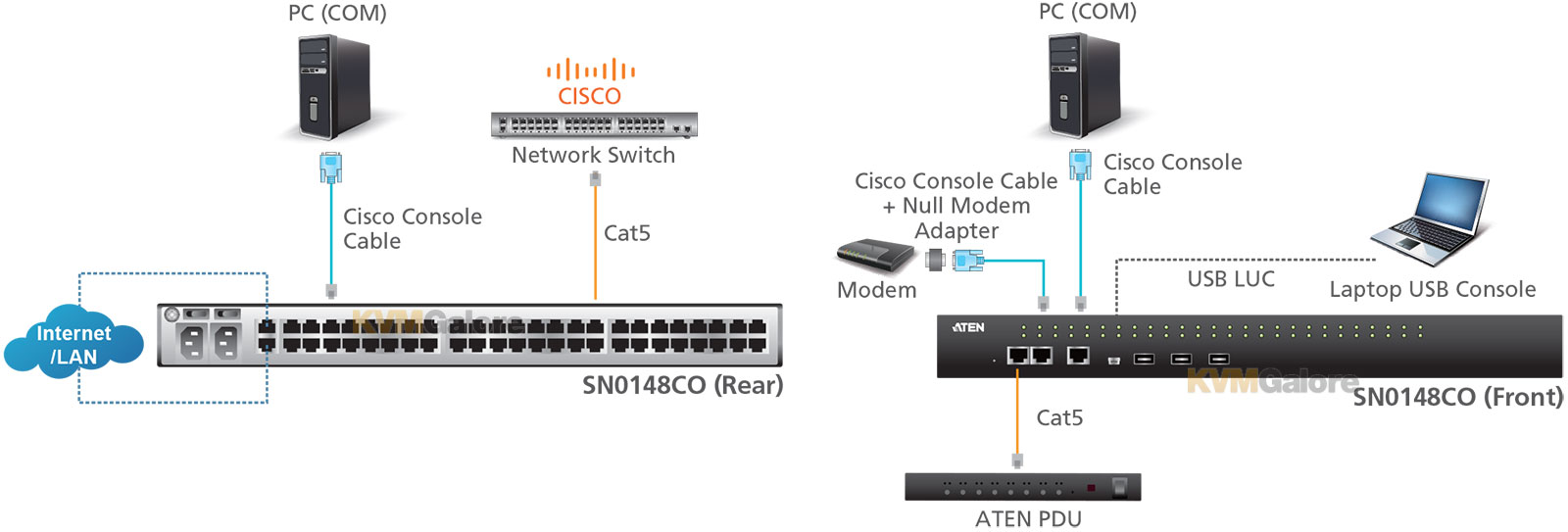

SN0148COSN0148CO serial console server offers both in-band and out-of-band (OOB) remote serial console access to servers and network devices via a direct Telnet/SSH client and Java viewer. The OOB management enables IT administrators to manage network devices (e.g. router, switch, UPS) in server rooms using management networks that are separated from the main/production networks. Where access difficulty occurs in the production network, the administrators can still access them via the console server. The serial console servers offer out-of-band access methods such as direct console connection from a local computer, USB console connection from a laptop, PSTN connection via modem, or hybrid network connection via the dual LAN ports (one connected to the production network and the other connected to the management network).

Implemented with various security technologies such as TLS 1.2 data encryption, RSA 2048-bit certificates, configurable user permissions for port access and control, local/remote/third-party authentication and authorization, IP/MAC address filter, and FIPS 140-2 certified cryptography, SN0148CO serial console server assures administrators the security for easy and high-level access. For instance, access rights and privileges can be applied to 8 serial ports individually. Data encryption is provided to ensure that information and control are always protected. Logging and alerting of system events help to quickly resolve issues and mitigate risks. While secured by the above examples, the consolidated password authentication simplifies management.

SN0148CO is used to connect serial devices to an Ethernet network to allow access and control of demanding applications that manage industrial control, data acquisition, environment monitoring, remote facility operations and equipment management. Multiple operational modes are available to administrators including Console Management, Console Management Direct, Real COM Port, TCP Server/Client, UDP Server/Client, and Virtual Modem. Furthermore, SN0148CO works in tandem with ATEN's PDU* remote power management systems. Both can be utilized through ATEN's CC2000 software to provide centralized serial device access and integrated power management.

With its comprehensive features, SN0148CO helps to maximize IT productivity, increase scalability, as well as reduce installation and operational costs with easy and secure remote management of serial devices. The serial console server saves you time and money by allowing administrators to manage their data centers from practically anywhere – minimizing travel and MTTR (Mean Time to Repair) costs, ensuring the highest availability for data center services.

System Accessibility and Availability
• Secure in-band and out-of-band remote serial console access
• Browser access with an intuitive GUI
• Terminal-based access with a menu-driven UI
• Modem dial-in/dial-back/dial-out access
• Front USB ports for storage or USB-based PC cards
• Laptop USB console (LUC) port for local console access via laptop
• Dual Ethernet ports allow fail control or dual IP address access
• Dual power supply

Serial Console Management
• Auto-sensing DTE/DCE feature supports a direct connection to Cisco network switches (and other compatible devices) without rollover cables for more convenient IT infrastructure deployment
• Online/Offline detection of connected serial devices (including terminal blocks) – automatically send event notifications when the devices are offline for device status monitoring
• Convenient and simple serial device access via selectable Telnet/SSH and third-party clients such as PuTTY
• Easy port access via selectable ActiveX or Java serial viewer
• Comprehensive viewer functions – copy/paste, logging, data import, macros, broadcasting and message board
• Sun Solaris ready – Sun "break-safe"
• Alert Strings – whenever one of the pre-defined strings matches the message sent from the serial devices, you will be informed by serial console server via SNMP Trap alert and/or an email
• Command filter – administrators can restrict users to execute only pre-defined commands
• Multiple users can simultaneously access the same port – up to 48 connections per port
• Modes for simultaneous access – Exclusive/Occupy/Share
• Integrates with ATEN PDU products for power management of each port

Security
• Supports secure login from browsers with TLS 1.2 data encryption and RSA 2048-bit certificates
• Configurable user permissions for port access and control
• Local and remote authentication and login
• Third-party authentication via RADIUS, TACACS+, LDAP/AD and Kerberos
• IP and MAC address filter for enhanced security protection
• High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
• Supports security level configuration – High, Medium-high, Medium or Custom, to ensure a fine granularity of network access control

System Management
• Systemconfi guration via web browser, Telnet/SSH client and local console
• System log and event login
• Event Destination – Event logs will be saved to Log server, Syslog server, and USB drive
• SNMP agent
• Event notifi cation – supports notifi cation of SMTP email, SNMP Trap, and SMS (with additional mobile devices)
• Backup / Restore system confi guration and upgradeable firmware
• Multi-browser support – Internet Explorer, Chrome, Firefox
• NTP for time server synchronization
• IPv4 / IPv6 support
• Integrates into CC2000 software for centralized data center management
• Integrates into CCVSR software for user session recording

Serial Device Management
• Versatile serial operating modes – Console Management, Console Management Direct, Real COM Port, TCP Server/Client, UDP Server/Client, and Virtual Modem
• Real COM driver for Windows 2000 or higher and Windows Server 2003/2008
• Real TTY driver for Linux
• Fixed TTY driver for UNIX**
• Supports baud rates of 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 28800, 38400, 57600, 115200, 230400 bps

Language
• Multi-language web-based GUI – available in English, German, Japanese, Korean, Russian, Simplified Chinese and Traditional Chinese

Package Contents
1x SN0148CO Serial Console Server
1x Laptop USB Console Cable
2x Power Cords (AC models)
1x Mounting Kit
2x Lok-U-Plugs
1x Lok-U-Plug Installation Tool
1x Foot Pad Set (4 pcs.)
1x User Instructions

* PG Series
** Fixed TTY Driver Supports 1) OpenServer (Sco Unix); 2) UnixWare 7, SVR 5; 3) UnixWare 2.1, SVR 4.2; 4) QNX 4.25, QNX 6; 5) FreeBSD; 6) Solaris 10; 7) AIX 5.x; 8) HP-UX 11i
