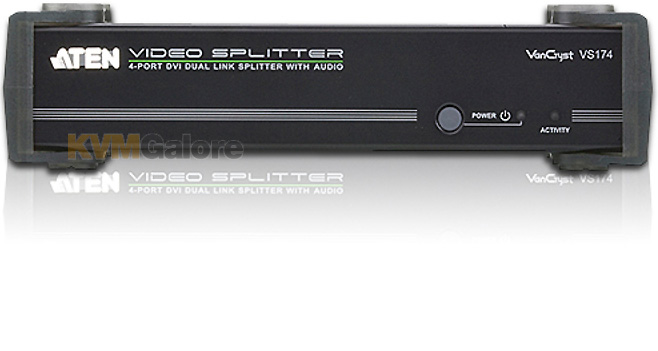

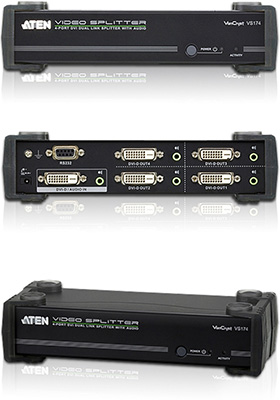

4-port DVI dual-link splitter with audio

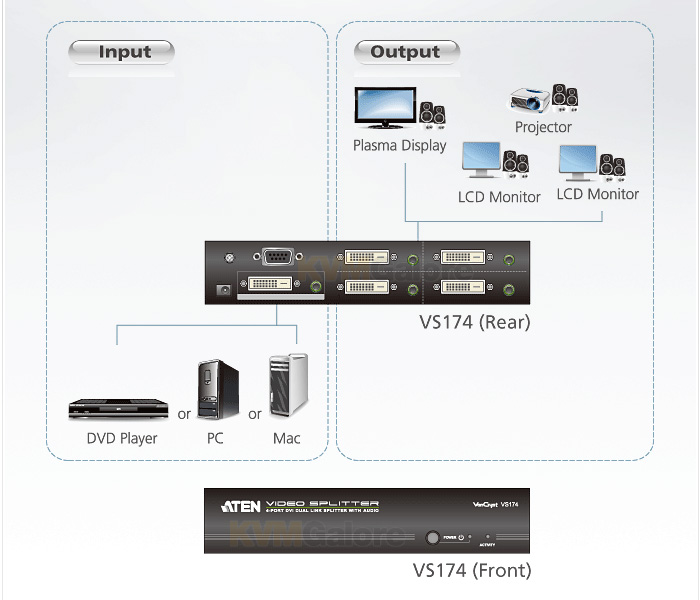

VS174 4-port DVI dual-link splitter with audio combines DVI quality video and audio, taking signals from an audio/video source and replicating them to four audio/video outputs. This video splitter uses dual-link technology, which offers high bandwidth capacity for added transmission power and faster refresh rates, thereby providing better video quality of viewing resolutions up to 2560x1600.

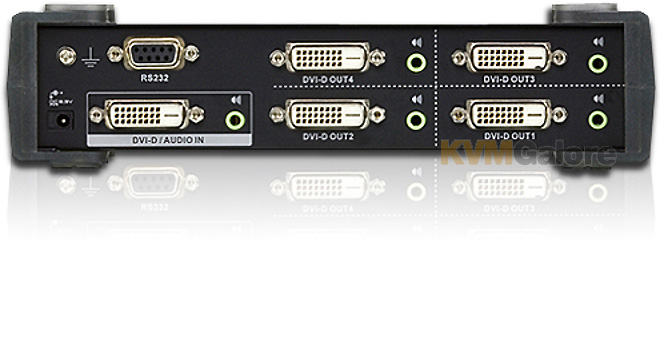

The built-in bi-directional RS-232 port on the rear panel allows the splitter to be controlled through a control unit, PC, and/or home automation/home theater software package for complete system integration.

VS174 is easy to operate and can be cascaded to three levels, handling up to 64 monitors, which makes them the ideal solution for situations such as:
a) Broadcasting video information to the public (news headlines,stock prices, airline and train schedules, etc.)
b) Company training facilities
c) Classroom instruction

Features and Benefits
• Displays DVI audio/video to multiple DVI-compatible monitors or projectors
• Superior video quality – up to 2560x1600 @ 60Hz and 1080p
• Cascadable to 3 levels – provides up to 64 video signals
• Audio enabled
• Features RS-232 serial port for command controls
• RS-232 Chain Control – use RS-232 commands to control cascaded devices via a DVI Cable
• EDID Expert – selects the optimum EDID settings via RS-232

Package Content
1x VS174 4-port DVI Dual Link Splitter with Audio
1x Power Adapter
1x User Manual
