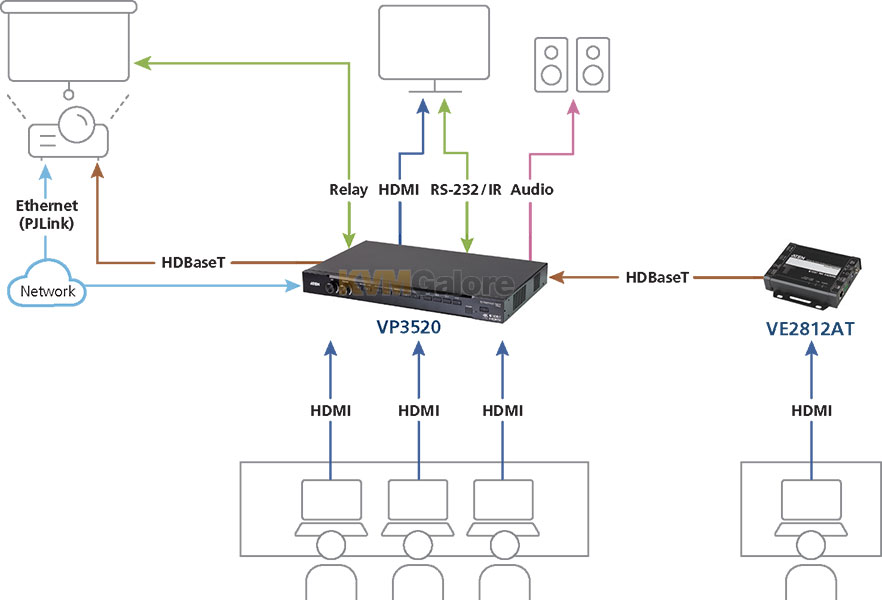

Image 3 of 4 - This diagram illustrates a meeting room application setup that enables the VP3520 to control the connected display devices via RS-232, PJLink, relay, and IR remote. The arrows in the diagram are to indicate the direction of data and/or command signals transmissions. view

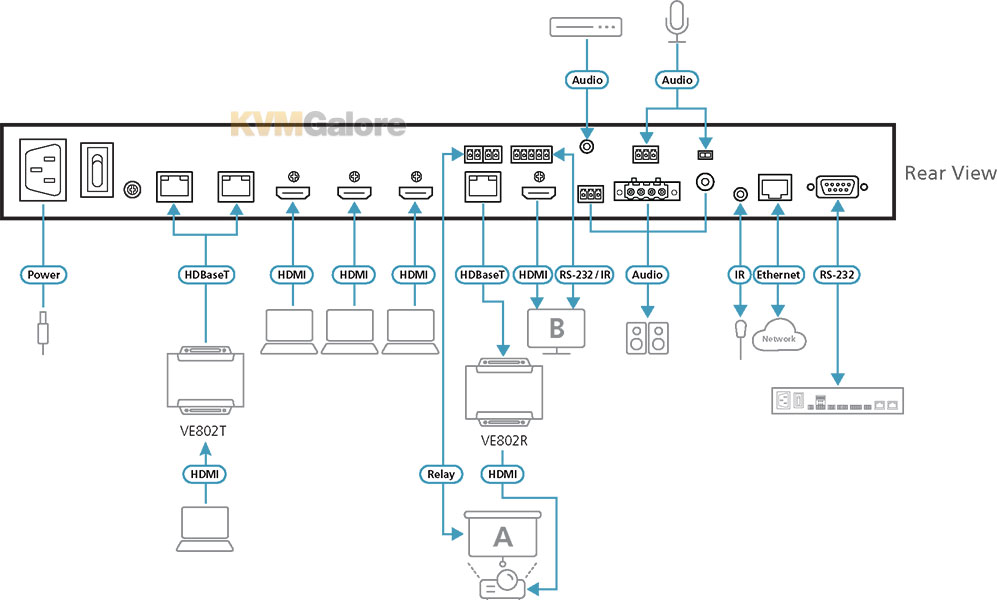

Image 4 of 4 - This diagram illustrates a single product connection with arrows to indicate the direction of data and/or command signals transmissions. view

VP3520

Model No. VP3520 Usually ships in 7-10 business days or less

VP3520
Buy this item and earn 2,845 ClubPoints.

5-input, 2-output True 4K seamless presentation matrix switch

with control


VP3520

• Superior video quality – True 4K resolutions up to 4096x2160 @ 60 Hz (4:4:4) (HDMI) / 4096x2160 @ 60 Hz (4:2:0) (HDBaseT)
• 4K scaler – features a 4K video scaler to convert input resolutions to the optimum display resolutions
• Auto display on / off control – supports display control through CEC, IR, RS-232, PJLink and controls projector screen through relay port
• Audio amplifier – 2x 10W built-in power amplifier with speaker outputs on terminal block connectors

5 Inputs
3x HDMI
2x HDBaseT (see list of compatible Transmitters below)

2 Outputs
1x HDMI
1x HDBaseT (see list of compatible Receivers below)

ATEN VP3520 is a multi-in-one presentation matrix switch that integrates a video matrix switch, 4K scaler, HDBaseT extender, and audio DSP functions into one compact device that easily mounts under a table or in a rack.

VP3520 seamless presentation matrix switch with control features the True 4K video resolutions of 4096x2160 / 3840x2160 @ 60 Hz (4:4:4) and HDR technology, guaranteeing crystal-clear images across two displays.

Supporting 4K @ 60 Hz, HDMI, and HDCP 2.2, VP3520 features Seamless Switch™ that employs an FPGA matrix architecture that ensures continuous video streams, real-time control, and stable signal transmissions.

With a built-in high-performance 4K scaler, VP3520 easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across the two displays.

With flexible audio de-embedding, VP3520 is designed with the audio routing flexibility to meet different application requirements. In a simple setup, HDMI audio can be connected and switched directly to display audio. For a more complex setup, the HDMI audio can be de-embedded to Audio Line Out in order to connect to your preferred in-room audio equipment.

Equipped with 5 digital inputs to one HDBaseT and one HDMI True 4K separate outputs, VP3520 enables users to control 2 displays at the same time and is designed to boost the efficiency and impact of professional presentations.

VP3520 provides users with the flexibility of using both active and passive speakers with its stereo line out port, coaxial port, and 2x 10W power amplifiers.

As for the control functions, VP3520 offers users multiple control options such as the front-panel pushbuttons, IR remote control, RS-232 commands, and web-based GUI. Moreover, VP3520 enables the control over AV devices such as TV displays, projectors, and monitors. It is ideal for all meeting spaces and education environments, including huddle rooms, classrooms, training rooms, or any other presentation setting such as exhibition galleries or hotels.

Display Control
• Auto display on / off control – supports display control through CEC, IR, RS-232, PJLink and controls projector screen through relay port
• Flexible control methods – triggered by source detection or 4 function keys on front panel

Digital AV Matrix Switching
• Supports 5 multi-format inputs – 3x HDMI, 2x HDBaseT
• 1x HDMI and 1x HDBaseT output
• Audio embedding – stereo audio can be embedded into display output or separated to stereo line out and coaxial audio output
• Audio de-embedding – HDMI / HDBaseT audio can be extracted to stereo line out
• Built-in audio DSP – supports microphone input with selectable 48 V Phantom Power and allows microphone input to be mixed with program audio and embedded into display output
• Automatically reduces program audio when a microphone signal is detected
• Auto switching – automatically detects and switches to a new source as soon as it is connected
• Audio amplifier – 2x 10W built-in power amplifier with speaker outputs on terminal block connectors

High-Definition Video with Optimum Output
• Superior video quality – True 4K resolutions up to 4096x2160 @ 60 Hz (4:4:4) (HDMI) / 4096x2160 @ 60 Hz (4:2:0) (HDBaseT)
• Supports 4K HDR
• 4K scaler –features a 4K video scaler to convert input resolutions to the optimum display resolutions
• Seamless Switch™ –features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions
• EDID Expert™ –automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across the connected devices
• HDCP 2.2 compliant

Versatile, Streamlined Operation
• Multiple control options – flexible control via front-panel pushbuttons, IR remote control, RS-232, and web-based GUI through Ethernet
• RS-232 and IR channel – allows AV device control over HDBaseT connection without additional cabling
• Supports stand-by mode for power saving and fast waking up
• Consumer Electronics Control (CEC) support

Extended Transmission over One Cable
• Power over HDBaseT (PoH) – remote powering over existing communication cable with selectable powering device
• Long-distance transmission – transmits digital AV signal, RS-232 commands, and IR control signals up to 70 m* via CAT-6/6a or ATEN 2L-2910 CAT-6 cables through HDBaseT Out port

Package Contents
1x VP3520 5 x 2 True 4K Seamless Presentation Matrix Switch with Control
1x IR receiver
1x IR remote control
1x Power cord
3x 2-pole terminal blocks
3x 3-pole terminal blocks
1x 4-pole terminal block
1x Rack mount kit
4x Foot pads
1x User instructions
Cables are not included - see list of compatible HDMI cables below)

* This is achieved using both the HDBaseT In and the HDBaseT Out ports on VP3520 with each extending the transmission up to 230 feet (70 m)
