CS22DP - Model No. CS22DP - KVMGalore® | Tech Solutions Made Easy™
ATEN
  • Compare to MSRP $123.00
  • You save$30.75
  • Our Price $92.25
For additional views click on an image below
Image 1 of 6 view
Image 2 of 6 view

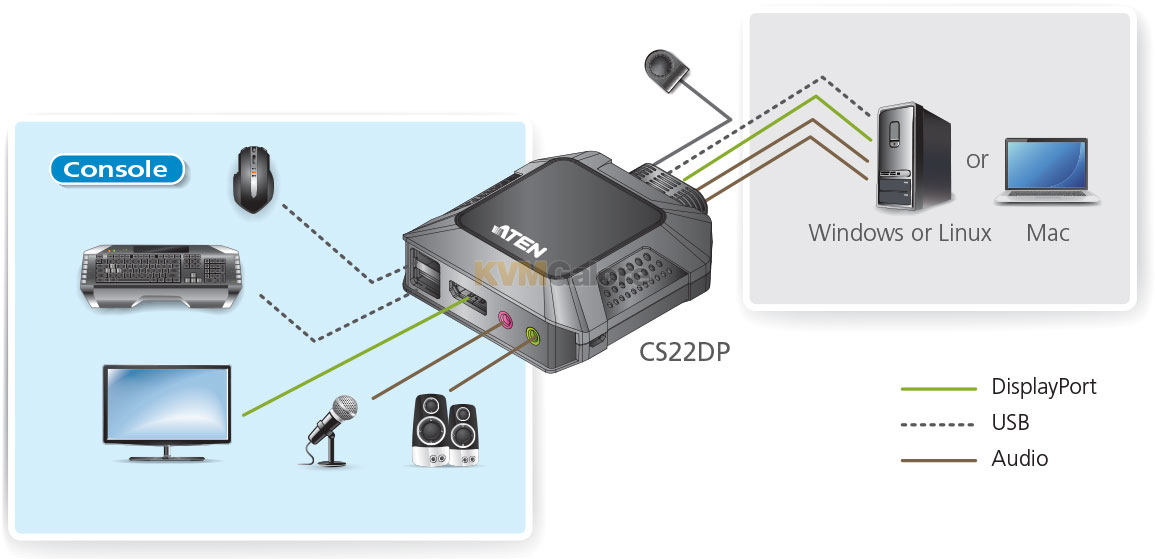

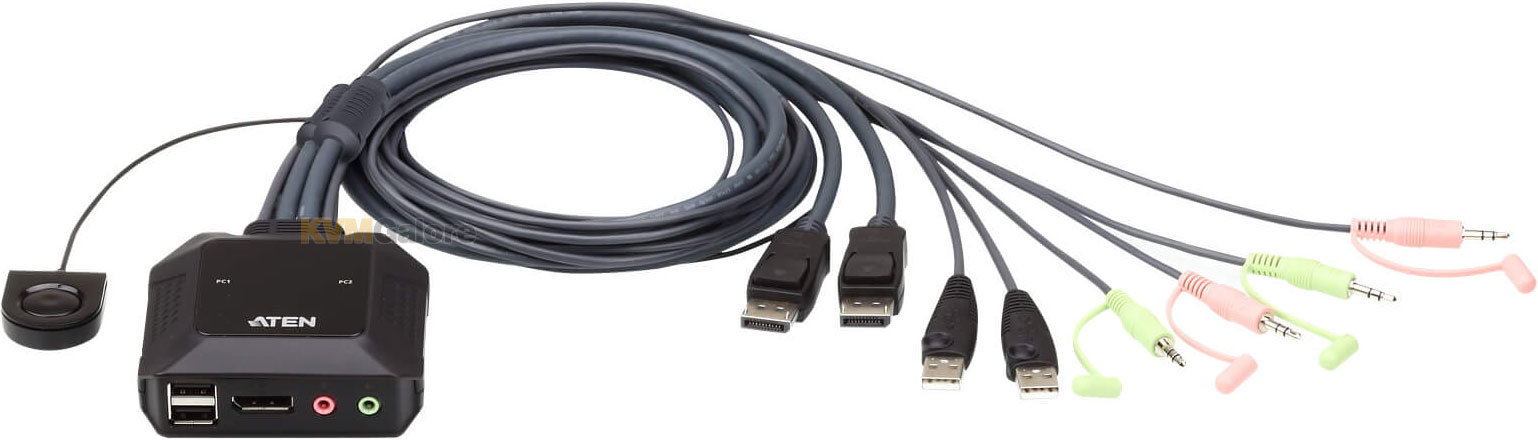

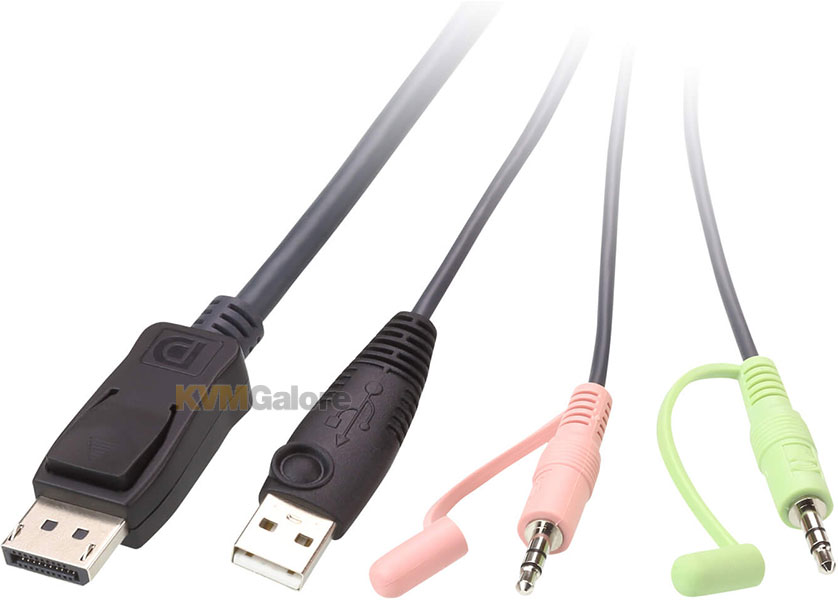

Image 3 of 6 - CS22DP molded KVM cables make a DisplayPort, USB, speakers and microphone connections to each of the two supported computers. view
Image 4 of 6 view

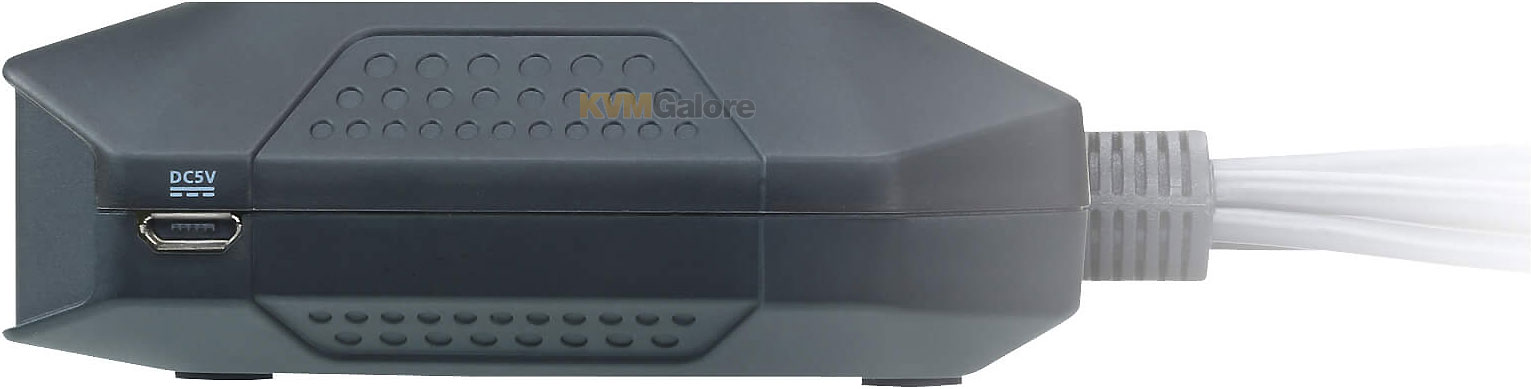

Image 5 of 6 - A Micro-USB port may be optionally used to power the switch, although this may not be required for typical use. view
Image 6 of 6 view

CS22DP

Model No. CS22DP In stock

CS22DP
Buy this item and earn 92 ClubPoints.

2-Port DisplayPort/USB cable KVM switch

with molded cables and remote port selector


• One KVM console controls two USB DisplayPort computers
• Superior video quality - up to 4096x2160 @ 30 Hz
• Supports DisplayPort Dual-Mode (DP++)* for directly outputting single-link HDMI and/or DVI signals via an externally powered DisplayPort-to-HDMI/DVI DP++ adapter
• Supports DisplayPort 1.2
• Bus-powered design

CS22DP 2-port USB DisplayPort cable KVM switch is a control unit that allows access to two computers from a single USB and DisplayPort console (keyboard, video and mouse) with audio. With CS22DP, you can quickly and effortlessly switch between two DisplayPort computers using a convenient remote port selector pushbutton.

CS22DP supports multiplatform operations allowing you to switch between two PCs running different operating systems. Moreover, the compact design allows for an efficient and tidy installation, providing an ideal space-saving solution to keep your desk well-organized.

It's fast and easy to set up CS22DP. Simply plug the KVM cables into their respective ports on CS22DP and on the computers. There is no need to install software or configure devices - just plug and play.

CS22DPFeatures and Benefits
• One KVM console controls two USB DisplayPort computers
• Superior video quality - up to 4096x2160 @ 30Hz
• Computer selection via remote port selector
• OS support: Windows, Mac and Linux
• Supports DisplayPort Dual-Mode (DP++)* for directly outputting single-link HDMI and/or DVI signals via an externally powered DisplayPort-to-HDMI/DVI DP++ adapter
• Supports microphone and speakers
• The USB ports can be used for USB peripheral sharing**
• Supports USB hot-plugging
• HDCP Compatible
• Bus-powered

* DisplayPort Dual-Mode (DP++) requires the use of a powered DP++ adapter. The graphics source must be DP++ compliant.
** CS22DP may require an external power supply via a micro USB port.
