IPEPS-PLUS: HDMI-USB KVM over IP gateway for secure, real-time remote access
from anywhere in the world
• Access multi-screen computers
• High performance video streaming up to 1920x1200 resolution
• Non-blocking access for up to 8 remote and one local users
• Compact metal case
• Independent operation: maintain full control even during boot up, BIOS level or computer crash states, it will work even if the controlled devices are not operational
• User authentication: LDAP integration with Active Directory is provided for enterprise level user authentication
• EDID management: intelligent EDID management allows the user to specify the video modes generated by the controlled device
• Local console: KVM connections are available for local user access

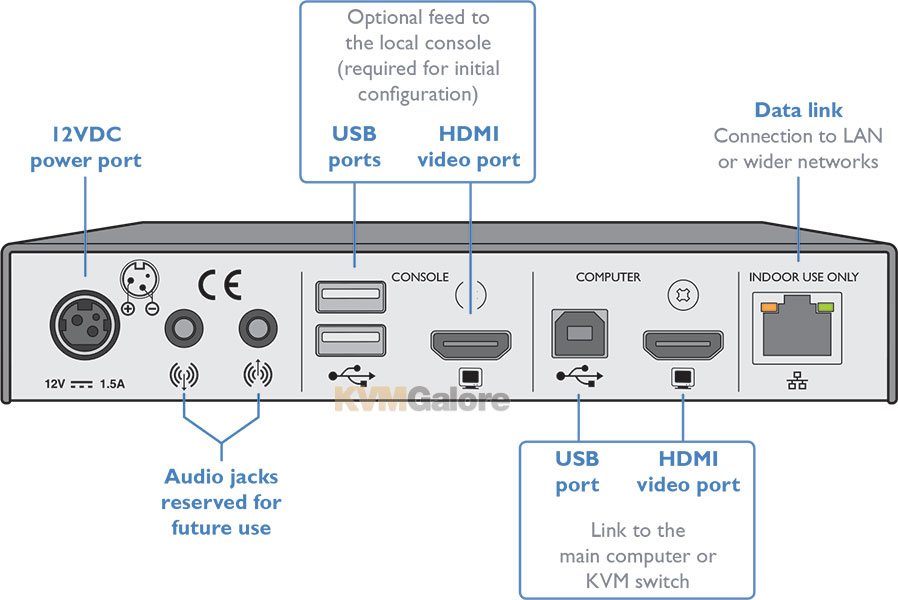

• KVM connections: HDMI 1.4 and USB (1.1, 2.0)
• At the PC user experience: digital techniques preserve the quality of the user experience, such that keyboard and mouse operate with the same responsiveness as working directly at the host computer, and the quality of the video is indistinguishable with minimal latency

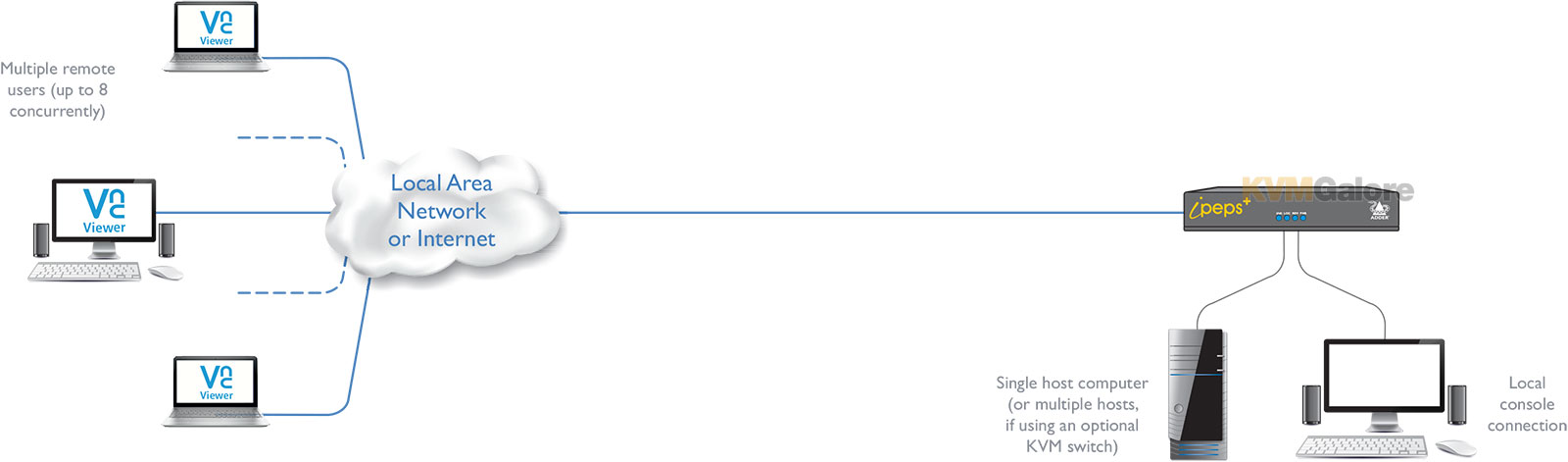

ADDERLink iPEPS+ is part of Adder's 'IPEPS' (IP Engine per Server) concept that delivers a complete, secure, non-blocking approach to computer management. Using the tried and trusted Real VNC® software, each AdderLink ipeps+ module provides highly secure remote connectivity across the Internet or corporate network. The AdderLink ipeps+ module naturally permits secure remote access to a single host, however, with the addition of a suitable KVM switch, a choice of many hosts becomes possible.
As a powerful and flexible digital KVM over IP product contained within a compact unit, iPEPS+ enables you to remotely access and control your critical computing hardware using your standard IP network from anywhere in the world, securely and remotely via the Internet or a corporate network. Using Real VNC client software that is specifically designed for secure, high performance KVM over IP applications, computers outside the network can be remotely and securely accessed.
Despite its small size, it offers high performance, including 1920x1200 video streaming at up to 30 frames per second, with non-blocking access for one local user and up to 8 remote users.
Gives full control even during boot up, BIOS level or computer crash states. ADDERLink iPEPS+ will work even if the controlled device is not operational.
High Video Performance
ADDERLink iPEPS+ will accept an HDMI input up to 1920x1200 resolution. It incorporates the renowned VNC Viewer from Real VNC, which allows frame rates of up to 30fps, depending upon available network bandwidth and content. Alternatively, it may be used with any VNC viewer that supports RFB v3 or v4. The unit may be attached to computers with DVI or DisplayPort DP++ (dual-mode) with a converter cable.
Enterprise grade security (using AES 128 or 256-bit encryption and RSA 2048-bit public key authentication) is employed as standard. This is further enhanced by VNC, which allows the creation of ciphered user communications.
ADDERLink iPEPS+ can create up to 16 user profiles with defined access rights. LDAP integration with Active Directory is provided for enterprise level user authentication. Up to 8 remote users may access the unit simultaneously, subject to available network bandwidth and content.
ADDERLink iPEPS+ has intelligent EDID management allowing the user to specify the video modes generated by the controlled device.
KVM connections are available for local user access. This may be useful during emergency and system maintenance activities.

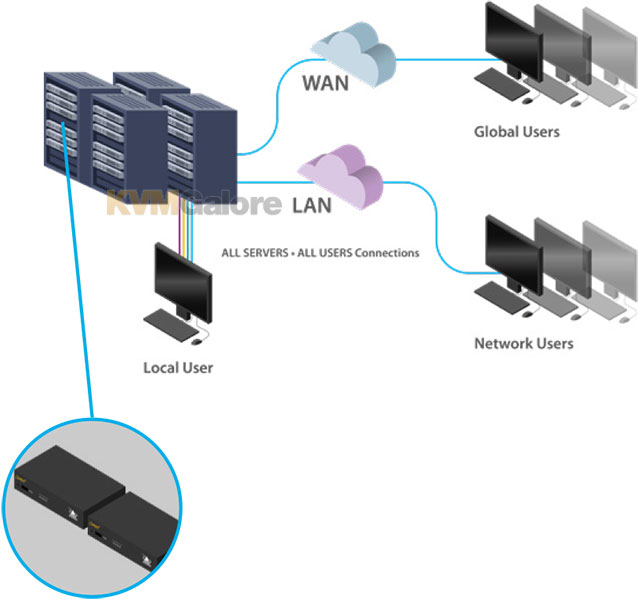

Multi-head feature allows you to configure connection to a multi-head computer that has up to 4 displays. A separate ipeps+ module is used to connect to each head, each accessed by a separate VNC session. All ipeps+ modules are required to have a video and USB connection to the host computer.
Remote Gateway to ADDERLink Matrix Products
ADDERLink iPEPS+ may be used as a remote gateway into ADDERLink INFINITY, DDX and XDIP matrix systems, plus ADDERView AV4Pro switch. This will allow remote users to access any computer connected to the switch.
In the Box
1x ADDERLink iPEPS+ module
1x 12V power supply with locking connector plus country specific power cable [PSU-IEC-12VDC-1.5A]
1x HDMI cable 6.5 feet
1x USB Type-A to Type-B cable 6.5 feet
1x Quick setup guide
8x Self-adhesive rubber feet
* Multi-head operation relies upon the host computer using absolute mouse mode.
