8-Port USB-VGA KVM Switch w/ Audio

Model No. SV831DUSBAU In stock

8-Port USB-VGA KVM Switch w/ Audio
Buy this item and earn 405 ClubPoints.

SV831DUSBAU: Control up to 8 VGA-USB computers from a single keyboard, mouse and monitor

audio cables included


• USB keyboard and mouse combo/wireless setups supported on one USB connection
• Rugged, all metal 1U rack-mount chassis for use in harsh environments and server cabinets
• OSD security option allows selected KVM ports to be password-protected from unauthorized use
• Auto-scan function automatically switches between connected PCs sequentially
• Hot-key function allows easy computer access
• Identifies and selects computers by the names assigned via the OSD menu

The TAA compliant SV831DUSBAU 8-port rack-mount USB-VGA KVM switch (with audio cables included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features audio and microphone ports to switch between audio signals as well as PC ports.

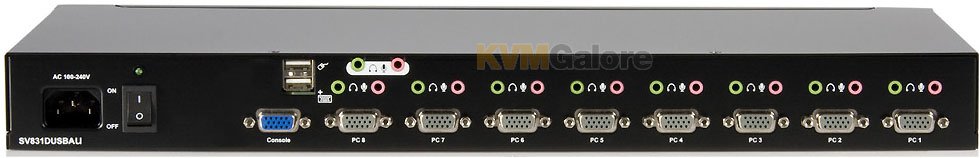

Based on a 1U rack-mountable slim form factor design, this 8-port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.

To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.

SV831DUSBAU only works with specific 2-in-1 VGA and USB cables (sold separately - see listing below).

The StarTech.com Advantage
• Rugged, rack-mountable 1U metal chassis is ideal for any environment
• User friendly access through the OSD saves configuration time and frustration
• Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver

Applications
• Add single console administration to your co-location/ISP facility saving you time and money
• Create a scalable, streamlined access solution in your datacenter or server farm
• Perfect for manufacturing line computer control, simplifying access to multiple systems
• Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
• Access multiple security and DVR control systems from one place
• Monitor multiple systems simultaneously in software QA labs

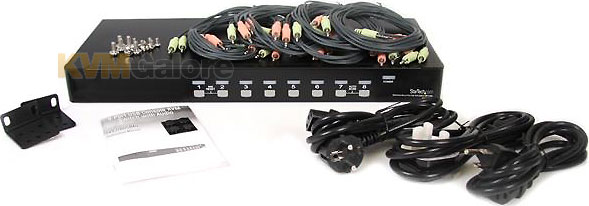

Included in Package
1x KVM switch
2x Mounting brackets
8x 6-foot green audio cables
8x 6-foot red microphone cables
4x Foot pad
1x Power cords
1x User manual
KVM cables not included - see listing of compatible KVM cables below



Listed below are additional products to consider which are compatible with 8-Port USB-VGA KVM Switch w/ Audio. These items may be required to complete your system.

2-in-1 Ultra Thin VGA-USB KVM Cable, 6-feet

1) 2-in-1 Ultra Thin VGA-USB KVM Cable, 6-feet

    Model No. SVUSBVGA6

$11.69

MSRP: $18.00 - You save $6.31

StarTech
2-in-1 Ultra Thin VGA-USB KVM Cable, 10-feet

2) 2-in-1 Ultra Thin VGA-USB KVM Cable, 10-feet

    Model No. SVECONUS10

$16.99

MSRP: $20.00 - You save $3.01

StarTech
2-in-1 Ultra Thin VGA-USB KVM Cable, 15-feet

3) 2-in-1 Ultra Thin VGA-USB KVM Cable, 15-feet

    Model No. SVECONUS15

$25.28

MSRP: $32.00 - You save $6.72

StarTech
