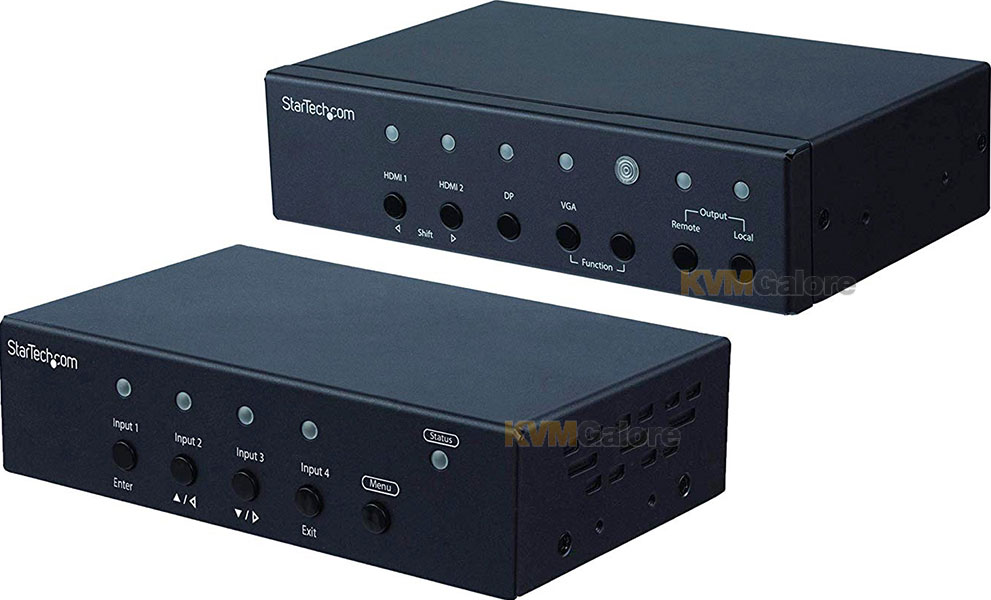

Image 1 of 6 - 4x Video-Input with Audio to HDMI Switcher/Scaler/Extender local unit (top) and remote unit (bottom), front view. view

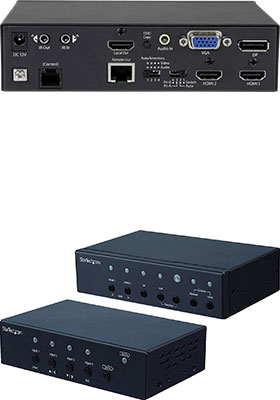

Image 2 of 6 - 4x Video-Input with Audio to HDMI Switcher/Scaler/Extender local unit, back view. view

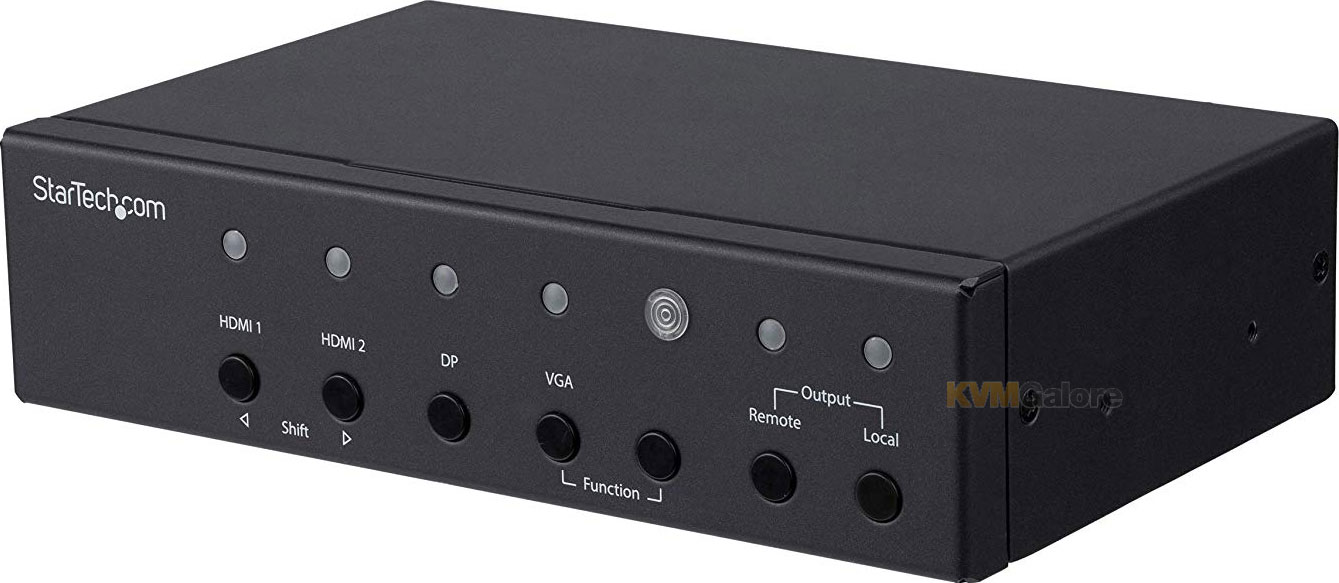

Image 3 of 6 - 4x Video-Input with Audio to HDMI Switcher/Scaler/Extender local unit, front view. view

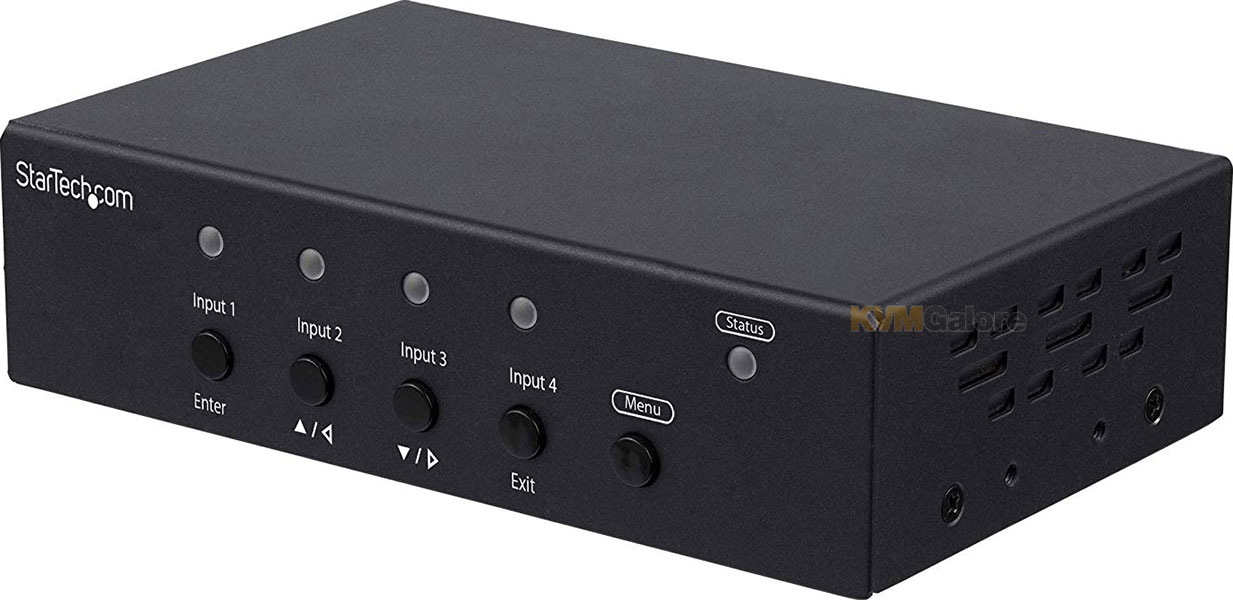

Image 4 of 6 - 4x Video-Input with Audio to HDMI Switcher/Scaler/Extender remote unit, front view. view

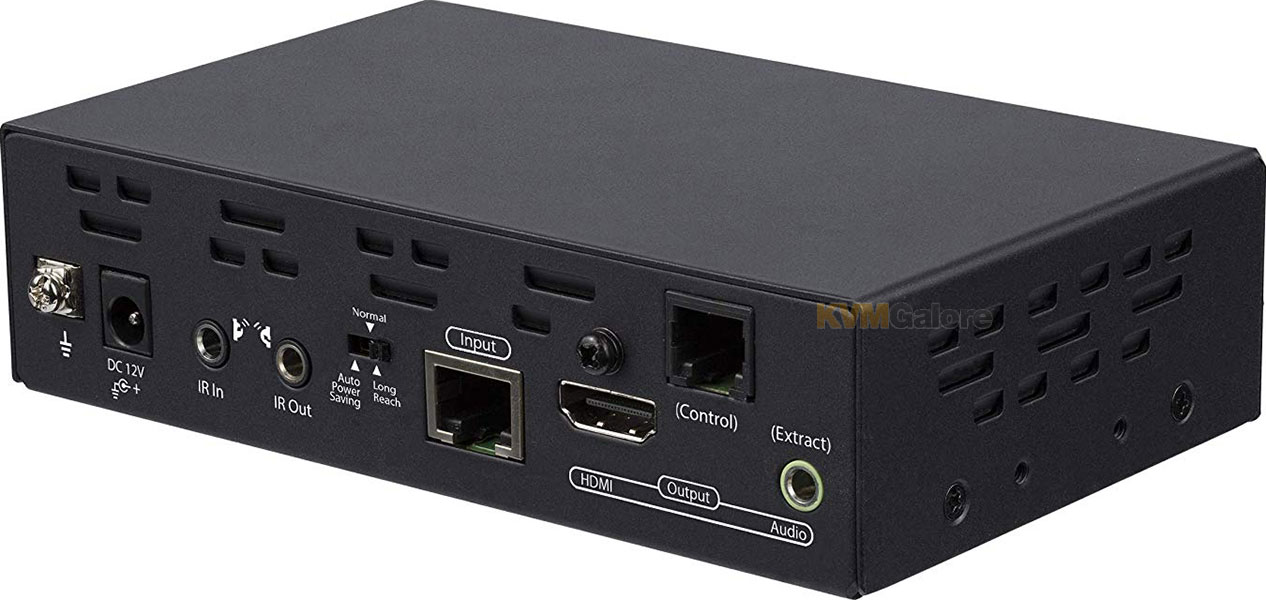

Image 5 of 6 - 4x Video-Input with Audio to HDMI Switcher/Scaler/Extender remote unit, back view. view
Image 6 of 6 view

4x Video-Input with Audio to HDMI Switcher/Scaler/Extender

Model No. ST121HDBTSC In stock

4x Video-Input with Audio to HDMI Switcher/Scaler/Extender
Buy this item and earn 723 ClubPoints.

ST121HDBTSC: Switch between four analog/digital AV sources, scale the video and output to two HDMI screens

one local; one extended up to 230 feet away, with automatic or priority switching


• Save hassle and expense with a switch and extender in one device, that accommodates VGA, DisplayPort and HDMI inputs
• Ensure perfect video connectivity, every time, with a built-in video scaler
• Get crystal-clear picture quality at impressive distances with 1080p resolution at up to 230 feet

Inputs
2x HDMI
1x DisplayPort
1x VGA + audio

Output
1x HDMI
1x HDBaseT

This TAA multi-input HDBaseT™ extender kit extends your A/V signals to a remote location up to 230 feet (70 m) away. It features a built-in switch and scaler, so you can choose which video source is output from four independent video sources (2x HDMI, 1x VGA and 1x DisplayPort).

Seamless Integration and Operation
The HDBaseT extender's built-in converter switch lets you connect two HDMI sources, a VGA source, and a DisplayPort source to the same remote and local HDMI display. You don't need adapters or scalers, or a video switch.

Along with manually switching your video source with easy-to-use buttons, the video extender ensures hassle-free operation with two auto-switching modes
• Auto-detect switching, which detects and selects a newly connected device, and
• Priority selection, which lets you choose which port is activated by default, for automatic switching

Built-In Video Scaling
Newer HDMI displays no longer support legacy resolution video signals. Without support for these common VGA resolutions, your source may not work with your new HDMI display. This HDBaseT extender features a built-in scaler that scales the image to 1080p, so you can rest assured your HDMI display will intuitively work with any source that's connected through it. Scaling is easy to do, with an intuitive OSD that's accessible using buttons on the remote receiver.

High-Definition 1080p Video at 230 Feet (70 Meters)
The extender kit maintains your HD picture quality, even at 230 feet (70 m) away from your video source, ensuring you can provide the best possible viewing experience.

Applications
• Create brilliant digital signage displays in large public settings such as hospitals, shopping centers or stadiums
• Automatically switch between your set-top box or computer, for remote entertainment displays, in hospitality settings such as restaurants, bars or hotels

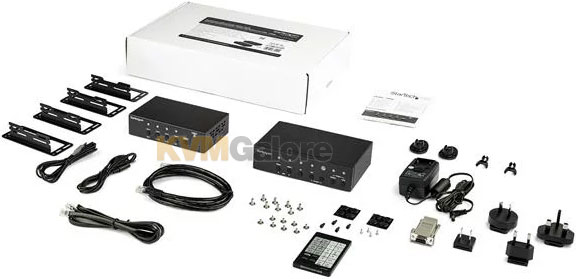

Included in Package
1x Multi-input HDBaseT transmitter
1x HDBaseT receiver
1x IR Remote control
1x RJ-11 to RS-232 adapter
1x CAT-5 cable
1x RJ-11 cable
2x Sets of mounting brackets
1x Universal power adapter (NA/JP, EU, UK, ANZ)
1x IR blaster
1x IR receiver
8x Rubber feet
1x Quick-start guide
