2-Port DisplayPort KVMP Switch

Model No. SV231DPUA In stock

2-Port DisplayPort KVMP Switch
Buy this item and earn 269 ClubPoints.

SV231DPUA: Share keyboard, mouse, and DisplayPort display between two HD multimedia systems

with audio support and USB 2.0 hub for peripheral sharing

• 7.1 channel high definition audio support plus dual channel analog stereo and microphone
• Full plug-and-play support with USB keyboards, mice, and connected peripherals
• Hotkey and push-button switching
• Native DisplayPort resolution of 2560x1600 @ 60Hz; beyond 1080p
• OS independent - No driver or software required
• Supports a maximum resolution of 3840x2400 at lower refresh rates
• Supports DDC2B for monitor detection
• Supports hot-plug, un-plug and link status-failure detection
• Integrated 2 port USB 2.0 hub
• User-defined scan time intervals
• VESA and CEA compliant
• Fully compatible with Mini-DisplayPort, HDMI, and DVI adapters
• 3 years warranty

SV231DPUA 2-port USB DisplayPort KVM switch with audio combines next generation display standards with seamless KVM control of up to 2 connected PC or Mac computers.

Featuring DisplayPort resolutions of 2560x1600 @ 60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.

Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

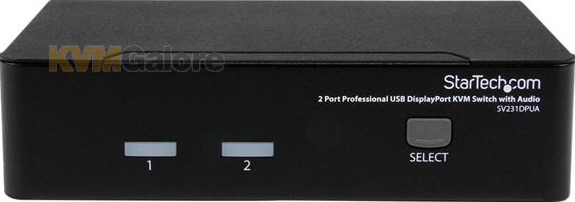

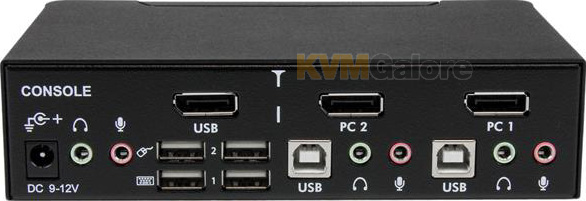

A simple yet comprehensive solution, the 2-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.

The StarTech.com Advantage
• USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices (printers, scanners, etc.)
• Compatible with Mini-DisplayPort adapters, making it suitable for Apple Macbook connectivity
• Support for digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections for added versatility

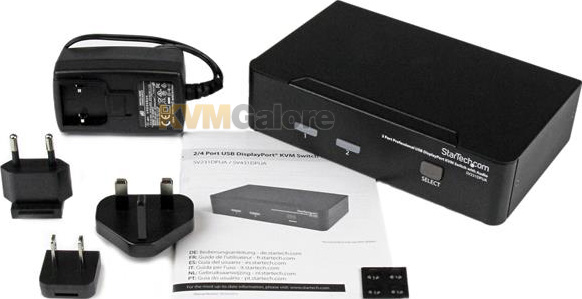

Included in Package
1x 2 port DisplayPort KVM with Audio
1x Rubber Feet
1x Universal Power Adapter (NA/UK/EU)
1x Manual
Cables are not included

Required Cables (per port)
1x DisplayPort, male-male
1x USB, Type-A to Type-B
2x 3.5mm audio cables, male-male
