Model No. 5G2A2CPDB-USB-C-HUB In stock

Buy this item and earn 50 ClubPoints.

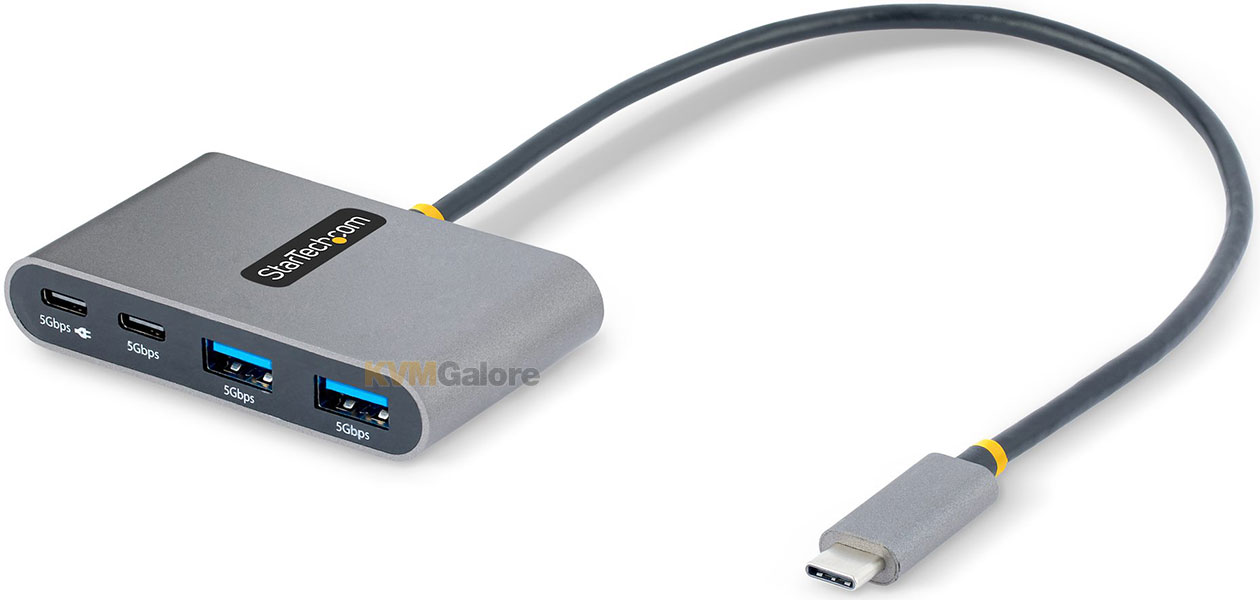

4-port, USB 3.2 Gen 1 (5Gbps) USB-C hub with 100W Power Delivery

add 2x USB Type-C and 2x USB Type-A ports to a USB-C/Thunderbolt 3/4 enabled desktop/laptop

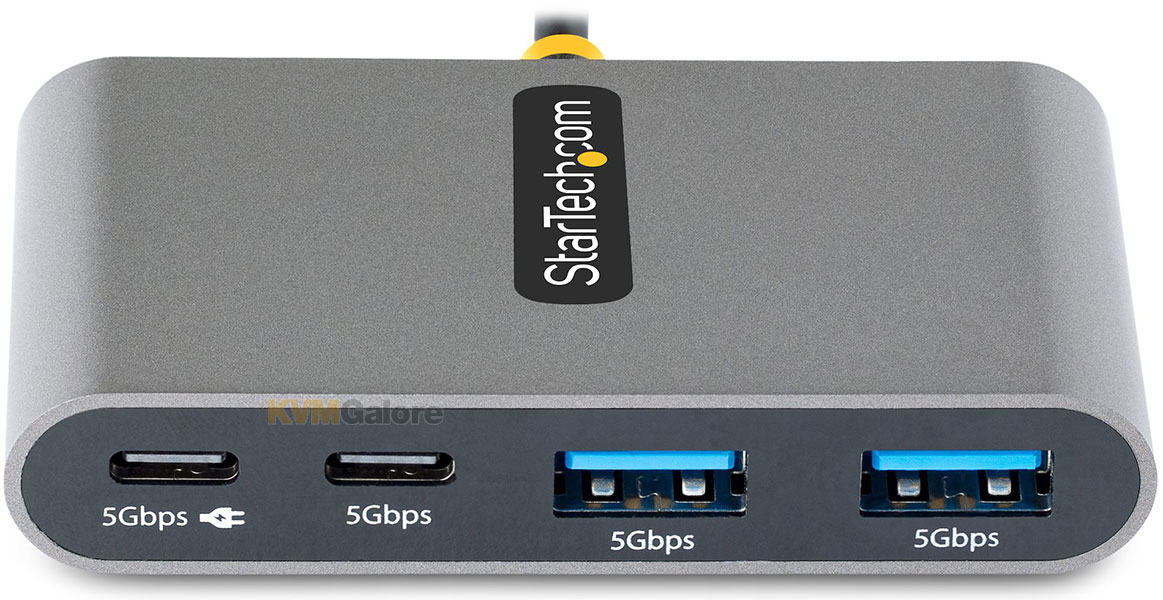

• Expand your laptop or MacBook connectivity through USB-C by adding two USB Type-C and two USB Type-A (5Gbps) ports
• 100W Power Delivery pass-through
• Overcurrent protection (OCP) and wake on USB
• Up to 15W of power shared dynamically between 4 downstream ports
• Compact housing
• Bus-powered
• Attached extra-long host cable
• Supports all major operating systems including Windows, macOS, Linux, iPadOS, ChromeOS, Android
• Compatible with Thunderbolt 3/4 and USB 4 host devices
• Works with USB 2.0

This USB-C hub with 100W USB Power Delivery pass-through adds four USB 3.2 Gen 1 (5Gbps) ports (2x USB Type-A, 2x USB Type-C) to a USB-C/Thunderbolt 3/4 enabled computer.

Connect the USB hub to a USB-C port on a laptop, using the built-in 1 foot (30 cm) USB Type-C host cable.

Charge a host laptop by connecting the host laptop's USB-C power supply to the USB Power Delivery (PD) 3.0 port.

Backward compatible with USB 2.0 (480Mbps) devices ensures support for a wide range of modern and legacy USB peripherals (e.g., external storage devices - thumb drives, HDDs/SSDs, HD cameras, mice, keyboards, webcams, and audio headsets).

The USB hub supports Wake on USB and is compact in size, facilitating portability when travelling.

USB Power Delivery Pass-Through
This USB hub features USB Power Delivery 3.0 pass-through (up to 100W). This features enables the USB-C hub to provide the option to to connect a USB-C power source (up to 100W) to power and charge a laptop. PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when switching power sources (USB-C power adapter to bus power).

The USB hub can operate with a USB-C power adapter connected or with bus-powered alone. It draws up to 15W of power from the USB-C host computer that's dynamically shared across the downstream ports. For added protection to this USB hub and the connected host device, the USB hub features Overcurrent Protection (OCP). OCP prevents faulty USB peripherals from drawing more power than is safely allocated.

Plug and Play
This device is compatible with all major operating systems, including Windows, macOS, ChromeOS, iPadOS, and Android. The hub is automatically detected, configured, and installed upon connection to a host computer. This ensures automatic installation and setting configuration with any USB-C laptop, including Thunderbolt 3, Thunderbolt 4 and USB 4 computers such as Apple MacBook (Intel/M1/M2), Lenovo X1 Carbon and Dell XPS.

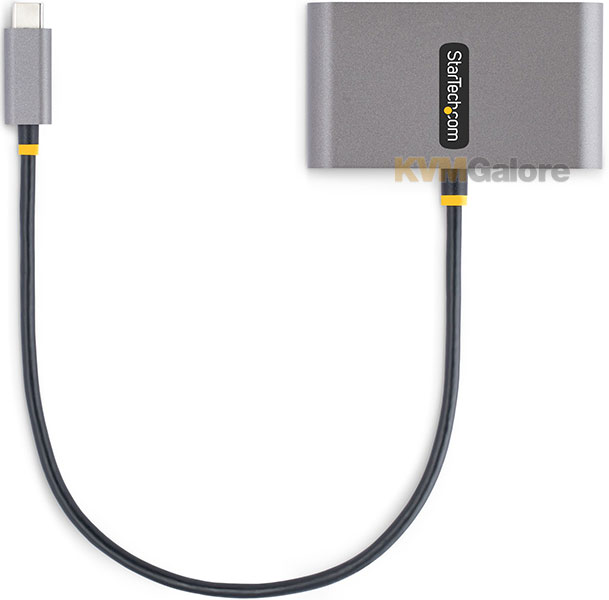

The built-in extra-long 1 foot (30 cm) USB Type-C host cable ensures easy setup and reduces connector strain on 2-in-1 devices such as the Surface Pro 7, iPad Pro, HP Elite X2 and laptops on riser stands.
