SPS-U5P - Model No. SPS-U5P-S - KVMGalore® | Tech Solutions Made Easy™
SmartAVI
  • MSRP $1,799.00
  • Savings$450.00
  • Our Price $1,349.00
FREE GROUND SHIPPING!

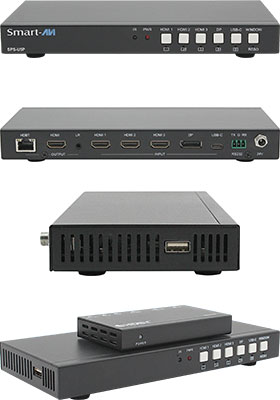

For additional views click on an image below

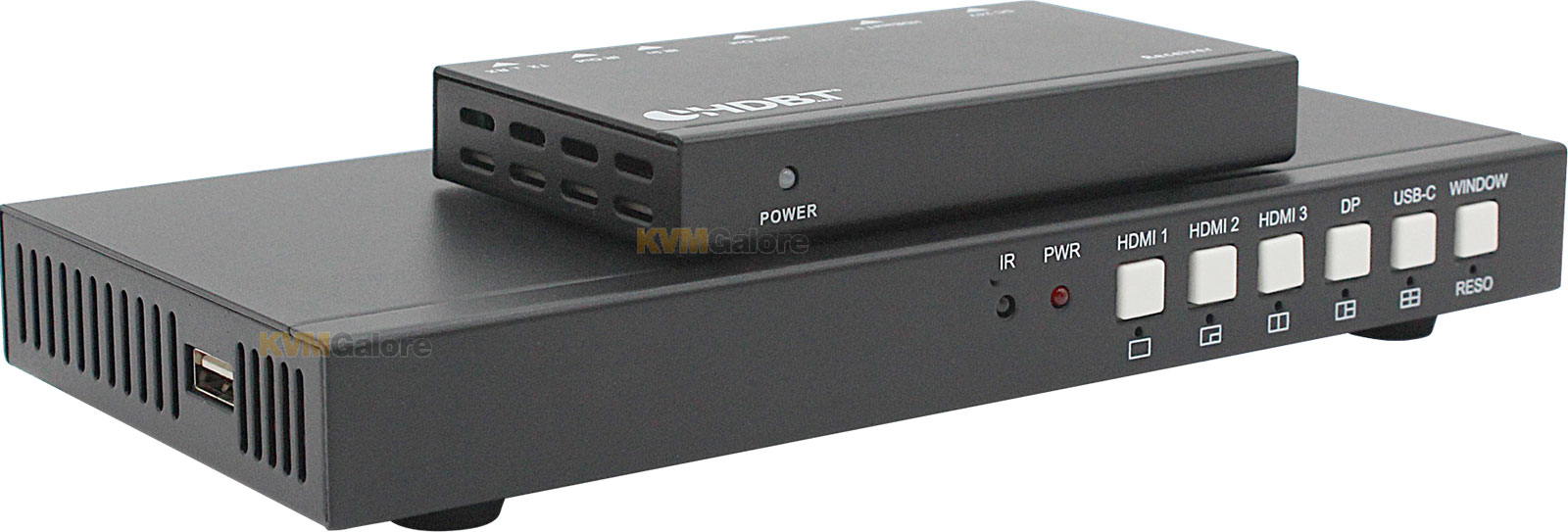

Image 1 of 5 - SPS-U5P shown with an optional HDBaseT Receiver (purchased separately). view

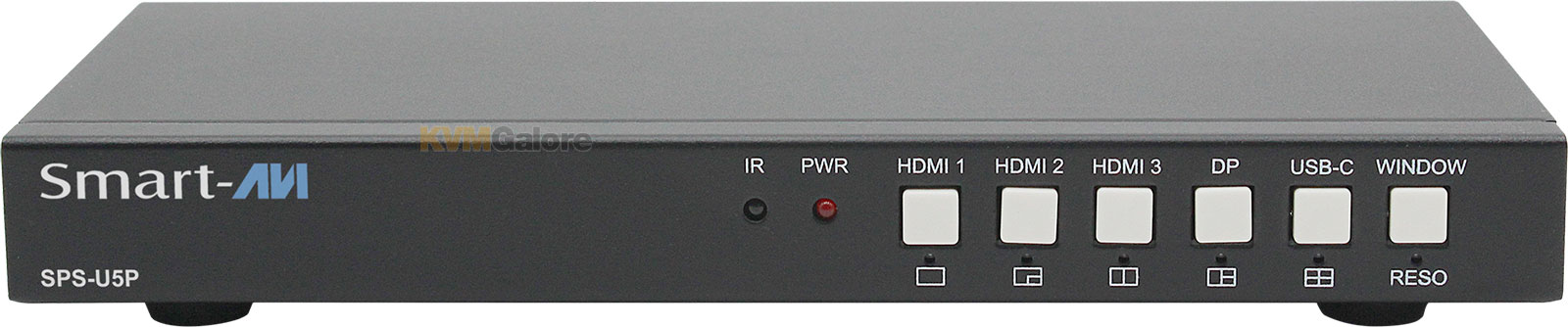

Image 2 of 5 - SPS-U5P front view. view

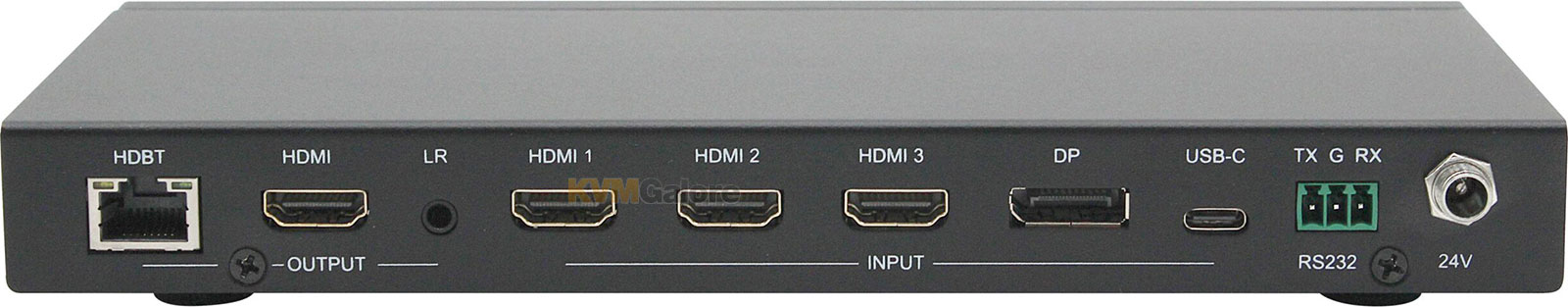

Image 3 of 5 - SPS-U5P back view. view

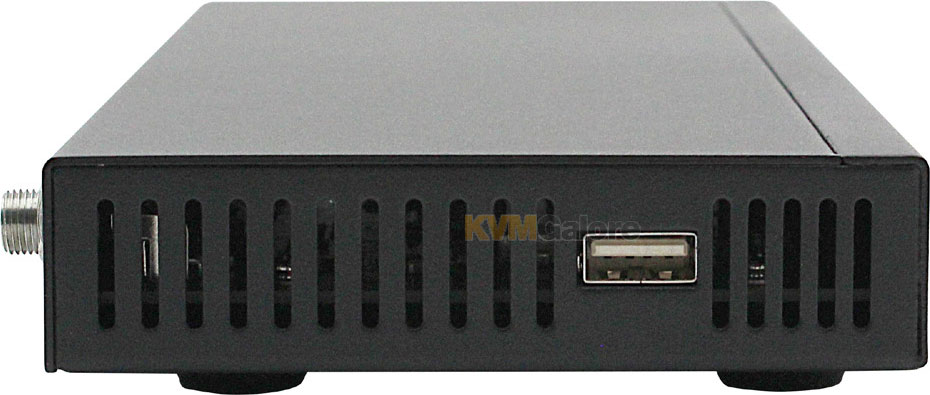

Image 4 of 5 - SPS-U5P side view. USB port is used for firmware upgrades. view

Image 5 of 5 view

SPS-U5P

Model No. SPS-U5P-S Ships in 7-10 business days or less

SPS-U5P
Buy this item and earn 1,349 ClubPoints.

5-port Seamless Ultra-HD presenter video switcher

with multi-viewer

5 Video Inputs
3x HDMI
1x DispalyPort
1x USB-C (video only)

2 Video Outputs
1x Local HDMI
1x HDBaseT over CATx

SPS-U5P is a 5-input presentation switcher built for presentation and conference room systems, classrooms, and collaborative spaces where multiple systems need to be accessed and switched seamlessly, supporting efficient, real-time transitions between connected video sources.

It supports HDMI, DisplayPort, and USB-C inputs, allowing users to connect laptops, desktop computers, and other AV devices, and display them on a single screen.


SPS-U5P supports resolutions up to 4K/60.

SPS-U5P supports five multi-view display modes for flexible presentation workflows, including Single (full-screen), PbP (Picture-by-picture, or dual-mode) PiP (Picture-in-picture), 4-Window (4xWin or quad-mode), and 3-Window (3xWin or tri-view mode) layouts, with customizable layouts via RS-232 and up to 20 savable/recallable scenes.

SPS Multi-View Modes

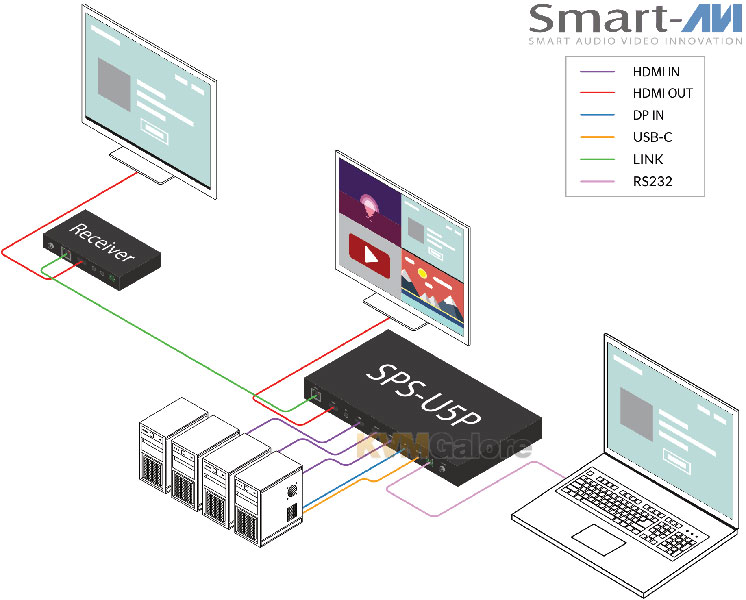

A mirrored (optional) extended output allows video to be transmitted to a remote display over a CATx cable while maintaining high-resolution signal quality.

Features ane Benefits
• Seamless switching on Single window display mode
• Fast switching on non-Single window display modes
• Supports HDMI 2.0, HDCP 2.2, and resolutions up to 4096x2160 @ 60Hz
• Supports LPCM, AC3, DD+, DTS, and DTS-HD audio formats, up to 7.1 audio channels
• Extensive EDID and HDCP handling
• Supports volume control and independent audio selection
• Supports 5 multi-view display modes: Single, PIP, PbP, 3xWin, and 4xWin
• An additional remote screen or projector can be located up to 230 feet (70 m) away at 1080p, or up to 130 feet (40 m) at 4K resolution using an optional HDBaseT Receiver (purchased separately - see listing below)
• 24V PoC support for remote CATx HDBaseT Receiver
• Control via front panel push-buttons and RS-232

In the Box
1x SPS-U5P Seamless presentation switcher
1x PS24VDC1A 24V/1A power adapter
