SM-MST-4D - Model No. SM-MST-4D-S - KVMGalore® | Tech Solutions Made Easy™
SmartAVI
  • MSRP $539.00
  • Savings$135.00
  • Our Price $404.00

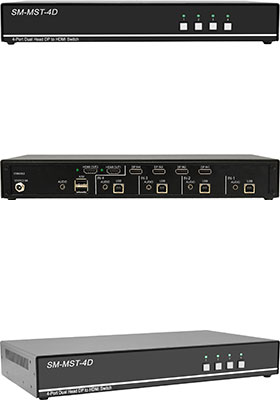

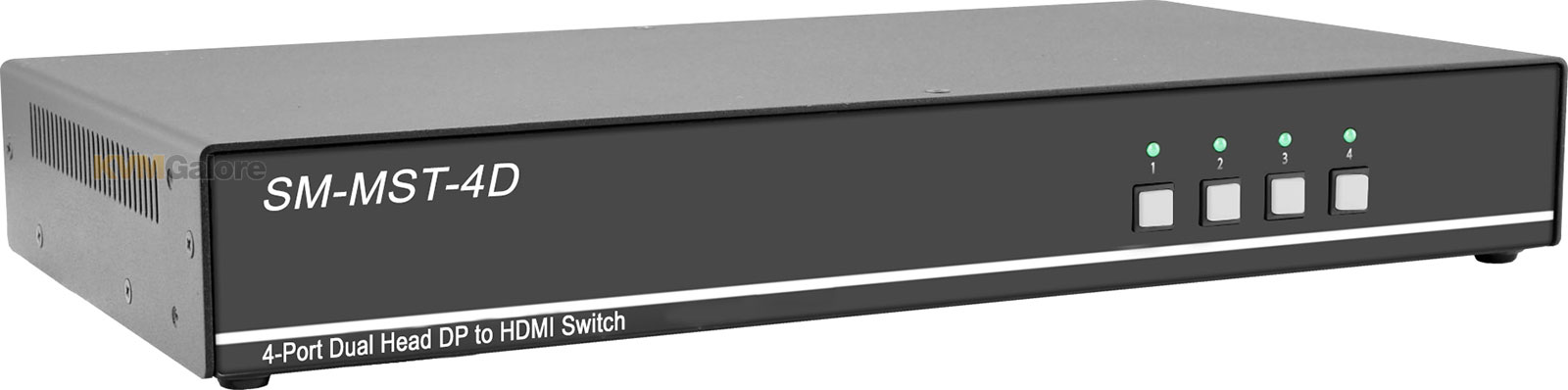

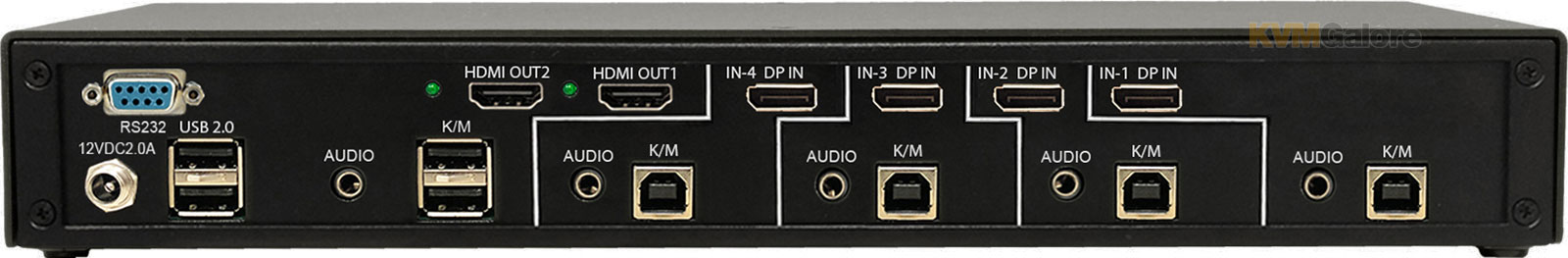

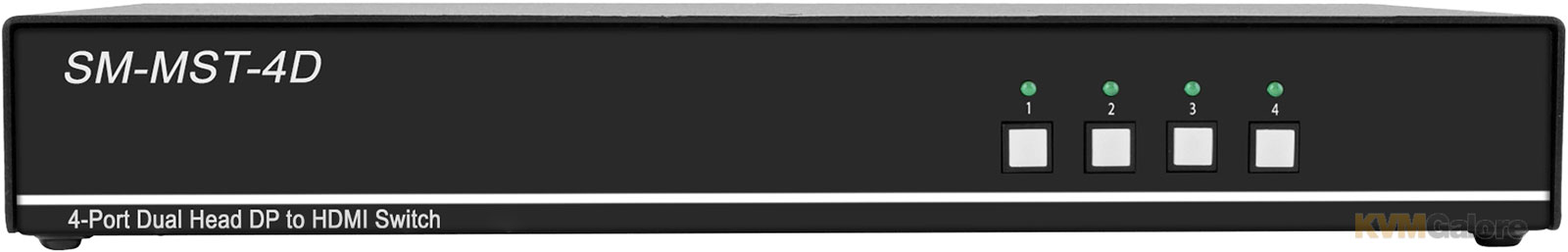

For additional views click on an image below
Image 1 of 4 view
Image 2 of 4 view

Image 3 of 4 view
Image 4 of 4 view

SM-MST-4D

Model No. SM-MST-4D-S Usually ships in 7-10 business days or less

SM-MST-4D
Buy this item and earn 404 ClubPoints.

4-port MST DisplayPort KVM switch with dual 4K HDMI out

4x 4K single-head DisplayPort computers to 2x 4K HDMI extended-desktop screens, with audio support

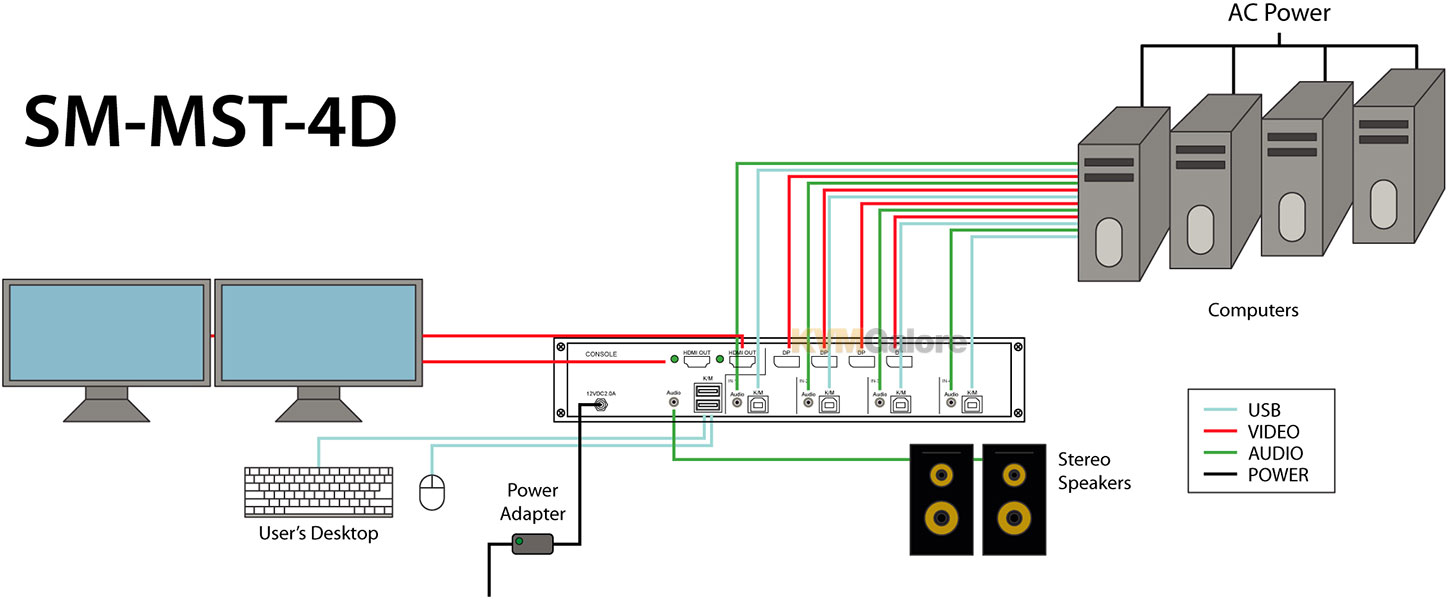

SM-MST-4D - a DisplayPort version 1.2a compliant device - is a KVM switch that allows a user to access and control four single-head DisplayPort computers from a single USB keyboard/mouse and two HDMI monitors supporting extended desktop.

SM-MST-4D converts a single DisplayPort 1.2 input signal to two separate HDMI output connections through advanced MST (multi-stream transport) technology. This allows a user to extend their desktop display to two screens and achieve resolutions of up to 4K (3840x2160 @ 30 Hz) on each connected monitor from any connected single-port DisplayPort computer.

Features and Benefits
• Supports Windows 7 and later
• Single-head DisplayPort to dual-head HDMI video interface for each connected computer
• Resolutions up to 4K UHD (3840x2160 @ 30Hz) per display
• DisplayPort 1.2a dual mode receiver
• HDMI/DVI operation up to 320MHz
• Max video input resolution 4K @ 60Hz
• MST (multi-stream transport) supports up to 2 streams
• Supports RGB or YCbCr
• Supports balanced speakers output and switching
• Front panel tactile buttons with LED indicator
• External power supply - Level VI efficiency

Package Includes
• SM-MST-4D switch
• Power adapter [PS12V2A]
• 3.5 mm to DB-9 serial cable [CC35DB9]
• KVM cables are not included - see listing below for compatible KVM cables required per computer port

Required Cables (per port)
1x DisplayPort, male-male
1x
USB, Type-A to Type-B
1x
Audio, 3.5mm, male-male
