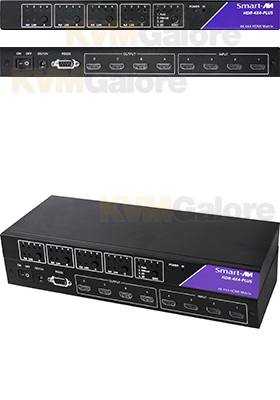

HDR-4X4-PLUS-S: 4x4 HDMI matrix switch
delivers 4K resolution while switching four (4) signals between four (4) displays up to 25 feet away, with IR remote control included
To distribute and switch the latest in 4K (3840x2160 @30Hz) HDMI video signals, HDR-4x4-Plus allows users to independently route four inputs to four displays. Four outputs give users flexibility while routing HD audio and video signals with four displays. HDR-4x4-Pro eliminates the need to disconnect and reconnect HDMI sources to a single display.
The device is compatible with computer sources, live HD television feeds, Blu-ray players, gaming consoles, video cameras and more.
Controlling the matrix switch is simple with the front-panel buttons, the included infrared remote control and the RS-232 port.
Features and Benefits
• Supports 4K Input/Output (3840x2160 @30Hz)
• 4x4 Non-Blocking, HDMI Matrix Switch
• Distributes Any of the Four Inputs to Any of the Four HDMI Output Displays
• EDID Learning Mode
• Includes IR Remote
• Supports RS-232 Control
• HDCP and HDMI 1.4 Compliant
• 4K 4x4 HDMI Router [HDR-4X4-Plus]
• RC-5 Remote Control [SRC-2A]
• Power Supply [PS12VDC4A]
