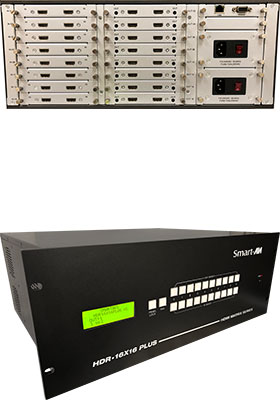

HDR 16x16 Plus V3

Model No. HDR-16X16-PLUS-V3-S Usually ships within 7 business days or less

HDR 16x16 Plus V3
Buy this item and earn 5,249 ClubPoints.

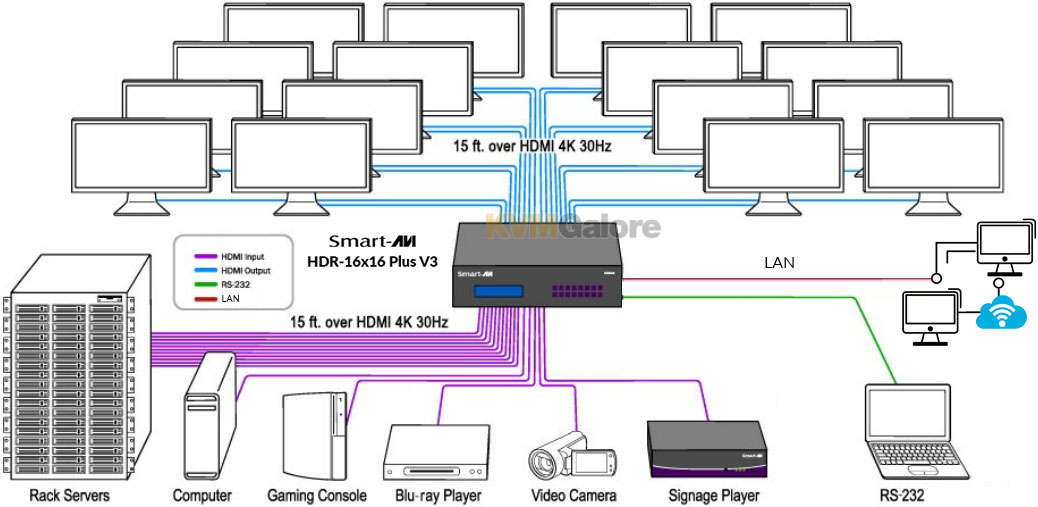

A non-blocking 16x16 4K HDMI matrix switch

route content from any 16 HDMI sources on any 16 displays independently up to 15 feet away


HDR 16x16 Plus V3 conforms to the HDMI 1.4 standard and provides a connection to view any sixteen HDMI video sources on any combination of sixteen video displays. The matrix configuration provides maximum flexibility, allowing switching between any high-definition source and/or display.

HDR 16x16 Plus V3 provides HDMI output up to 15 feet with HDTV resolutions of 1080p and 4K (3840x2160 @ 30Hz). The system works with Blu-ray players, TiVo systems, HT PCs and satellite set-top boxes that connect to an HDMI display.

Users can switch to any source locally or remotely via a RS-232, USB or TCP/IP connection.

SmartAVI's HDMI matrix switch is controlled by Windows®-based software that is easy to understand and simple to use – a cornerstone of all SmartAVI products.

Flexible Control

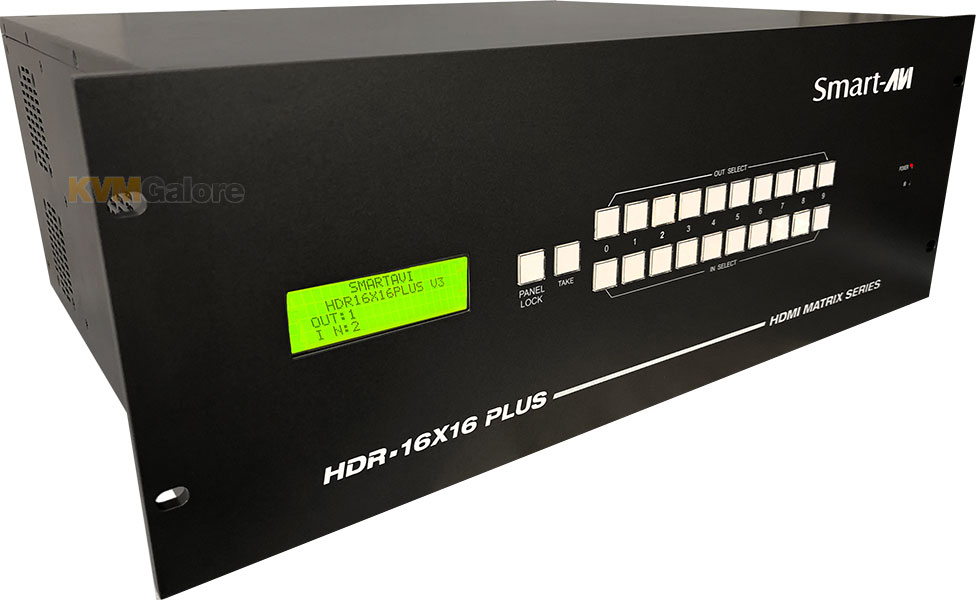

SmartAVI HDR 16x16 Plus V3 can be controlled from the front panel via keypad and LCD, allowing users to see which inputs are connected to which outputs.
• RS-232: Controlling HDR 16x16 Plus V3 has never been simpler with SmartAVI's Windows®-based SmartControl software. With SmartControl, users can assign a unique name to each port on the matrix, as well as each display, customizing projects to meet users' needs. Although all the functions of the matrix are available locally on the front panel of HDR 16x16 Plus V3, using SmartControl allows for customization of all the matrix's functions.
• TCP/IP: Remote control is essential to real-time management of HDR 16x16 Plus V3. SmartAVI's SmartControl module is the perfect solution to effective remote management. Simply connect  SmartControl module to HDR 16x16 Plus V3 and connect from anywhere on the Internet. When users need to make a change but can't be there in person, the SmartControl makes remote control a snap.

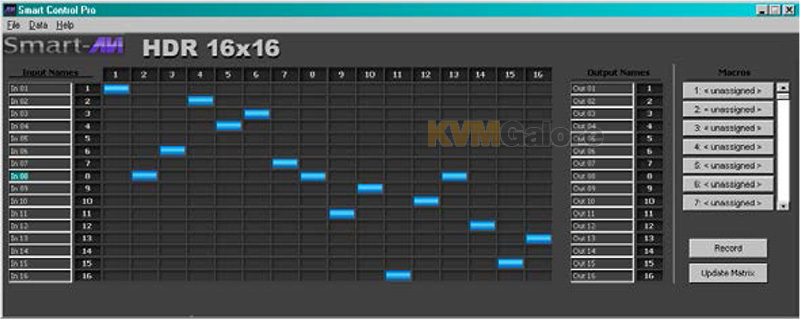

Software Setup
HDR 16x16 Plus V3 hardware comes with the easy-to-use, Windows®-based SmartControl software application that makes user interface simple. Using SmartControl, you can assign a unique name to each port on the HDR 16x16, customizing projects to your liking and needs.

Features and Benefits

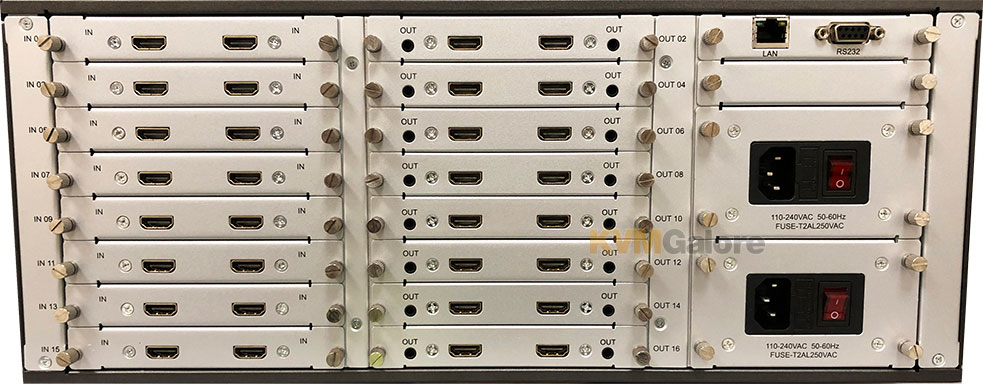

• Switches 16 HDMI inputs with 16 HDMI outputs
• Sources can be routed independently to displays
• Switching controlled via the front panel, RS-232 and TCP/IP
• Supports video resolutions of 1080p and 4K (3840x2160 @ 30Hz)
• Supports 7.1 digital surround sound audio
• HDCP and HDMI 1.3 compliant
• Supports EDID for total control of compliant displays
• Delivers uncompressed digital video with zero signal loss
• Outputs HDMI up to 15 feet
• Rack mountable

Package includes
• HDR 16x16 Plus V3
• Power cord
