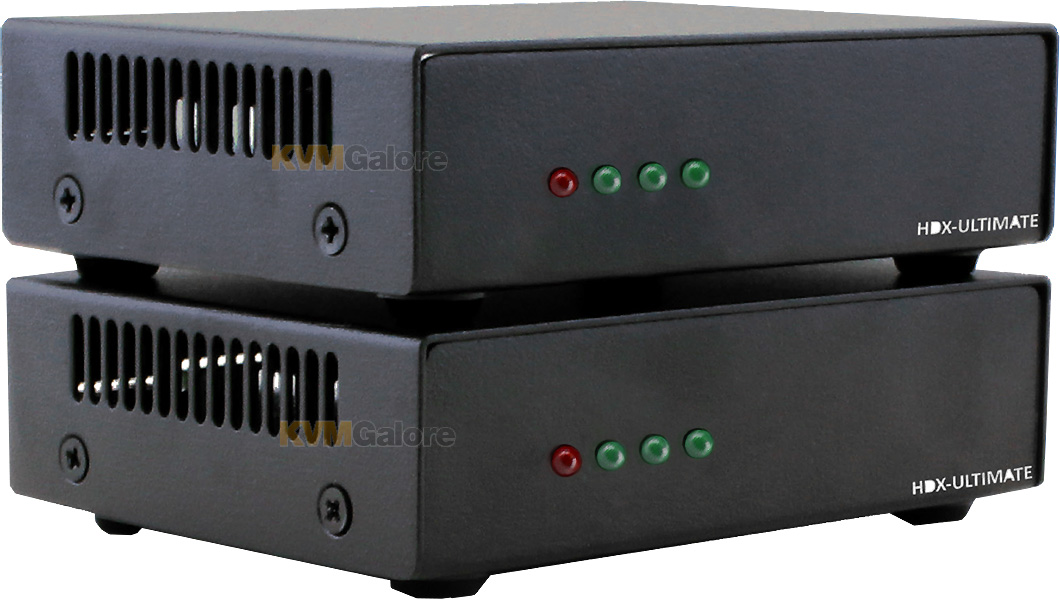

HDX-ULT-S: HDBaseT CAT-5e/6 extender for HDMI, RS-232, and IR control with PoE

watch and command 1080p/4K HDTV from 295 feet (90 m) away

HDX-Ultimate uses only one CAT-5e cable to extend 4K HDMI signals up to 295 feet (90 m) from their source. The Ultimate's HDBaseT technology is HDTV-ready with power over Ethernet (PoE), ensuring peak performance even when transmitting ultra-high quality picture resolution.

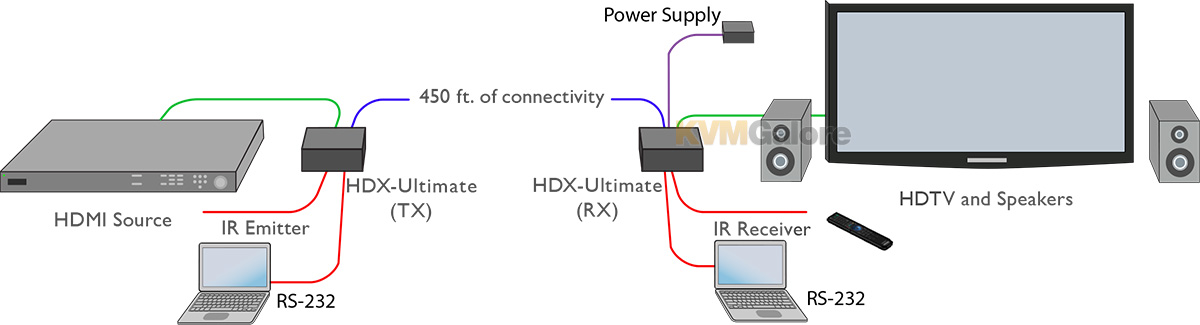

HDX-Ultimate is a crucial extender for any system, and works in tandem with SmartAVI matrixes for robust routing configurations. Control and extend setups up to 295 feet (90 m) per side, and 450 feet when both are powered.

Plus, with RS-232 and IR remote control, taking command is convenient and easy every time!

Whether it's for a home entertainment system or a commercial installation, HDX-Ultimate delivers flexibility and control. Don't let the distance bring your system down: let HDX-Ultimate extend your reach today!

Features and Benefits
• Supports power over Ethernet (PoE): Can be powered by Transmitter (Tx) or Receiver (Rx)
• CAT-5e/6 extends signals up to 295 feet (90 m)
• (1) HDMI output for HDTV support
• Supports 1080p/60fps and 4K/30Hz resolution
• Up to 10.2 Gbps ultra-high bandwidth
• HDCP compliant; EDID learning
• Bi-directional IR and RS-232 control
• LED status indicators

Applications
• Digital Signage
• Corporate Communications
• Classrooms
• Business Slideshows
• Entertainment Venues
• Airport
• Government Presentations
• Law Enforcement Facilities

Package Includes

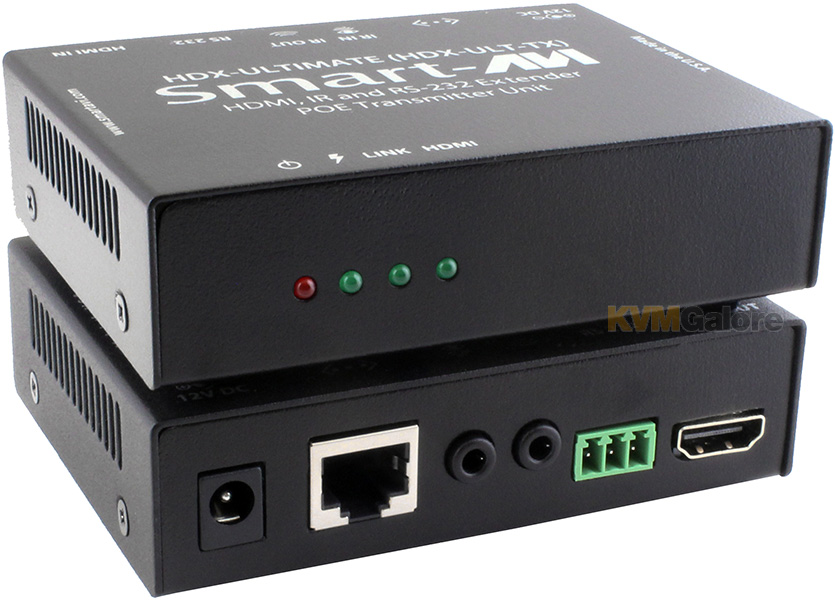

1x Transmitter unit [HDX-ULT-TX]

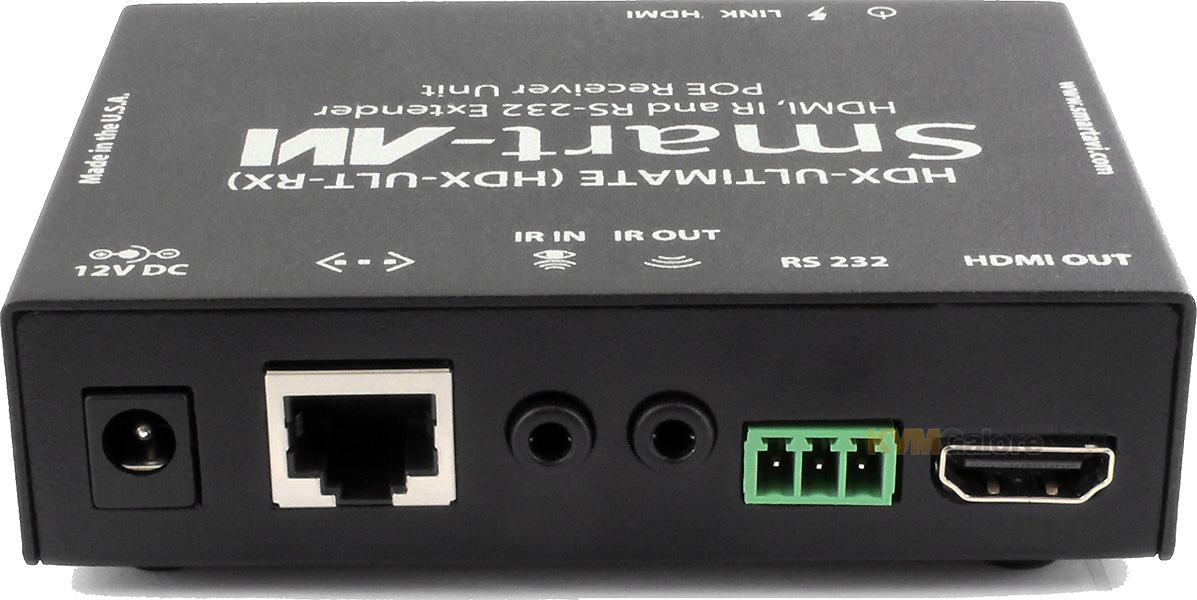

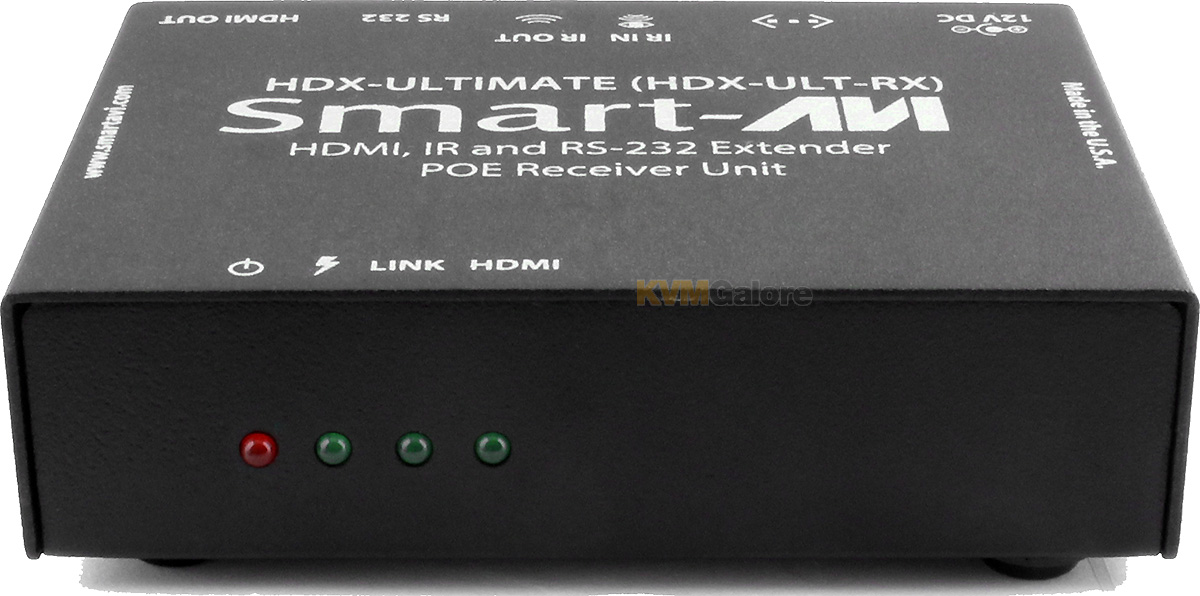

1x Receiver unit [HDX-ULT-RX]
1x Wall-mount power supply [PS12V-3A]
