HDMI, USB keyboard/mouse, serial and audio extender over fiber

SingleMode or MultiMode*; 4K @ 60hz;  HDMI 2.0; 2x SingleMode SFPs included

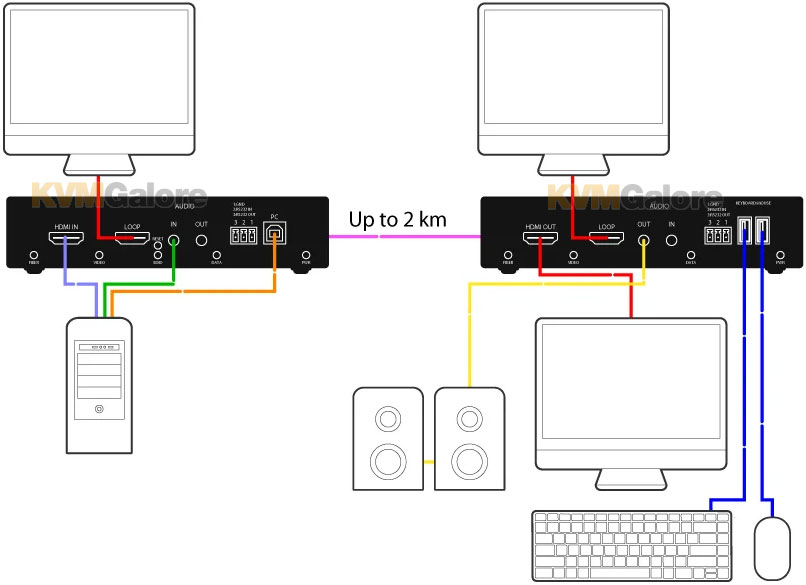

HFX-KM is a 4K HDMI 2.0 (3840x2160), USB keyboard/mouse, bidirectional RS-232 serial control and stereo audio extender, sending signals up to 2 km (1.24 miles) away over a single conventional and inexpensive fiber cable.

This new technology is superior to older HDMI extenders that require a special single fiber shielded cable to go a short distance.

HFX-KM is the leading extender on the market to feature 3840x2160 @ 60Hz HDMI 2.0 video with audio, serial and USB keyboard/mouse emulation on one cohesive system, and is optimized for Ultra-HD 4K @ 60Hz monitors with crystal-clear picture - excellent for detail driven work.

HFX-KM extends keyboard-mouse signals for remote workflow management and offers uninterrupted emulation from the user's transmitter unit. This uninterrupted emulation prevents accidental disconnection or deactivation issues during mission critical operations.

HFX-KM also supports RS-232 serial pass through and acts as an extension.

If a user has a video source and an RS-232 controller (e.g. Extron), this unit can extend both the video and the serial signal (no serial commands of its own, just extension of the controller's serial signal over fiber).

HFX-KM's unparalleled KVM extension technology makes it the perfect solution for extending servers in applications ranging from data processing to interactive conferencing.

Security
When managing content in high-security environments, creating a safe and secure control room is critical. In the vast majority of such applications, that requires routing signals from a server room, where the computers are safely stored, to a control room, where approved personnel access the data and video feeds. Whether that's in a security surveillance center, an operations control room or some other security-related environment, being able to extend video, audio and USB is a must.

HFX-KM provides system architects with the flexibility they need to create secure environments for servers as well as the end users accessing those computers.

Features and Benefits
• Supports 4K Ultra-HD video resolution (3840x2160 @ 60Hz)
• USB keyboard and mouse extension and emulation
• Local unit (Transmitter) supports local video pass-through
• Remote unit (Receiver) can display the extended video on one screen, or duplicate the video on two screens
• External power adapter for transmitter and receiver units
• Supports stereo sound
• Compatible with Windows, Mac and Linux operating systems
• RS-232 serial extension
• Ultra-low latency

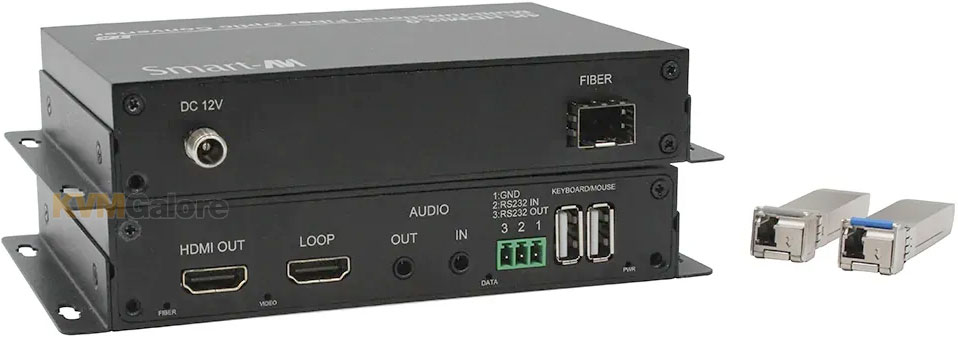

Package Includes
1x Transmitter unit (HFX-KM-TX-S)
1x Receiver unit (HFX-KM-RX-S)
2x Power supplies (PS12VD1A)
2x SFP* transceivers

Need help? Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.

* The provided SFP modules support SinglMode and an extension distance of 1.24 miles (2 km). User may, instead, use MultiMode SFP modules.
