4-port DisplayPort multi-view KVM switch

supporting EDID Aux emulation, with Seamless* switching, specialized imaging resolution, USB 2.0 peripheral sharing and audio support

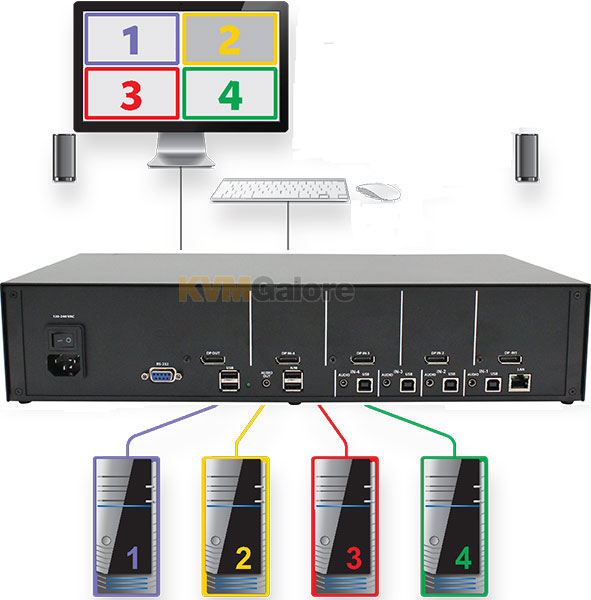

• Integrated multi-viewer for simultaneous review of multiple imaging sources on one screen with flexible viewing modes (Full-Screen, Dual-Mode, Quad-Mode, Tri-View Mode and Picture-in-Picture Mode)
• Seamless* switching: No screen blanking or re-synchronization for real-time decision making
• Supports specialized medical imaging resolutions, including 2048x2048 @ 60Hz, with front-panel resolution-toggle push-button**
• EDID video emulation ensures monitor layout stays consistent when switching

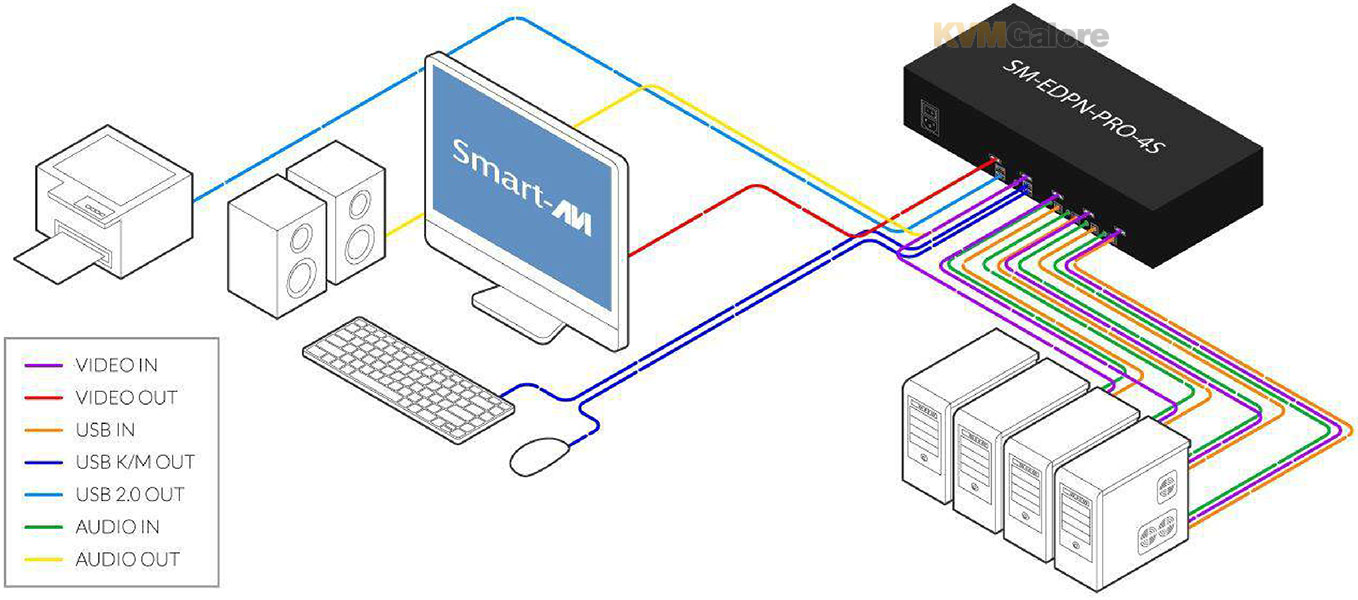

SM-EDPN-Pro is an advanced 4-port DisplayPort multi-view KVM switch designed for environments where clarity, responsiveness, and reliability are critical. It is capable of managing four DisplayPort computers through one DisplayPort monitor, one USB keyboard/mouse, and a set of speakers, while sharing USB peripherals like printers, memory devices, scanners, etc.

SM-EDPN-Pro combines Seamless* 4K Ultra-HD video switching with advanced multi-view layouts, allowing operators to monitor and control multiple systems at once on one screen without disruption. SM-EDPN-Pro supports resolutions of up to 4K 3840x2160 @ 60Hz with zero pixel loss from TMDS signal correction, delivering crystal-clear visuals for your demanding tasks.

Engineered for reliability, performance, and operational continuity, SM-EDPN-Pro is ideal for control rooms, security monitoring, broadcast, medical imaging, and mission-critical workstations.

Not just limited to video, keyboard and mouse emulation, SM-EDPN-Pro extends its connectivity to additional USB 2.0 devices, such as printers, scanners, and web cameras, providing a comprehensive solution for diverse needs. Its USB 2.0 functionality support allows users at the console to access USB devices that would otherwise be unavailable. For example, it allows the use of a flash memory drive or camera without having to plug it directly into the remote computer.

Specifically supporting diagnostic workstations and reading rooms, SM-EDPN-Pro enables radiologists to securely control multiple imaging systems such as PACS, RIS, VNA, CT, MRI, ultrasound, and advanced visualization servers from a single console with zero disruption, without compromising image quality or workflow continuity with specialized medical imaging resolutions.

SM-EDPN-Pro centralizes your workflow, eliminates desk clutter, and switches instantly between systems while preserving full image integrity — including 2048x2048 and 4K @ 60Hz, ensuring precise visualization where accuracy is mission-critical.

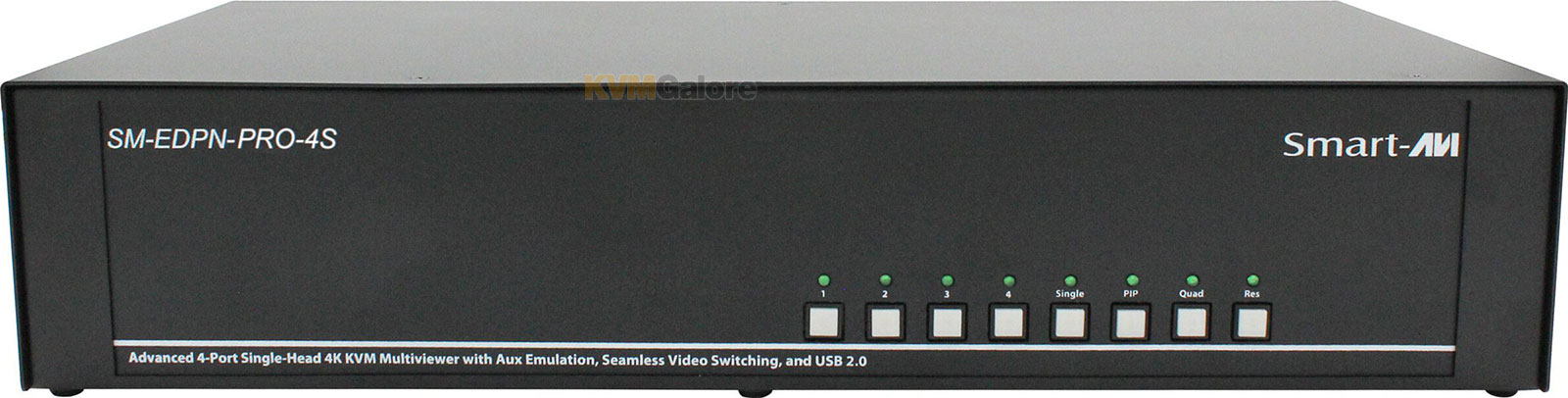

Featuring flash upgradeable firmware, front panel keys for manual port selection, and hot-key commands for swift navigation, this multi-view KVM switch ensures user-friendly control.

By centralizing IT hardware outside the reading room, SM-EDPN-Pro reduces heat, noise, and physical clutter, while delivering instant, seamless access to multiple systems in real time that shortens time between applications, supporting faster reads, improved and sustained focus, improved diagnostic accuracy, higher diagnostic confidence and higher daily patient volume.

Screen Modes

EDID Aux Emulation
With EDID Aux (DisplayPort Auxiliary channel) video emulation, your window and monitor configurations remain intact when switching between computers, ensuring a smooth and uninterrupted workflow.

Unlike traditional DisplayPort KVM switches, SM-EDPN-Pro is designed to overcome the inherent DisplayPort loss of emulated picture when switching from one connected computer to another (leading to a disorganized desktop video upon switching). SM-EDPN-Pro's built-in EDID Aux emulation offers full EDID video emulation that ensures visual workspaces and screen resolutions are remembered every time you switch between computers.

SM-EDPN-Pro's built-in EDID Aux emulation offers:
• Consistent screen resolutions: With EDID (Aux) Emulation, your screen resolutions stay static, providing a stable visual experience when switching between connected computers
• Persistent icon and window positions: Switch between connected computers without the chaos - icons and window positions remain undisturbed, ensuring a smooth transition between tasks

Flexible Control
Any external device or program supporting RS-232 can control SM-EDPN-Pro. SM-EDPN-Pro uses a very simple protocol, enabling easy integration with the RS-232 control devices.
Front-panel push-buttons along with keyboard hot-keys and Web interface also allow the user to switch between computers and control all the different functions of the multi-view KVM switch.

The USB emulation technology utilized by SM-EDPN-Pro enables immediate hot key source switching through the connected USB keyboard and mouse. Additional USB 2.0 peripherals (e.g. like a USB printer, scanner or storage drive) can also be shared via a built-in 2-port USB hub.

Flexible Sharing
SM-EDPN-Pro supports independent simultaneous device selection. Foe example, it enables the use of a USB keyboard and mouse on one computer while audio and/or other USB peripherals such as scanners and printers are connected to a different computer source. SM-EDPN-Pro also maintains the ability to switch all connected devices to any one of the computer sources as with any other KVM switch in the market.

More Features and Benefits
• Independent (asynchronous) switching of KVM, USB peripherals and audio ports – users can listen to audio from one computer while working on a different computer, or scan a document and save it on another computer
• Integrated multi-viewer for simultaneous monitoring of multiple systems on one screen with flexible viewing modes (Full-Screen, Dual-Mode, Quad-Mode, Tri-View Mode and Picture-in-Picture Mode)
• Web-based and RS-232 configuration and control
• 4K/60 DisplayPort for complete pixel integrity
• Ultra-low latency that preserves natural cursor and image response
• Support for sharing USB 2.0 peripherals such as printers, scanners, web cameras, etc.
• Hot-key command control for quick and convenient port selection via keyboard shortcuts
• Supports 2048x2048 and 4K/60 via DisplayPort
• EDID retention — monitor settings remain intact
• USB keyboard and mouse emulation
• Front panel, hotkey, and OSD switching and customization
• Stereo audio support
• Flash-upgradable firmware

Package Includes
• SM-EDPN-Pro KVM switch
• KVM cables are not included - see listing below for compatible DisplayPort KVM cables required per computer port

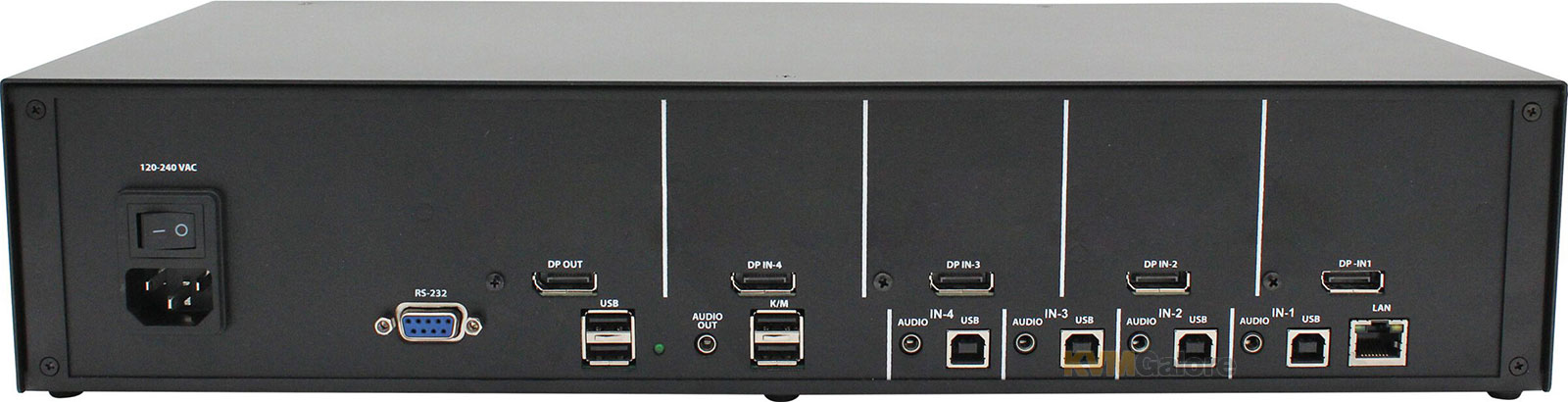

Required Cables (per port)
1x DisplayPort, male-male
1x USB, Type-A to Type-B
1x 3.5mm audio

Need help with product selection?
Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.

* Seamless KVM switching differs from standard KVM switching primarily in the speed and continuity of the transition between computers. Seamless switching allows for near-instantaneous, uninterrupted switching, while standard KVM switches often introduce a delay and/or a black screen upon switching between computers, or require re-enumeration of USB device
** The RES front-panel push-button cycles through a preset list of several resolutions (e.g. 3840x2160, 2048x2048, 1080p, 1360x768)
