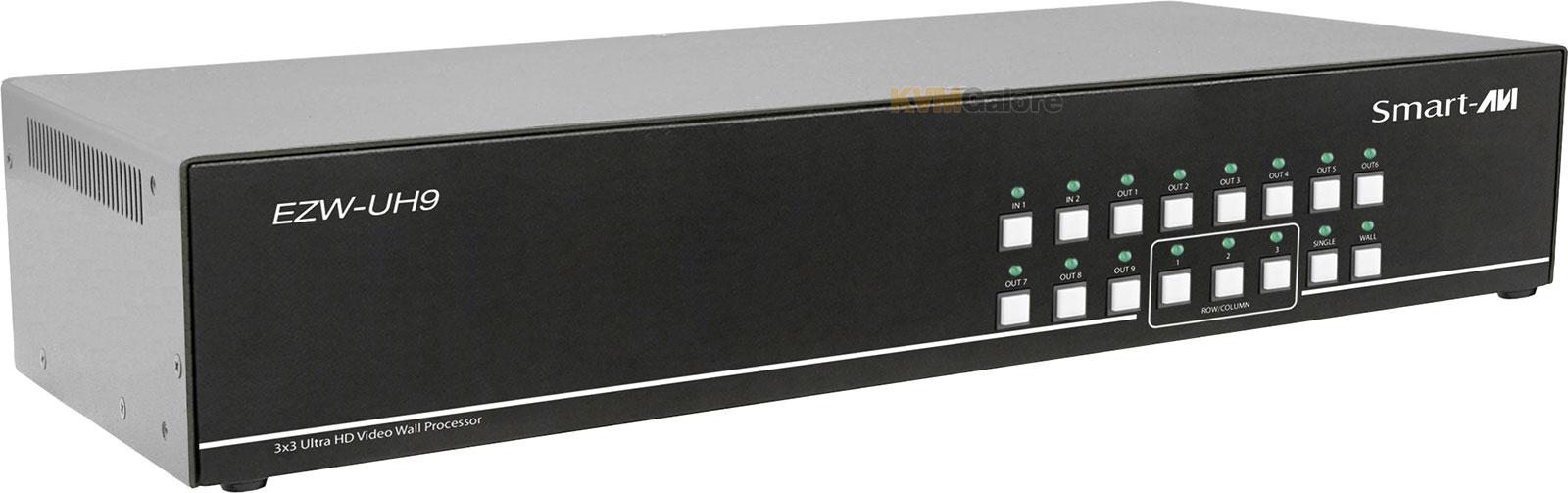

Ultra-HD 3x3 video-wall processor

An HDMI 2.0 video-wall controller with IR remote, Web-interface, push-button & RS232 control, 2x HDMI inputs, 2x HDMI loop-out ports (for preview) and 9x HDMI (scaling) outputs for video-wall.

EZW-UH9 supports infra-red control with an included IR remote control to manage inputs and video-wall settings.

EZW-UH9 can also be controlled over IP using a built-in Web server to manage input and video-wall settings. The user can connect the LAN port of the product to a PC via an UTP cable.

EZW-UH9 can also be controlled via RS232 to manage input and video-wall settings. Once connected to a PC, launch your preferred RS232 console. The user can connect the RS232 port of the product to a PC via a serial cable.

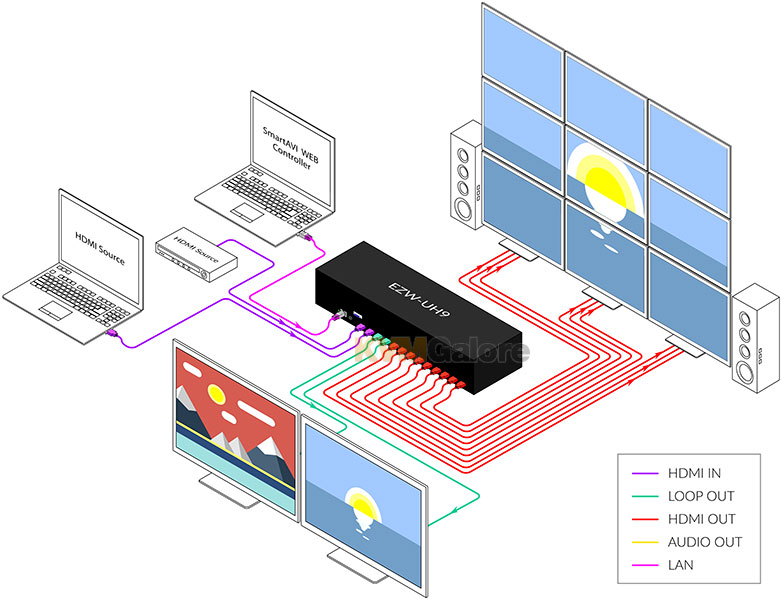

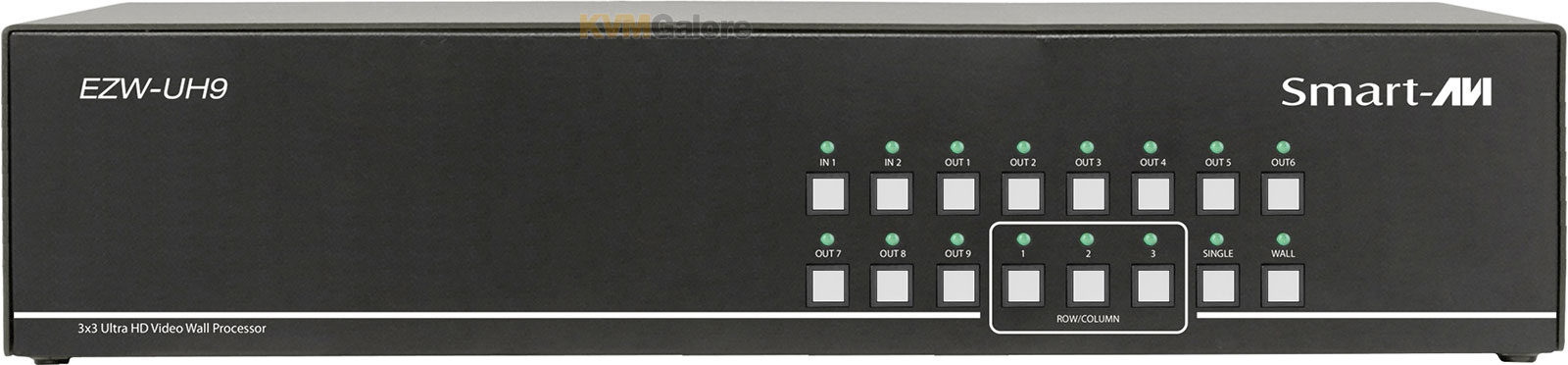

Control EZW-UH9 via its front-panel push-buttons, or via its IP user-interface, or with an included remote control, or via RS232 to accomplish a variety of display settings such as
• Any input to any single screen
• Any input to any 3x screens
• Any input to any 3x3 screens

Features and Benefits
• HDMI 2.0 and HDCP 2.2 compliant
• Support multi-resolution up to 3840x2160 @ 60Hz video output for video-wall
• Support 2 channels HDMI loop out
• Support RS-232 and TCP/IP control
• Support control with displayer by PC Tool or commands

In the Box
1x EZW-UH9 video-wall processor
1x Remote control
1x Power adapter
Cables are not included

Required Cables per Port
1x HDMI, male-male
