Server Technology
  • MSRP $1,275.00
  • Savings$383.00
  • Our Price $892.00
For additional views click on an image below
Image 1 of 1 view


Model No. STV-3534K Usually ships within 7 business days or less

Buy this item and earn 892 ClubPoints.

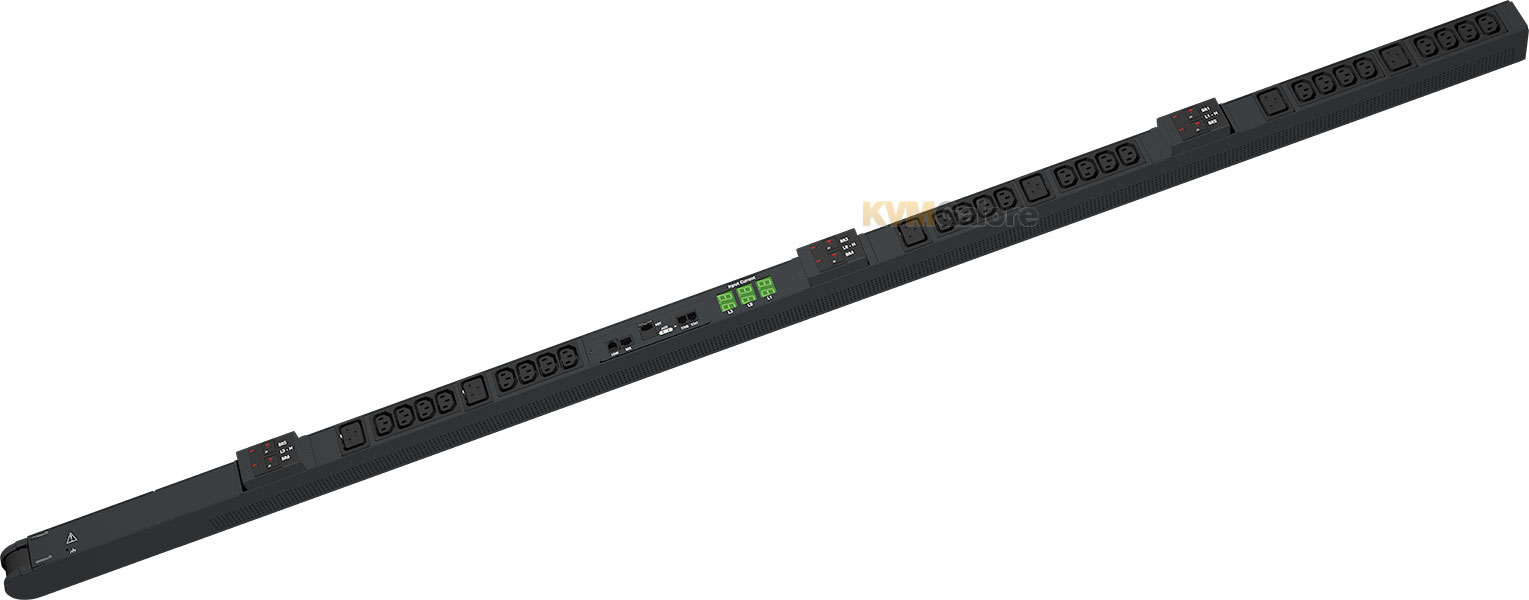

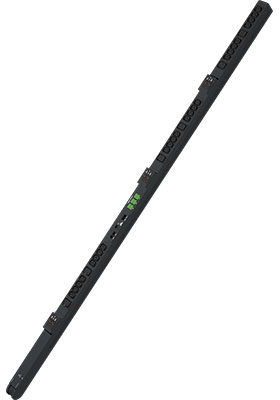

Master unit-level monitored 3-phase Wye PDU, 32A, 400V, zero-U, 24x IEC C13 and 6x IEC C19 receptacles

environmental compatible, 10-foot cord with 230/400V Wye 32A IEC 60309 3P+N+PE 6Hr plug

• Network monitoring
• Hot-swap network card
• Enviromental monitoring
• Auto-flip current display
• Per-inlet power sensing (PIPS)
• Branch circuit protection
• High retention locking outlets
• High-temperature rating
• Power Pivot™
• Flexible mounting

Server Technology® PRO1 Smart PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet.

The integral PIPS® (Per-Inlet Power Sensing) technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes) are accessible through the built-in Web and CLI interfaces as well as through SNMP.

The PRO1 Smart Master PDU can be connected to as many as three (with optional module) PRO1 Smart Link PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.

Plug   Receptacles
3P+N+PE   IEC C13  IEC C19
230/400V Wye 32A IEC 60309 3P+N+PE 6Hr   24x IEC C13 and 6x IEC C19


• Vertical, zero-U form factor
• Volts: 400V
• Amps: 32A
• kW-input: 22.0kW
• Cord length: 10 feet
• Circuit breaker: Yes
• On/off switch: Yes

ServerTech Smart PDU features

• Current (A)
• Power (W)
• Power Factor (PF)
• Voltage (V)
• Apparent Power (VA: Volt-Ampere)
• Energy (kWh)
• Power Measurements: Meet ANSI C12.1 for billing-grade accuracy of current per phase

Optional Accessories
• EMTH-2-10 Combination Temperature/Humidity Probe, 10 feet (3m)
• EMCU-1-1C Environmental Monitor adding:
- 2x EMTH-2-10 temperature/humidity ports (one probe included)
- 1x EMWS-1-1 water sensor port (probe sold separately)
- 4x dry contact (NO/NC) monitoring points
- 1x 8-bit analog-to-digital converter (0 to 5VDC)


Listed below are additional products to consider which are compatible with STV-3534K. These items may be required to complete your system.

Temperature/Humidity Probe, 10 Feet

1) Temperature/Humidity Probe, 10 Feet

    Model No. EMTH-2-10


MSRP: $61.00 - You save $1.01

Server Technology
Environmental Monitoring Control Kit

2) Environmental Monitoring Control Kit

    Model No. EMCU-1-1C


MSRP: $276.00 - You save $1.00

Server Technology
StartUp Stick

3) StartUp Stick

    Model No. KIT-SUS-01


MSRP: $149.00 - You save $1.00

Server Technology
