Environmental Monitoring Control Kit

Model No. EMCU-1-1C Usually ships within three weeks or less

Environmental Monitoring Control Kit
Buy this item and earn 275 ClubPoints.

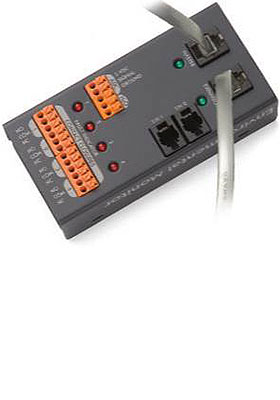

EMCU-1-1C: Environmental monitor system for Server Technology rPDUs

for monitoring temperature/humidity, water/fluid and cabinet intrusion detection


The Server Technology EMCU-1-1C is an IP-based solution for monitoring environmental conditions within the cabinet of your data center. Ever increasing densities of vertically racked servers conserve valuable floor space in the data center, but the resulting power consumption and heat dissipation create new concerns for data center managers. Environmental monitoring, particularly temperature & humidity, is a must for any infrastructure. Monitoring temperature in equipment cabinets is vital to the server's performance and controlling infrastructure cooling costs.

Server Technology smart and switched PDUs support two combination temperature/humidty probes. If additional probes are required, this EMCU-1-1C environmental monitor provides those additional inputs as well as ports for water/fluid detection and dry contact door closure sensors for cabinet intrusion deteciton.

Each EMCU supports:
- 2x EMTH-2-10 temperature/humidity ports (one probe included)
- 1x EMWS-1-1 water sensor port (probe sold separately)
- 4x dry contact (NO/NC) monitoring points
- 1x 8-bit analog-to-digital converter (0 to 5VDC)

The EMCU-1-1C assures network managers that environmental conditions are within defined tolerances and that unauthorized entry into the equipment cabinets does not go unnoticed.

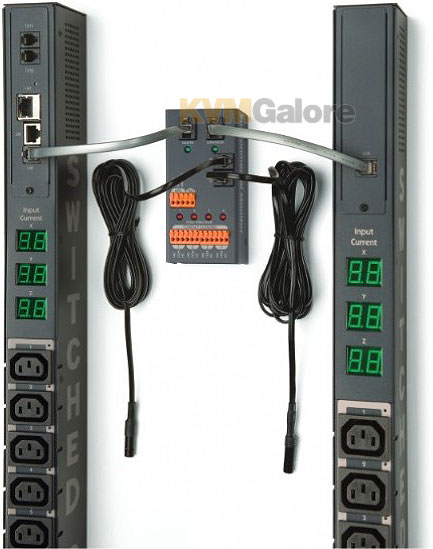

The EMCU-1-1C can be located in data centers, co-lo sites, web hosting facilities, telecom switching sites, POP sites, server closets, and any unmanned area that needs to be monitored. Install the EMCU-1-1C in the equipment cabinet and gain access to environmental conditions from a web or serial interface through one of Server Technology's IP addressable PDUs.

• Simple and fast installation
• No external power source required
• Dedicated IP address not required
• No additional software required
• Flexible zero-U mounting

Each EMCU-1-1C ships with 1x EMTH-2-10 temp/humidity probe.

Additional temp/humidity probes and water/fluid sensing cable sold separately. Accepts 3rd party analog sensors (input 0V to +5VDC). Accepts up to four 3rd party contact closer sensors - Wago® spring-loaded 3-position terminal block.
