STV-3531C - Model No. STV-3531C - KVMGalore® | Tech Solutions Made Easy™
Server Technology
  • MSRP $739.00
  • Savings$23.00
  • Our Price $716.00
For additional views click on an image below
Image 1 of 1 view

STV-3531C

Model No. STV-3531C Usually ships within 7 business days or less

STV-3531C
Buy this item and earn 716 ClubPoints.

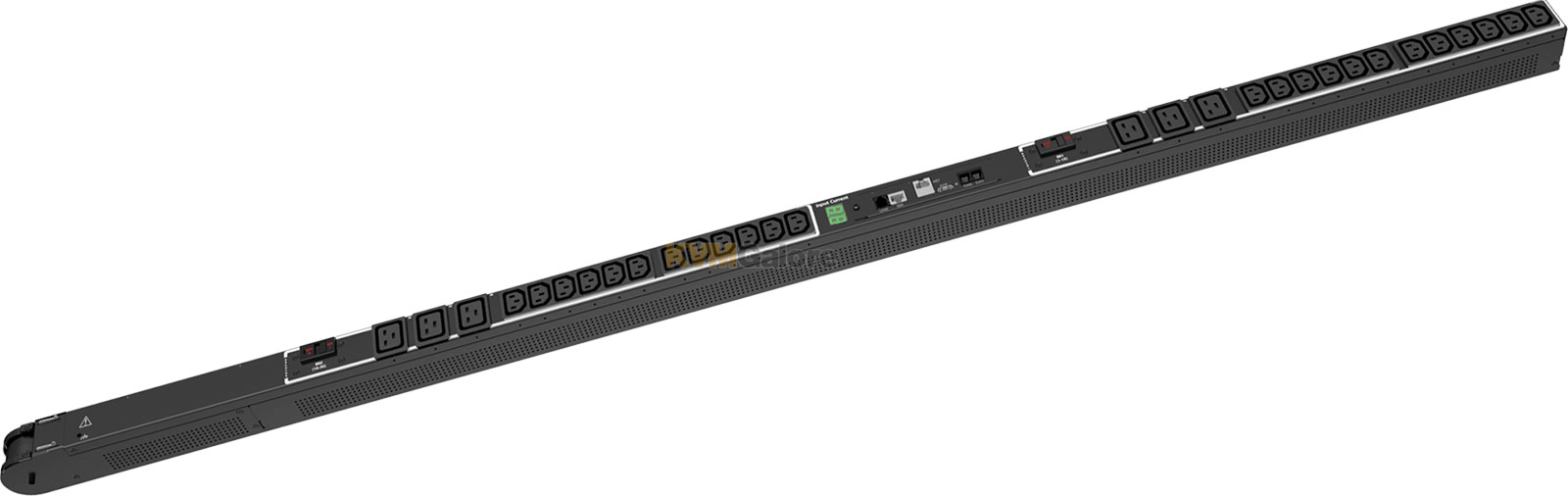

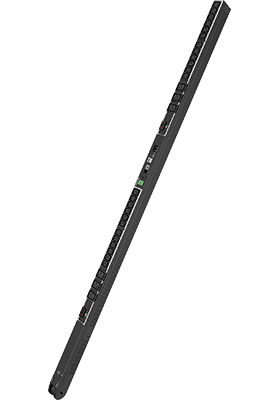

Master unit-level monitored PDU, 30A, 208V, zero-U, 24x IEC C13 and 6x IEC C19 receptacles

environmental compatible, 10-foot cord with NEMA L6-30P plug


• Network monitoring
• Hot-swap network card
• Star multi-linking
• Enviromental monitoring
• Auto-flip current display
• Branch circuit protection
• High retention locking outlets
• High-temperature rating
• Power Pivot™

Server Technology® PRO1 Smart PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet.

The integral PIPS® (Per-Inlet Power Sensing) technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes) are accessible through the built-in Web and CLI interfaces as well as through SNMP.

The PRO1 Smart Master PDU can be connected to as many as three (with optional module) PRO1 Smart Link PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.

Plug   Receptacles
L6-30P   IEC C13  IEC C19
NEMA twist-lock L6-30P   24x IEC C13 and 6x IEC C19



• Vertical, zero-U form factor
• Volts: 208V
• Amps: 30A
• kW-input: 5.0kW
• Cord length: 10 feet
• Circuit breaker: Yes
• On/off switch: No

Server Technology smart-PDU features

Monitoring
• Current (A)
• Power (W)
• Power Factor (PF)
• Voltage (V)
• Apparent Power (VA: Volt-Ampere)
• Energy (kWh)
• Power Measurements: Meet ANSI C12.1 for billing-grade accuracy of current per phase

Optional Accessories
• EMTH-2-10 Combination Temperature/Humidity Probe, 10 feet (3m)
• EMCU-1-1C Environmental Monitor adding:
- 2x EMTH-2-10 temperature/humidity ports (one probe included)
- 1x EMWS-1-1 water sensor port (probe sold separately)
- 4x dry contact (NO/NC) monitoring points
- 1x 8-bit analog-to-digital converter (0 to 5VDC)
