MasterConsole Digital Dual

MasterConsole Digital Dual

CAT-5 analog/digital dual-monitor KVM switches to access and control four (4) or eight (8) dual-head (DVI/HDMI/DP/VGA) PCs or servers, w/ mouse port-switching and AutoScan
Read more below...

MasterConsole Digital Dual, 4 Ports

1) MasterConsole Digital Dual, 4 Ports Model No. MCD-104-DUAL In stock

FREE GROUND SHIPPING!


$829.00 MSRP: $1,051.00 - You save $222.00
MasterConsole Digital Dual, 8 Ports

2) MasterConsole Digital Dual, 8 Ports Model No. MCD-108-DUAL In stock

FREE GROUND SHIPPING!


$1,294.00 MSRP: $1,638.00 - You save $344.00

CAT-5 analog/digital dual-monitor KVM switches

to access and control four (4) or eight (8) dual-head PCs and servers


MasterConsole Digital

• Manages multiple dual-head computers with dual display via CIMs (MDCIM-DVI/HDMI/DP) and UTP VGA cables
• Supports borderless port switching by mouse - save time and increase productivity by quickly switching channels with the mouse
• Connects to computers up to 150 feet away with VGA, DVI, HDMI, and DisplayPort video
• 1U space-saving design
• HD video resolutions of up to 1920x1200
AutoScan for scanning computers at variable rates and AutoSkip bypasses inactive channels
• User-privilege level
• Plug-and-play installation and configuration along with easy-to-use, on-screen displays

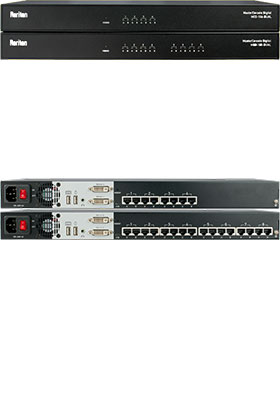

Raritan's MasterConsole® Digital Dual KVM switch (MCD-DUAL) consolidates access and control of multiple dual-head computers with a single console supporting dual displays. It enables a single user to manage and control multiple dual-head computers with borderless mouse switching.

MCD-DUAL features KVM ports for 4 or 8 "dual-headed" computers. MCD-DUAL switches can be cascaded to manage up to 64 computers at distances up to 150 feet (45 meters).

Standard Category 5/6/6e unshielded twisted-pair (UTP) cables are used to connect computers. MCD-DUAL KVM switches provide a friendly OSD (on-screen display) interface and hotkeys to access connected computers and the convenient borderless mouse switching feature.

MCD-DUAL supports stereo audio by using MCD VGA combo cables or MCD HDMI CIMs. They also allow the sharing of two displays between multiple dual-display computers, supporting configurations such as screen duplication and extended-view modes to fit multiple use cases.

MCD-DUAL KVM switches support the latest digital video user interfaces - DVI, HDMI, and DisplayPort. Maximum video resolution can be supported up to 1920x1200 @ 75Hz
(Analog), 1920x1080 @ 60Hz (Digital) up to 150 feet thru UTP cable connections by MasterConsole CIMs (MDCIMs) or MasterConsole KVM combo cables (MDUTP).

MasterConsole Digital Dual Mouse Switching

Port Switching by Mouse
Users can easily switch channels by just moving the mouse to touch the edge of the screen. Touching the right edge will switch to the next channel. Touching the left edge will switch to the previous channel.

If you move the mouse cursor to the left or right side of the display's borders, then MCD-DUAL will switch to the prior or next port. The user can move the mouse to strike the monitor's edge, and then the mouse will move to the next port.

This function can help the user to save time and increase productivity.

MasterConsole® Digital Computer Interface Module (MDCIM) Technology and Multiplatform Support
MDCIMs with keep-alive technology allows users to add, remove and hot-swap components without interruption to the live computers.
MDCIMs are also available for support of various computers and devices in your data center and supports MS-DOS, Windows® 7/8/8.1/10, Linux® (Red Hat, Novell® Suse), Macintosh® OS9, OSX, and SCO UNIX®.
