DKX3-UST: High performance access to Dominion® KX III IP KVM switch
low-maintenance appliance provides IP access to remote servers connected to Dominion KX III; perfect for labs, studios and areas where a PC/laptop is not wanted

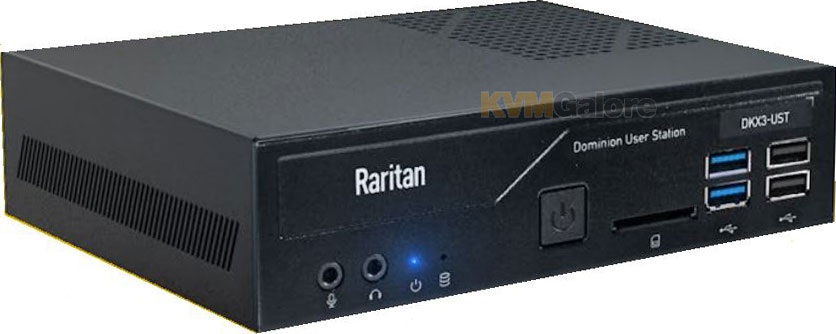

Dominion® KX III User Station is a stand-alone appliance for high performance IP access to servers connected to Dominion® KX III switches.
It can sit on a desk, be mounted in a standard 19" rack, or VESA-mounted on the back of a monitor. Deploy it using standard CAT-5 cabling and Ethernet/IP technology.
Simultaneously access, view, and control multiple servers, spread across single or dual monitors.
DKX3-UST is a low-maintenance appliance that provides high-performance IP access to remote servers connected to Dominion KX III, and it can replace outdated analog matrix switches, replace/supplement expensive, inflexible broadcast systems or be deployed anywhere hassle-free IP access is needed. It's perfect for broadcast, labs, studios, control rooms, offices, data centers, and areas where a PC/laptop is not wanted.
High Performance User Appliance
• Powerful Intel-based platform
• Two 1080p streaming video sessions at 30 FPS
• Ultra-fast connections and sub-second switching with the non-blocking DKX3-808 model

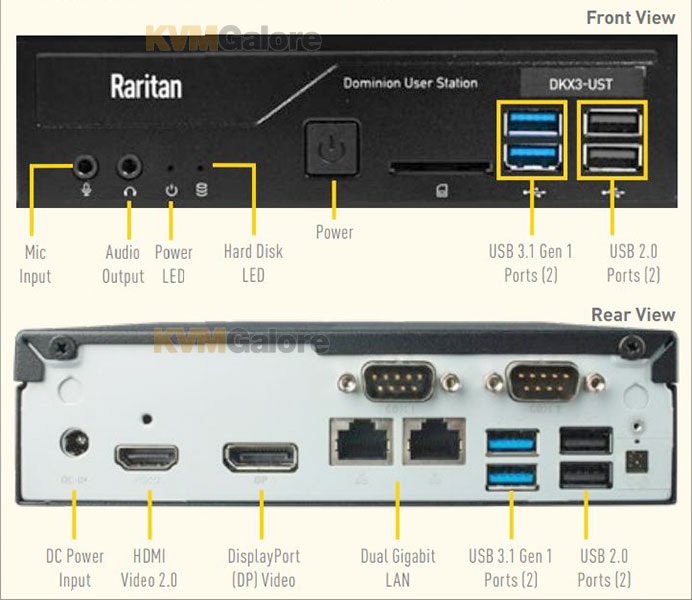

• Supports VGA, DVI, HDMI & DisplayPort video
• Self-contained, low maintenance appliance
Productive and Powerful User Interface
• Supports single or dual monitors
• 8 or more simultaneous IP connections
• Flexible window manager
• Full Screen mode (with hidden toolbar)
• Favorites and hot-key switching
• Virtual media and USB audio
Flexible and Easy to Deploy
• Flexible dual LAN or WAN access
• Use corporate and/or separate LAN
• Connects with inexpensive CAT-5 cabling
• Access hundreds of servers and devices
• PC/laptop access also available
• Desktop, rack & VESA mountable

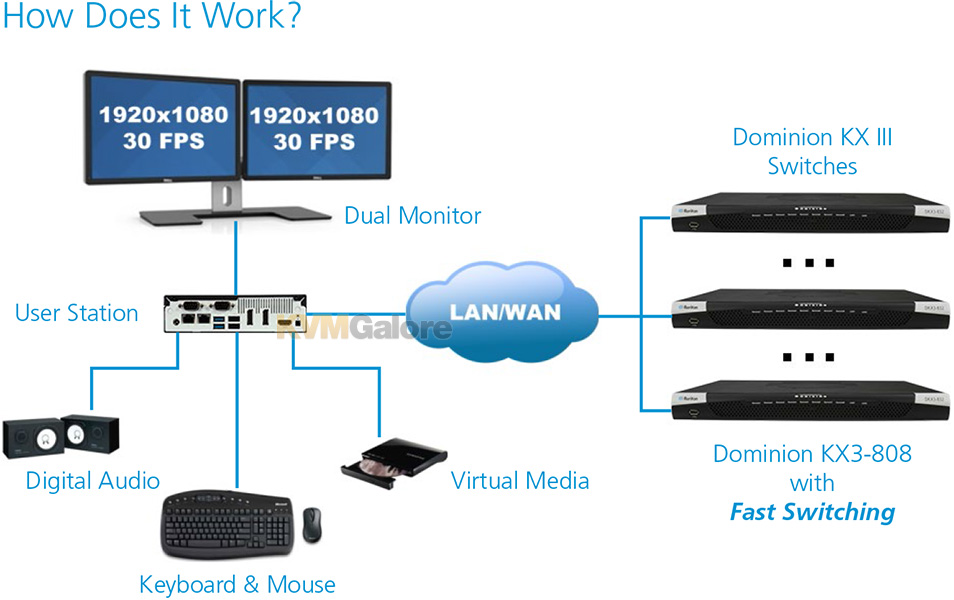

Easy to Deploy
1. Attach single or dual monitors
2. Attach keyboard and mouse
3. Optionally attach speakers and virtual media
4. Connect to corporate or separate LAN
5. Configure to add users and KX III's
6. Access and control servers connected to the KX III switches
• Dominion User Station
• Power adapter
• VESA mount kit
• Quick Setup Guide
• Warranty card
