Wallit SH, 9U - Model No. RCT-WLSH9 - KVMGalore® | Tech Solutions Made Easy™
Rackit
  • MSRP $315.00
  • Savings$195.01
  • Was $314.00
  • On Sale! $119.99
For additional views click on an image below

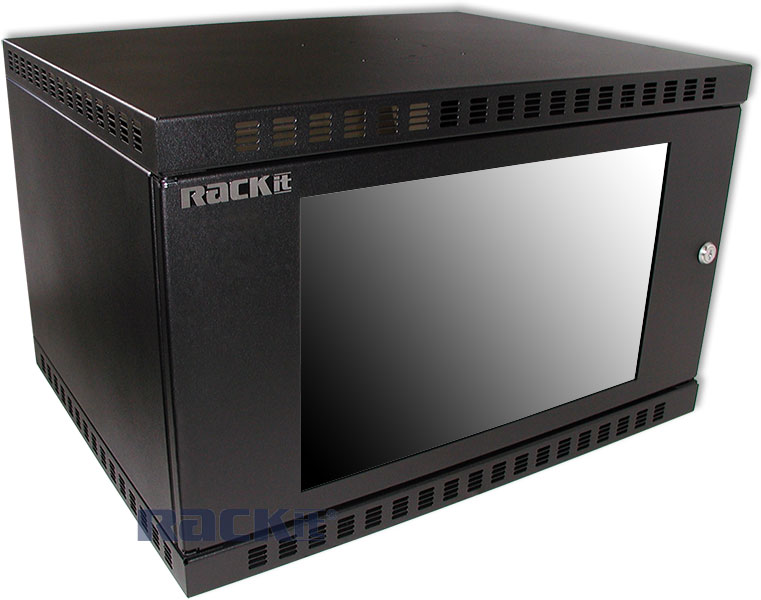

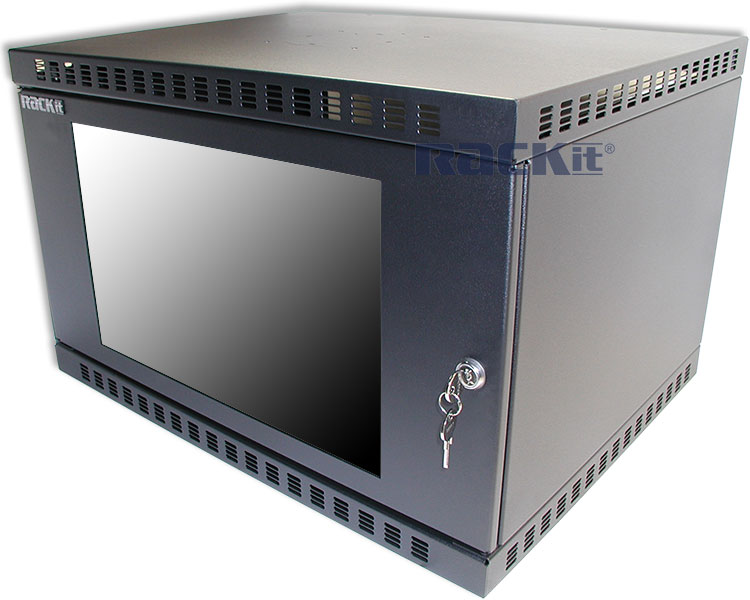

Image 1 of 7 - Wallit SH enclosures are constructed of reinforced black powder-coated steel with a welded frame, good for a weight-load of 150 lbs., supporting network and security installations of equipment under 16¾" deep. view
Image 2 of 7 - Wallit SH is fitted with ventilation slots surrounding the cabinet on both sides and in front, both top and bottom of the rack. view

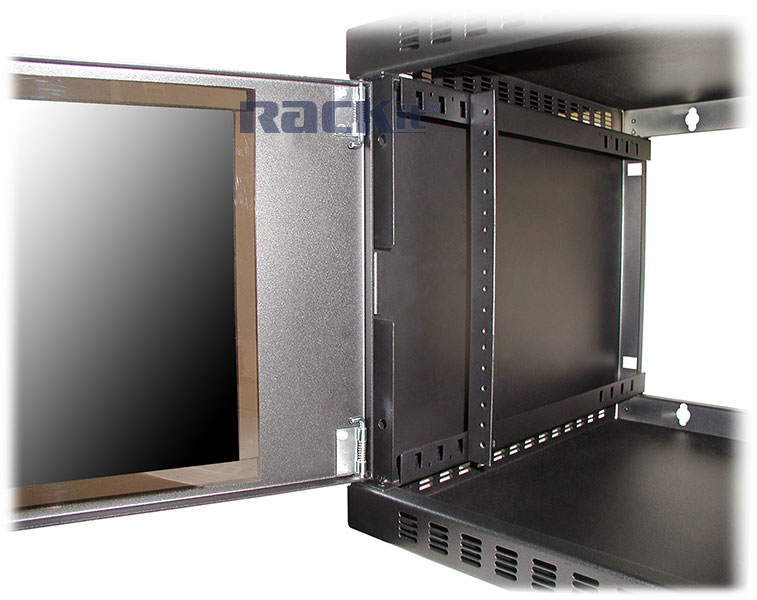

Image 3 of 7 - Wallit SH ships with one set of heavy-duty rack-mounting rails (#10-32 pre-tapped mounting holes), featuring four (4) depth-adjustable positions (in 1-inch increments) in the front of the cabinet. view

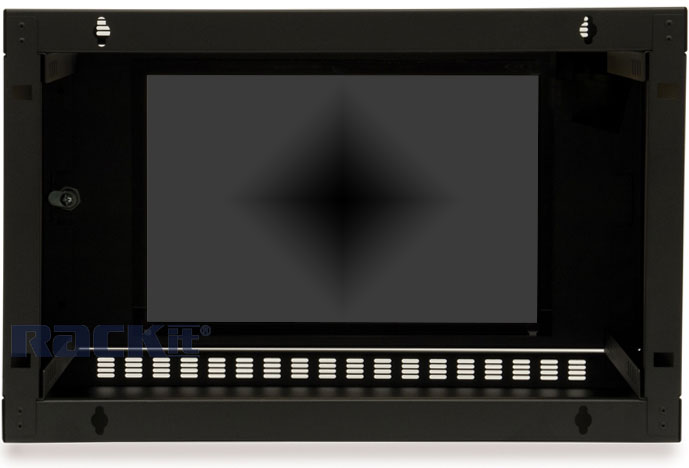

Image 4 of 7 - Wallit SH 6U, back view. view

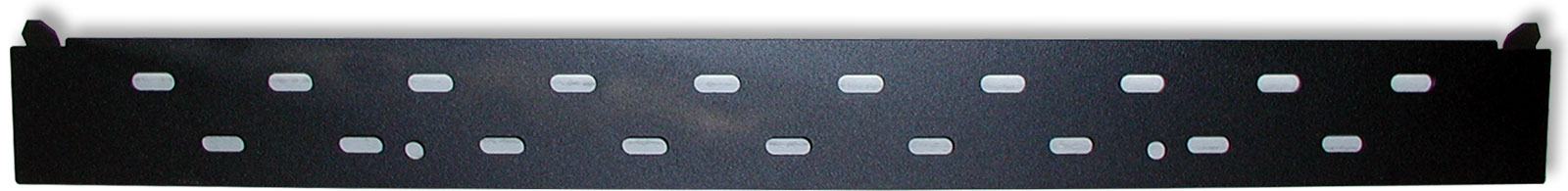

Image 5 of 7 - Wallit SH ships with a hanging bracket included, making it easy for a one person install. view

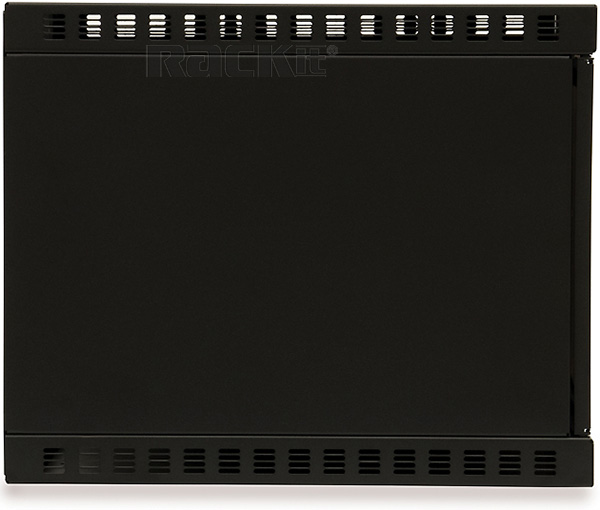

Image 6 of 7 - Wallit SH 6U, side view. view

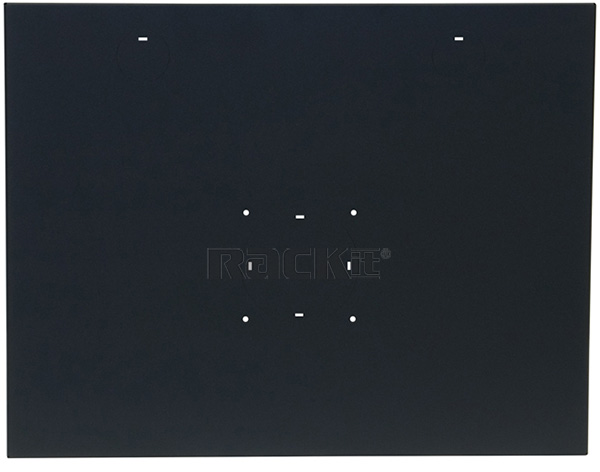

Image 7 of 7 - Wallit SH, top and bottom view. view

Wallit SH, 9U

Model No. RCT-WLSH9 In stock

Wallit SH, 9U
Buy this item and earn 120 ClubPoints.

RCT-WLSH9: 9U 2-post-mounting wall-mount network/communication enclosed rack

includes a hanging bracket for easy, one-person installation


• 16.8 inches maximum usable mounting depth
• Adjustable #10-32 pre-tapped front mounting rails
Rackit lifetime warranty• 150 lbs. weight capacity
• Locking front acrylic door
• Optional exhaust fan
• Hanging bracket for easy, one-person installation
• Top and bottom cable-access

Perfect for housing intercom, paging and security systems, CAT-5, fiber, voice and most any communications mounting needs, Wallit™ SH enclosures provide 19" rack-mounting capability for small to medium deployments designed to be mounted to the wall, with ample cable access and a front see-through door.

Wallit SH enclosure is constructed of reinforced black powder-coated steel with a welded frame, good for a weight-load of 150 lbs., supporting network and security installations of equipment under 16¾" deep.

Wallit SHThe cabinet ships with one set of heavy-duty (14 gauge steel) rack-mounting rails with #10-32 pre-tapped mounting holes. The mounting rails are 19"-EIA compliant with four (4) depth-adjustable positions (in 1-inch increments) in the front of the cabinet.

Top and bottom knockouts provide Wallit SH with superb cable access on both sides of the rack.

Wallit SH also features a key-lock on its front see-through door for maintains equipment security while allowing convenient front access to mounted equipment.

In addition to its ventilation slots on the front and both sides of the cabinet, Wallit SH enclosure can be fitted with two (top and bottom) optional exhaust fans for additional cooling.

Easy to hang on the wall
Wallit SH ships with a hanging bracket included, making it easy for a one person install. The hanging bracket runs the width of the cabinet, featuring multiple holes to facilitate stud and non-stud wall-mounting. Once the hanging bracket is mounted to the wall, Wallit SH hangs on it, making it easy to complete the wall-mounting through four available key-holes.

Adjustable tapped rails
Wallit SH ships with one set of #10-32 pre-tapped mounting rails. Four (4) available positions in the front of the cabinet make the rails depth-adjustable in 1-inch increments for a maximum usable depth of 16¾ inches.

Ventilation
Wallit SH is fitted with ventilation slots surrounding the cabinet on both sides and in front, both top and bottom of the rack. Additional airflow can be generated with mounting one or two optional 120mm exhaust fans on cabinet's top and bottom.

Cable access
Two 2"-diameter cable knockouts on both top and bottom panels can be used to facilitated extensive and well-organized cable management.

Solid, secure enclosure
Wallit SH is made of cold rolled steel and a welded frame with solid side panels and a locking see-through front door, rated at 150 lbs. weight-load.

• Solid sides
• Welded frame construction
• 19" EIA compliant
• Made in the USA
• Limited lifetime warranty
• Wall-mount hardware not included
• Equipment mounting screws not included - see listing below for compatible mounting screws
