RCT-WI8: Network and communications wall-mount rack with a forward-tilting mounting frame
for easy patch-panel punch-down; equipment and cable access
• 90° swing down mounting frame

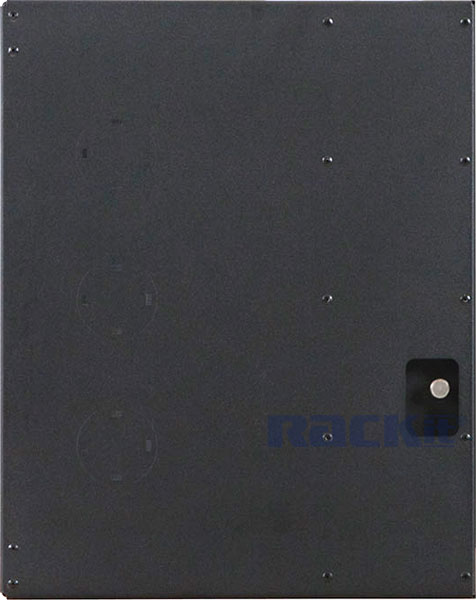

• Available (optional) cover for protection

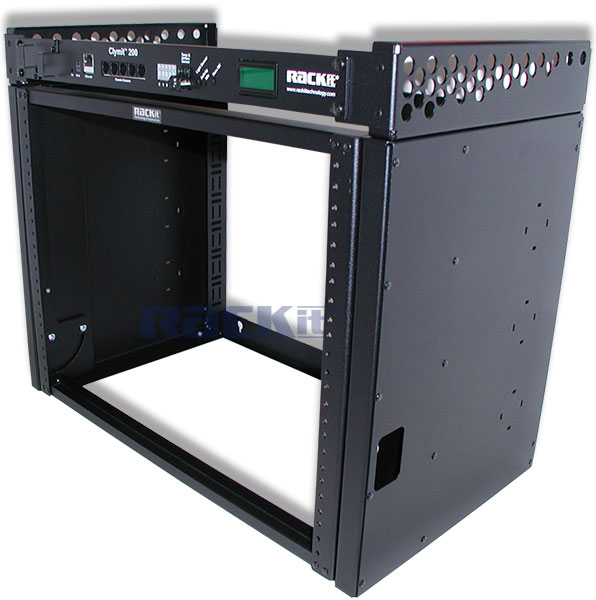

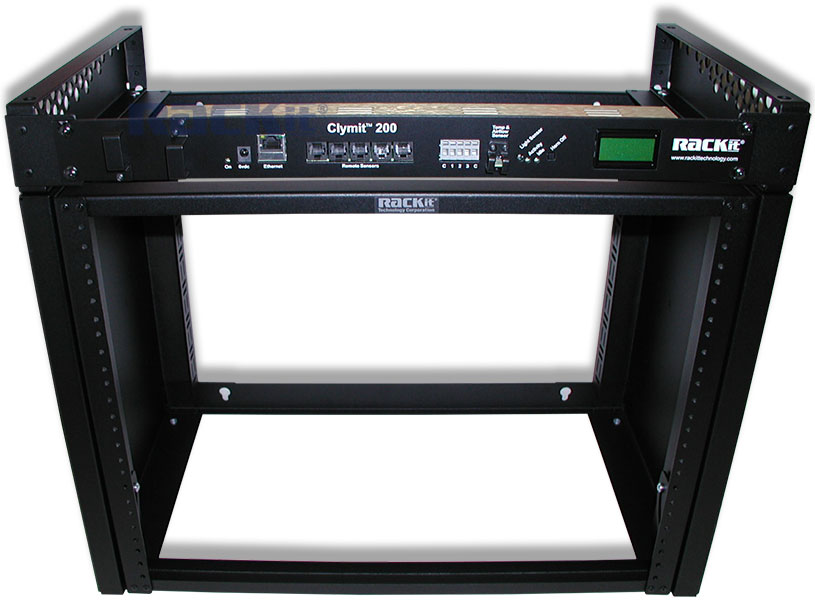

• Available (optional) 1U brackets for stationary rack-mounting
• 12" rack-mount depth
• 75 lbs. weight capacity
Wallit™ Incline wall mount racks make network equipment installation and maintenance easier. In many network schemes, rear access is needed for the installation and maintenance of patch panels and switches, making Wallit Incline wall mount racks a suitable solution.

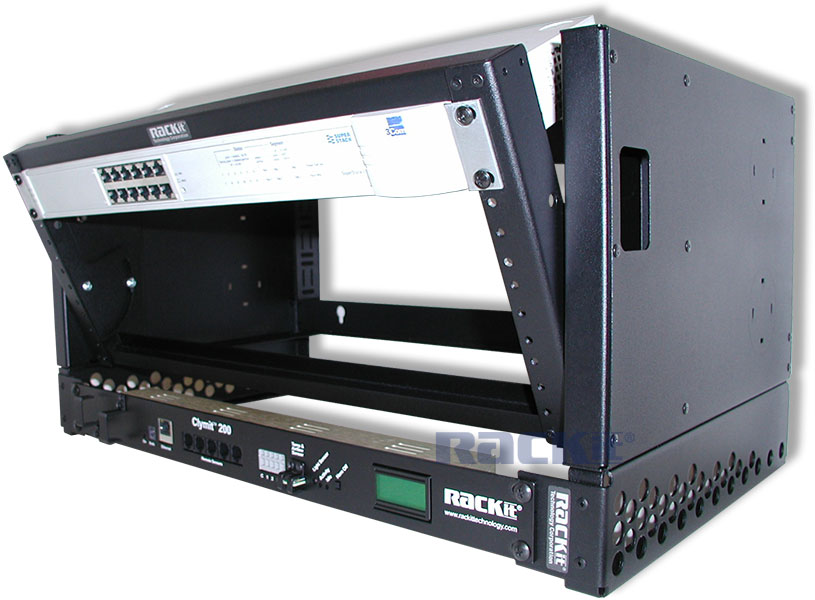

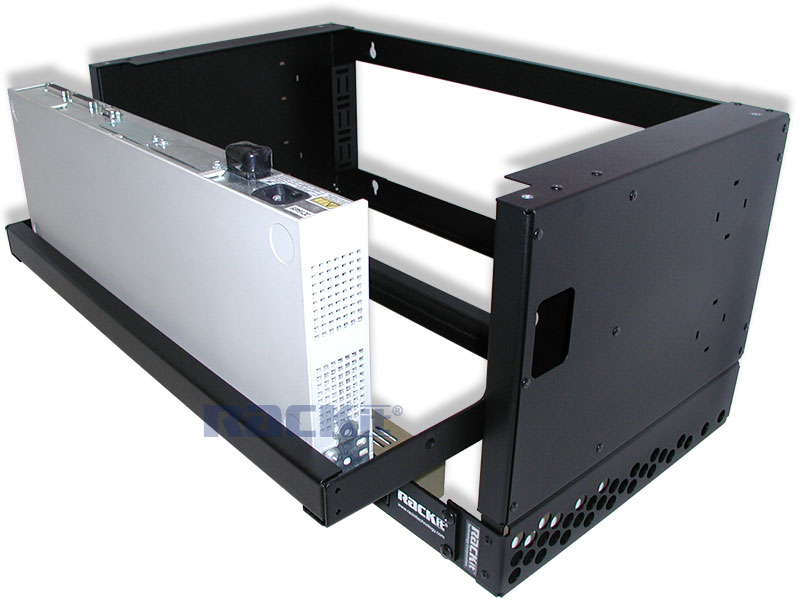

Designed for patch panels and network gear that require easy access to the back of the equipment, the rack's tilting rack-mount frame swings down and stops at 90 degrees giving installers full access to the rear of the mounted equipment.
An integrated positive stop prevents the frame from being opened more than 90 degrees to avoid causing damage or strain to your equipment and connections. A latching mechanism securely holds the frame in a closed position.
Even when in the open/down position, Wallit Incline can withstand the force of punching down multiple connections – a feature especially helpful when installing patch panels.

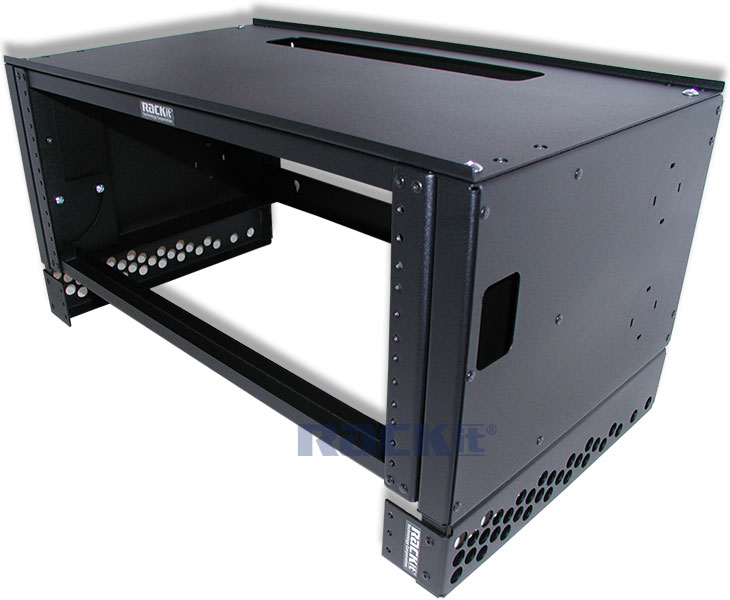

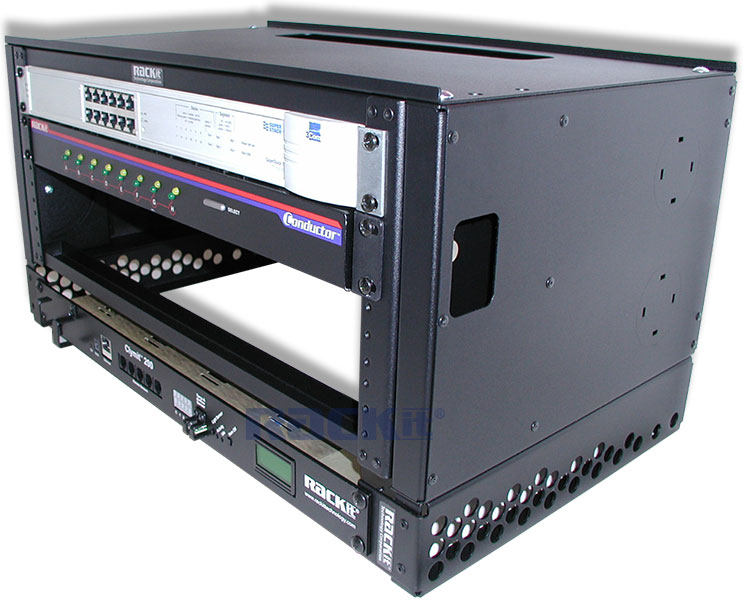

Providing 12" depth allowance and designed to be mounted on the wall, Wallit™ Incline provide 4U rack space for mounting patch panels, network and communication equipment on its pair of #10-32 pre-tapped front mounting rails. Its open frame design allows the rack to be installed over existing equipment without having to remove and re-terminate network cables.

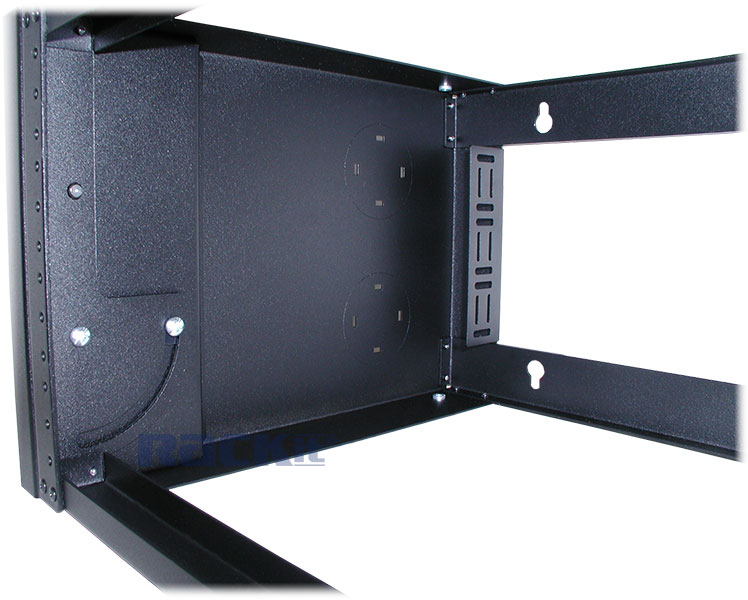

Ample cable routing is available with Wallit Incline's open frame design and the two 2.375" diameter cable-access knockouts on either side of the rack. The rear lacing bars on either side of the rack allow for excess cabling to be secured with the use of optional RackiTies.
The heavy duty steel construction makes Wallit Incline capable of supporting up to 75 lbs. of network equipment in both the open and closed position.
Wallit™ Incline ships completely assembled making installation easy. Simply remove the rack from the packaging, mount it to the wall using the four key holes, and install your components with 10-32 rack screws (not included).
• 19" EIA 310-D compliant
• #10-32 tapped rails
• Black powder coat finish
• Made in the USA
• Limited lifetime warranty
• Wall-mount hardware not included
• Equipment mounting screws not included - see listing below for compatible mounting screws
