1U, 19" or 17" flat panel LCD screen, affordable, space-saver rack-mount KVM console drawers, with a single-port VGA and USB or PS/2 interface
Read more below...

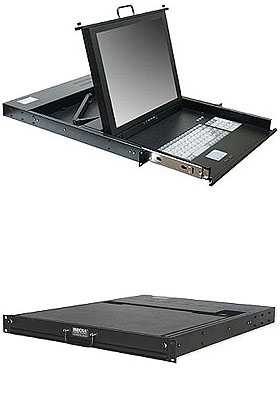

1U rack-mount, 19" or 17" LCD flat-panel USB or PS/2 KVM console drawers
Using only 1U of EIA rack space (1.75" high), Sylphit single-port rack-mount integrated LCD KVM computer consoles are designed to interface with a USB or PS/2 server in a space-saving 19" rack-mount applications.
Sylphit single-port KVM drawers feature a fully functional 105-keys Windows keyboard (including a dedicated numeric keypad), an integrated touch-pad pointing device, and an active TFT LCD flat panel display – protected by anti-glare tempered glass.
Controlling a USB or a PS/2 server, or interfacing with a USB or PS/2 KVM switch at the rack, Sylphit single-port feature a 19" or a 17" laptop-style tilting flat-panel LCD display that requires little pullout to tilt open and – as a result – hardly protrudes into the aisle space in front of the rack.
Equipped with industrial-grade heavy-duty slide-out rails with depth-adjustable rear mounting support, Sylphit single-port KVM drawers can be mounted in any standard 19" 4-post rack available in the market.
A single-port console
Sylphit single-port features a single USB or PS/2 interface typically used to connect to a stand-alone USB or PS/2 KVM switch, or to one USB or PS/2 computer.
Sylphit single-port features a special HD15 connector, and ships with one (1) 6-foot integrated (all-in-one) KVM cable that interfaces with the host's VGA video, USB or PS/2 keyboard and USB mouse.
2-in one USB KVM cables or 3-in-one PS/2 KVM cables, up to 15-feet long, are optionally available.
