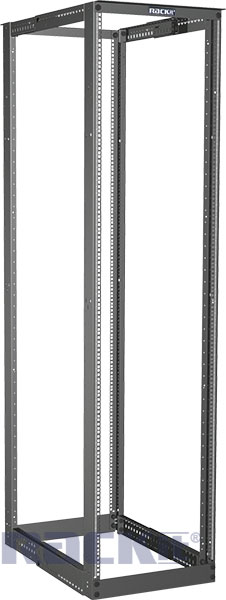

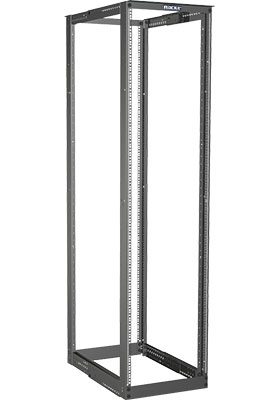

Image 1 of 5 - Servit™ DX supports universal cage-nut mounting (square holes on mounting rails), providing 42U (rack-mount units) of front- and rear-mounting heavy-duty support of 2000 lb of equipment. view

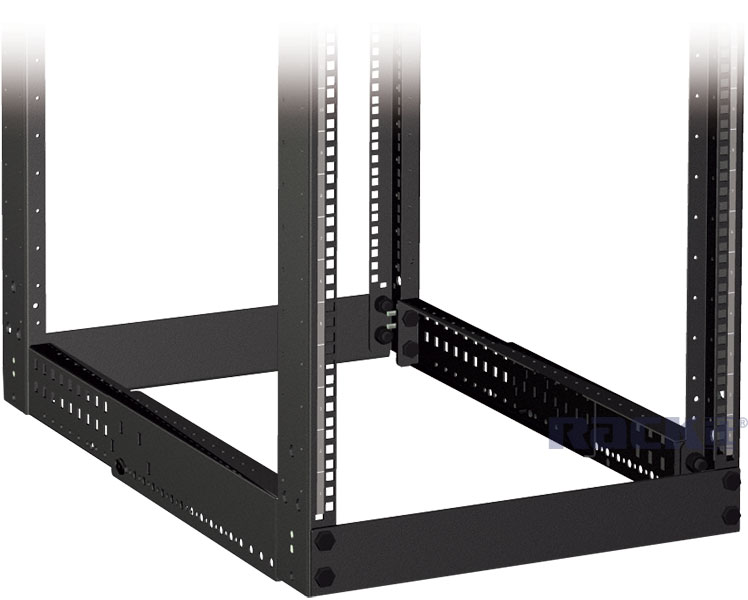

Image 2 of 5 - Utilizing tool-less side rails, Servit™ DX's assembled sections determine the depth of the rack and can be set to any depth from 24" to 36" (in one-inch increments) to match the depth of your equipment. view

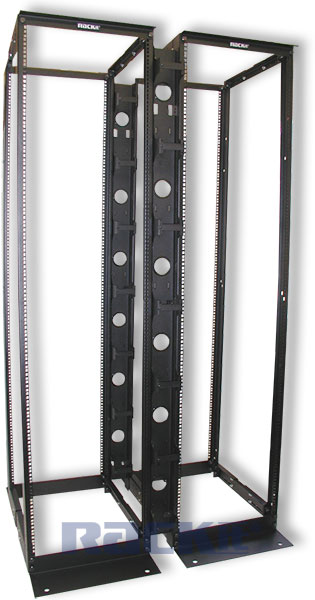

Image 3 of 5 - Two Servit DX are networked (ganged together) with two InterBay 600FB vertical troughs in between the racks (for cable-intensive applications). view

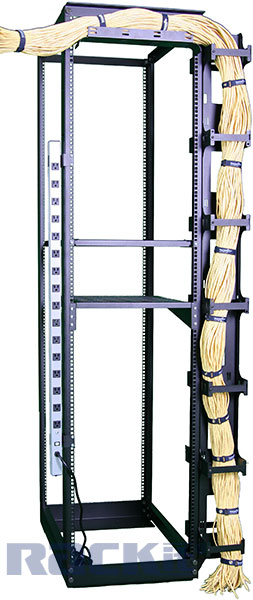

Image 4 of 5 - Servit DX shown with an InterBay 600FB vertical trough mounted on one side of the rack (for cable-intensive applications), and an integrated PDU mounted on the other side of the rack. view

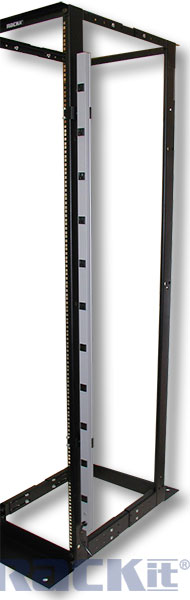

Image 5 of 5 - Servit DX shown with an integrated PDU mounted on the side of the rack. view

Servit DX

Model No. RCT-SRVDX Usually ships within 7 business days or less

Servit DX
Buy this item and earn 1,298 ClubPoints.

RCT-SRVDX: Super-heavy-duty (2000 lb) 4-post open rack with adjustable depth

supporting intensive cable-management applications using InterBay vertical troughs


With a super-heavy-duty construction rated at 2000 lb, Servit™ DX supports universal square holes (for cage-nuts) mounting rails, providing 42U (rack-mount units) of front and rear mounting support for modern rack-mount servers at virtually any depth.

Servit DX utilizes tool-less side rails, an extension bar and cross member piece that get snapped together and firmly secured with a push-button rivet. These assembled sections determine the depth of the rack and can be set (by the user, on-site) to any depth from 24" to 36" (in one-inch increments) to match the depth of your equipment.

With cable-management in mind, Servit DX supports extensive top-to-bottom cable runs by integrating InterBay vertical troughs alongside the rack or in between networked racks. Servit DX's uprights also feature side holes that can accept InterBay 600FB running the entire rail's height, meticulously routing bundled Ethernet cables into the rack.

Servit DX is designed for either stand-alone setup or multiple-racks ganged-together (networked) in a data-center installation. Servit DX can also be networked with Standard Relay Racks and supports integrated PDUs.

Constructed of heavy duty, powder-coated, 12-gauge cold-rolled steel, Servit DX has a weight capacity of 2000 pounds! Vertical uprights feature a mounting pattern on both front and back of the upright. U-Index™ measuring marks on front of all upright rails are included, providing for easy positioning of rack-mounted equipment.Rackit lifetime warranty

With cable-management in mind, Servit DX is designed for either stand-alone setup, or multiple-racks data-center installation
Servit's open design eliminates any ventilation issues, yet allows ganging racks together and easily managing cables and cross-connects.

Inter-bay vertical cable troughs are ideal for handling a mass of data and power cables branching into the rack installation from the ceiling or the raised floor.

Vertical cable-rings and horizontal cable organizers provide for meticulous cable management within the rack.

Sturdy, highly functional open architecture that ships compactly, installs quickly, and supports a 'ton' of equipment
Servit DX supports variable depth, allowing you to adjust the rack-mounting depth (the distance between the front rails and the back rails) in one-inch increments to any depth between 24-36 inches. The tool-less adjustable rails snap into place and get locked in the desirable depth with a rivet.

At 7 feet high, providing 45U of rack-mount space, Servit DX ships with universal mounting rails with square holes, supporting a weight load of 2000 lb, even in a stand-alone setup.

Servit DX ships knocked-down with UPS/FedEx and gets easily assembled on-site requiring only one person. UL listed

Features and Benefits
• Variable depth setup, determined by user on-site, between 24-36 inches in 1-inch increments
• 4-post, front and rear mounting support
• Stand-alone or networked (ganged together) deployment
• Can be networked (ganged together) with Rackit Standard Relay Racks
• Supports floor bolting
• Toe-in or toe-out footprint
• Designed to handle extensive cable management
• Supports universal square holes (for cage-nus)
• 45U
• Uprights are marked with ascending U-Index™ (first U starting at the bottom) for easy rack-mounting
• 12 gauge cold rolled steel construction
• 2000 lb weight capacity
• Ships knocked-down with UPS/FedEx
• Easily and quickly assembled on-site
• Black powder coat finish
• UL listed
• Equipment mounting screws are not included - see listing below for compatible mounting screws
